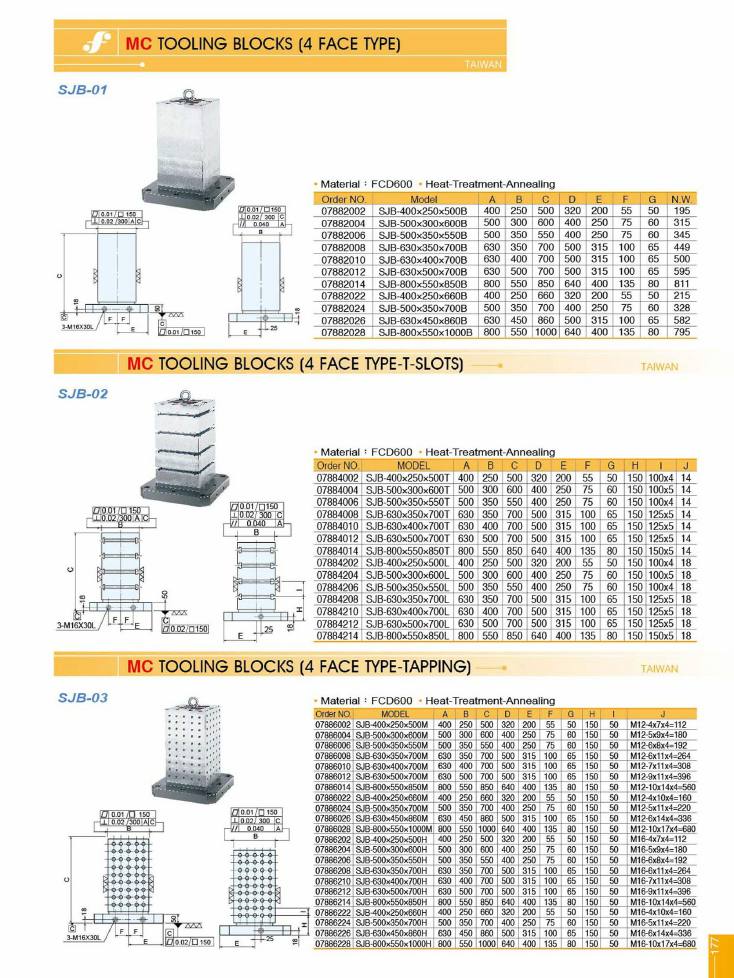

Source Frejoth catalogue page 177 — MC tooling blocks

Open full-size source page

Frejoth accessory catalogue · Page 177

MC tooling blocks

Models on this page

SJB-400x250x500BSJB-400x250x500HSJB-400x250x500LSJB-400x250x500MSJB-400x250x500TSJB-400x250x660BSJB-400x250x660HSJB-400x250x660MSJB-500x300x600BSJB-500x300x600HSJB-500x300x600LSJB-500x300x600MSJB-500x300x600TSJB-500x350x550BSJB-500x350x550HSJB-500x350x550LSJB-500x350x550MSJB-500x350x550TSJB-500x350x700BSJB-500x350x700HSJB-500x350x700MSJB-630x350x700BSJB-630x350x700HSJB-630x350x700LSJB-630x350x700MSJB-630x350x700TSJB-630x400x700BSJB-630x400x700HSJB-630x400x700LSJB-630x400x700MSJB-630x400x700TSJB-630x450x860BSJB-630x450x860HSJB-630x450x860MSJB-630x500x700BSJB-630x500x700HSJB-630x500x700LSJB-630x500x700MSJB-630x500x700TSJB-800x550x1000BSJB-800x550x1000HSJB-800x550x1000MSJB-800x550x850BSJB-800x550x850HSJB-800x550x850LSJB-800x550x850MSJB-800x550x850T

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

MC Tooling Blocks (4 Face Type)

SJB-01 · Taiwan

Material : FCD600
Heat-Treatment-Annealing

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	n_w
07882002	SJB-400x250x500B	400	250	500	320	200	55	50	195
07882004	SJB-500x300x600B	500	300	600	400	250	75	60	315
07882006	SJB-500x350x550B	500	350	550	400	250	75	60	345
07882008	SJB-630x350x700B	630	350	700	500	315	100	65	449
07882010	SJB-630x400x700B	630	400	700	500	315	100	65	500
07882012	SJB-630x500x700B	630	500	700	500	315	100	65	595
07882014	SJB-800x550x850B	800	550	850	640	400	135	80	811
07882022	SJB-400x250x660B	400	250	660	320	200	55	50	215
07882024	SJB-500x350x700B	500	350	700	400	250	75	60	328
07882026	SJB-630x450x860B	630	450	860	500	315	100	65	582
07882028	SJB-800x550x1000B	800	550	1000	640	400	135	80	795

Order references
Code	Model
07882014	SJB-800x550x850B
07882022	SJB-400x250x660B
07882002	SJB-400x250x500B
07882004	SJB-500x300x600B
07882006	SJB-500x350x550B
07882008	SJB-630x350x700B
07882010	SJB-630x400x700B
07882012	SJB-630x500x700B
07882024	SJB-500x350x700B
07882026	SJB-630x450x860B
07882028	SJB-800x550x1000B

Geometric tolerances shown on the drawing: flatness 0.01/□150, perpendicularity 0.02/300 A|C, parallelism 0.040 A. Base fixing 3-M16X30L.

MC Tooling Blocks (4 Face Type - T-Slots)

SJB-02 · Taiwan

Material : FCD600
Heat-Treatment-Annealing

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	h	i	j
07884002	SJB-400x250x500T	400	250	500	320	200	55	50	150	100x4	14
07884004	SJB-500x300x600T	500	300	600	400	250	75	60	150	100x5	14
07884006	SJB-500x350x550T	500	350	550	400	250	75	60	150	100x4	14
07884008	SJB-630x350x700T	630	350	700	500	315	100	65	150	125x5	14
07884010	SJB-630x400x700T	630	400	700	500	315	100	65	150	125x5	14
07884012	SJB-630x500x700T	630	500	700	500	315	100	65	150	125x5	14
07884014	SJB-800x550x850T	800	550	850	640	400	135	80	150	150x5	14
07884202	SJB-400x250x500L	400	250	500	320	200	55	50	150	100x4	18
07884204	SJB-500x300x600L	500	300	600	400	250	75	60	150	100x5	18
07884206	SJB-500x350x550L	500	350	550	400	250	75	60	150	100x4	18
07884208	SJB-630x350x700L	630	350	700	500	315	100	65	150	125x5	18
07884210	SJB-630x400x700L	630	400	700	500	315	100	65	150	125x5	18
07884212	SJB-630x500x700L	630	500	700	500	315	100	65	150	125x5	18
07884214	SJB-800x550x850L	800	550	850	640	400	135	80	150	150x5	18

Order references
Code	Model
07884002	SJB-400x250x500T
07884004	SJB-500x300x600T
07884006	SJB-500x350x550T
07884008	SJB-630x350x700T
07884010	SJB-630x400x700T
07884012	SJB-630x500x700T
07884014	SJB-800x550x850T
07884202	SJB-400x250x500L
07884204	SJB-500x300x600L
07884206	SJB-500x350x550L
07884208	SJB-630x350x700L
07884210	SJB-630x400x700L
07884212	SJB-630x500x700L
07884214	SJB-800x550x850L

Geometric tolerances shown on the drawing: flatness 0.01/□150, perpendicularity 0.02/300 A|C, parallelism 0.040 A, 0.02/□150. Base fixing 3-M16X30L. T-slot suffix T (J=14) or L (J=18).

MC Tooling Blocks (4 Face Type - Tapping)

SJB-03 · Taiwan

Material : FCD600
Heat-Treatment-Annealing

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	h	i	j
07886002	SJB-400x250x500M	400	250	500	320	200	55	50	150	50	M12-4x7x4=112
07886004	SJB-500x300x600M	500	300	600	400	250	75	60	150	50	M12-5x9x4=180
07886006	SJB-500x350x550M	500	350	550	400	250	75	60	150	50	M12-6x8x4=192
07886008	SJB-630x350x700M	630	350	700	500	315	100	65	150	50	M12-6x11x4=264
07886010	SJB-630x400x700M	630	400	700	500	315	100	65	150	50	M12-7x11x4=308
07886012	SJB-630x500x700M	630	500	700	500	315	100	65	150	50	M12-9x11x4=396
07886014	SJB-800x550x850M	800	550	850	640	400	135	80	150	50	M12-10x14x4=560
07886022	SJB-400x250x660M	400	250	660	320	200	55	50	150	50	M12-4x10x4=160
07886024	SJB-500x350x700M	500	350	700	400	250	75	60	150	50	M12-5x11x4=220
07886026	SJB-630x450x860M	630	450	860	500	315	100	65	150	50	M12-6x14x4=336
07886028	SJB-800x550x1000M	800	550	1000	640	400	135	80	150	50	M12-10x17x4=680
07886202	SJB-400x250x500H	400	250	500	320	200	55	50	150	50	M16-4x7x4=112
07886204	SJB-500x300x600H	500	300	600	400	250	75	60	150	50	M16-5x9x4=180
07886206	SJB-500x350x550H	500	350	550	400	250	75	60	150	50	M16-6x8x4=192
07886208	SJB-630x350x700H	630	350	700	500	315	100	65	150	50	M16-6x11x4=264
07886210	SJB-630x400x700H	630	400	700	500	315	100	65	150	50	M16-7x11x4=308
07886212	SJB-630x500x700H	630	500	700	500	315	100	65	150	50	M16-9x11x4=396
07886214	SJB-800x550x850H	800	550	850	640	400	135	80	150	50	M16-10x14x4=560
07886222	SJB-400x250x660H	400	250	660	320	200	55	50	150	50	M16-4x10x4=160
07886224	SJB-500x350x700H	500	350	700	400	250	75	60	150	50	M16-5x11x4=220
07886226	SJB-630x450x860H	630	450	860	500	315	100	65	150	50	M16-6x14x4=336
07886228	SJB-800x550x1000H	800	550	1000	640	400	135	80	150	50	M16-10x17x4=680

Order references
Code	Model
07886002	SJB-400x250x500M
07886004	SJB-500x300x600M
07886006	SJB-500x350x550M
07886008	SJB-630x350x700M
07886010	SJB-630x400x700M
07886012	SJB-630x500x700M
07886014	SJB-800x550x850M
07886022	SJB-400x250x660M
07886024	SJB-500x350x700M
07886026	SJB-630x450x860M
07886028	SJB-800x550x1000M
07886202	SJB-400x250x500H
07886204	SJB-500x300x600H
07886206	SJB-500x350x550H
07886208	SJB-630x350x700H
07886210	SJB-630x400x700H
07886212	SJB-630x500x700H
07886214	SJB-800x550x850H
07886222	SJB-400x250x660H
07886224	SJB-500x350x700H
07886226	SJB-630x450x860H
07886228	SJB-800x550x1000H

Geometric tolerances shown on the drawing: flatness 0.01/□150, perpendicularity 0.02/300 A|C, parallelism 0.040 A, 0.02/□150. Base fixing 3-M16X30L. Suffix M = M12 tapping, H = M16 tapping; column J gives thread size and hole count per face x faces = total.
