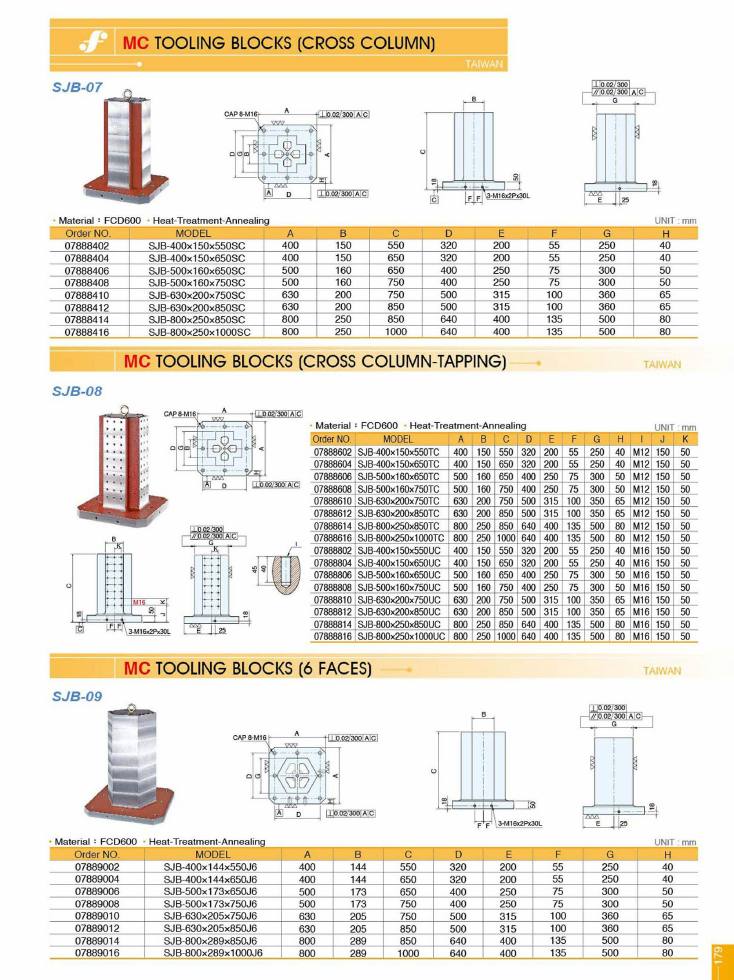

MC tooling blocks

Models on this page

SJB-400x144x550J6SJB-400x144x650J6SJB-400x150x550SCSJB-400x150x550TCSJB-400x150x550UCSJB-400x150x650SCSJB-400x150x650TCSJB-400x150x650UCSJB-500x160x650SCSJB-500x160x650TCSJB-500x160x650UCSJB-500x160x750SCSJB-500x160x750TCSJB-500x160x750UCSJB-500x173x650J6SJB-500x173x750J6SJB-630x200x750SCSJB-630x200x750TCSJB-630x200x750UCSJB-630x200x850SCSJB-630x200x850TCSJB-630x200x850UCSJB-630x205x750J6SJB-630x205x850J6SJB-800x250x1000SCSJB-800x250x1000TCSJB-800x250x1000UCSJB-800x250x850SCSJB-800x250x850TCSJB-800x250x850UCSJB-800x289x1000J6SJB-800x289x850J6

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

MC Tooling Blocks (Cross Column)

SJB-07 · Taiwan

Material : FCD600
Heat-Treatment-Annealing

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	h
07888402	SJB-400x150x550SC	400	150	550	320	200	55	250	40
07888404	SJB-400x150x650SC	400	150	650	320	200	55	250	40
07888406	SJB-500x160x650SC	500	160	650	400	250	75	300	50
07888408	SJB-500x160x750SC	500	160	750	400	250	75	300	50
07888410	SJB-630x200x750SC	630	200	750	500	315	100	360	65
07888412	SJB-630x200x850SC	630	200	850	500	315	100	360	65
07888414	SJB-800x250x850SC	800	250	850	640	400	135	500	80
07888416	SJB-800x250x1000SC	800	250	1000	640	400	135	500	80

Order references
Code	Model
07888406	SJB-500x160x650SC
07888402	SJB-400x150x550SC
07888404	SJB-400x150x650SC
07888408	SJB-500x160x750SC
07888410	SJB-630x200x750SC
07888412	SJB-630x200x850SC
07888414	SJB-800x250x850SC
07888416	SJB-800x250x1000SC

Drawing notes: CAP 8-M16, base fixing 3-M16x2Px30L, perpendicularity 0.02/300 A|C, parallelism 0.02/300 A|C.

MC Tooling Blocks (Cross Column - Tapping)

SJB-08 · Taiwan

Material : FCD600
Heat-Treatment-Annealing

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	h	i	j	k
07888602	SJB-400x150x550TC	400	150	550	320	200	55	250	40	M12	150	50
07888604	SJB-400x150x650TC	400	150	650	320	200	55	250	40	M12	150	50
07888606	SJB-500x160x650TC	500	160	650	400	250	75	300	50	M12	150	50
07888608	SJB-500x160x750TC	500	160	750	400	250	75	300	50	M12	150	50
07888610	SJB-630x200x750TC	630	200	750	500	315	100	350	65	M12	150	50
07888612	SJB-630x200x850TC	630	200	850	500	315	100	350	65	M12	150	50
07888614	SJB-800x250x850TC	800	250	850	640	400	135	500	80	M12	150	50
07888616	SJB-800x250x1000TC	800	250	1000	640	400	135	500	80	M12	150	50
07888802	SJB-400x150x550UC	400	150	550	320	200	55	250	40	M16	150	50
07888804	SJB-400x150x650UC	400	150	650	320	200	55	250	40	M16	150	50
07888806	SJB-500x160x650UC	500	160	650	400	250	75	300	50	M16	150	50
07888808	SJB-500x160x750UC	500	160	750	400	250	75	300	50	M16	150	50
07888810	SJB-630x200x750UC	630	200	750	500	315	100	350	65	M16	150	50
07888812	SJB-630x200x850UC	630	200	850	500	315	100	350	65	M16	150	50
07888814	SJB-800x250x850UC	800	250	850	640	400	135	500	80	M16	150	50
07888816	SJB-800x250x1000UC	800	250	1000	640	400	135	500	80	M16	150	50

Order references
Code	Model
07888602	SJB-400x150x550TC
07888604	SJB-400x150x650TC
07888606	SJB-500x160x650TC
07888608	SJB-500x160x750TC
07888610	SJB-630x200x750TC
07888612	SJB-630x200x850TC
07888614	SJB-800x250x850TC
07888616	SJB-800x250x1000TC
07888802	SJB-400x150x550UC
07888804	SJB-400x150x650UC
07888806	SJB-500x160x650UC
07888808	SJB-500x160x750UC
07888810	SJB-630x200x750UC
07888812	SJB-630x200x850UC
07888814	SJB-800x250x850UC
07888816	SJB-800x250x1000UC

Drawing notes: CAP 8-M16, base fixing 3-M16x2Px30L, tapped holes M16 shown on the column, perpendicularity 0.02/300 A|C, parallelism 0.02/300 A|C. Suffix TC = M12 tapping, UC = M16 tapping (column I).

MC Tooling Blocks (6 Faces)

SJB-09 · Taiwan

Material : FCD600
Heat-Treatment-Annealing

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	h
07889002	SJB-400x144x550J6	400	144	550	320	200	55	250	40
07889004	SJB-400x144x650J6	400	144	650	320	200	55	250	40
07889006	SJB-500x173x650J6	500	173	650	400	250	75	300	50
07889008	SJB-500x173x750J6	500	173	750	400	250	75	300	50
07889010	SJB-630x205x750J6	630	205	750	500	315	100	360	65
07889012	SJB-630x205x850J6	630	205	850	500	315	100	360	65
07889014	SJB-800x289x850J6	800	289	850	640	400	135	500	80
07889016	SJB-800x289x1000J6	800	289	1000	640	400	135	500	80

Order references
Code	Model
07889002	SJB-400x144x550J6
07889004	SJB-400x144x650J6
07889006	SJB-500x173x650J6
07889008	SJB-500x173x750J6
07889010	SJB-630x205x750J6
07889012	SJB-630x205x850J6
07889014	SJB-800x289x850J6
07889016	SJB-800x289x1000J6

Drawing notes: CAP 8-M16, base fixing 3-M16x2Px30L, perpendicularity 0.02/300 A|C, parallelism 0.02/300 A|C. Hexagonal 6-face column.
