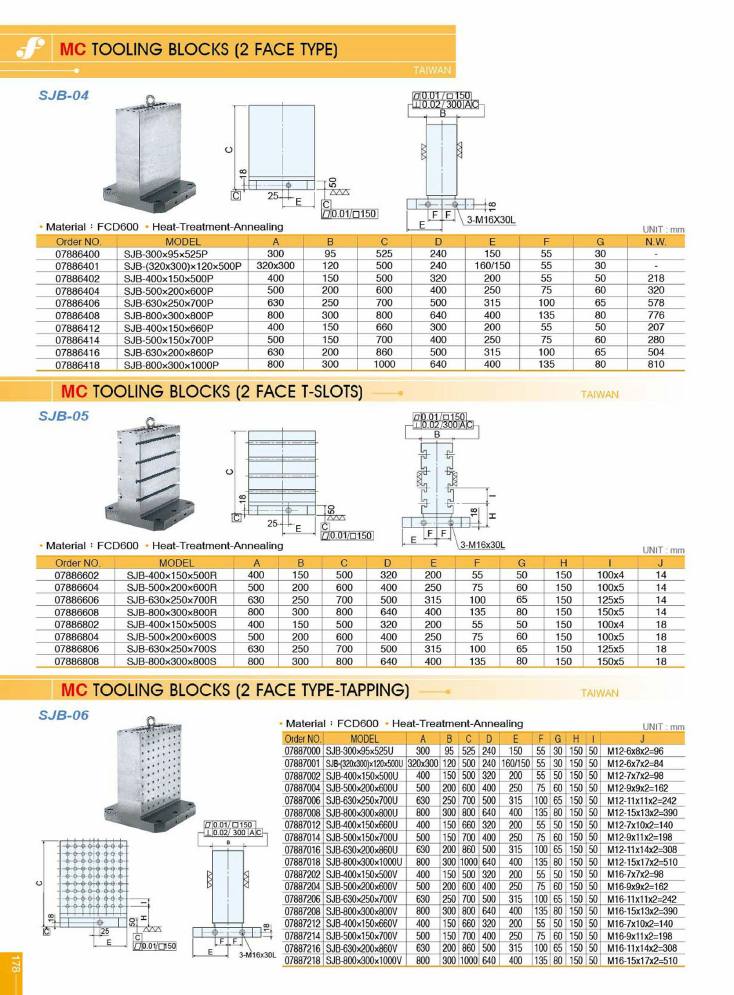

Source Frejoth catalogue page 178 — MC Tooling Blocks (2 Face Type)

Open full-size source page

Frejoth accessory catalogue · Page 178

MC Tooling Blocks (2 Face Type)

Models on this page

SJB-(320x300)x120x500PSJB-(320x300)x120x500USJB-300x95x525PSJB-300x95x525USJB-400x150x500PSJB-400x150x500RSJB-400x150x500SSJB-400x150x500USJB-400x150x500VSJB-400x150x660PSJB-400x150x660USJB-400x150x660VSJB-500x150x700PSJB-500x150x700USJB-500x150x700VSJB-500x200x600PSJB-500x200x600RSJB-500x200x600SSJB-500x200x600USJB-500x200x600VSJB-630x200x860PSJB-630x200x860USJB-630x200x860VSJB-630x250x700PSJB-630x250x700RSJB-630x250x700SSJB-630x250x700USJB-630x250x700VSJB-800x300x1000PSJB-800x300x1000USJB-800x300x1000VSJB-800x300x800PSJB-800x300x800RSJB-800x300x800SSJB-800x300x800USJB-800x300x800V

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

MC Tooling Blocks (2 Face Type)

SJB-04 · Taiwan

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	n_w
07886400	SJB-300x95x525P	300	95	525	240	150	55	30	—
07886401	SJB-(320x300)x120x500P	320x300	120	500	240	160/150	55	30	—
07886402	SJB-400x150x500P	400	150	500	320	200	55	50	218
07886404	SJB-500x200x600P	500	200	600	400	250	75	60	320
07886406	SJB-630x250x700P	630	250	700	500	315	100	65	578
07886408	SJB-800x300x800P	800	300	800	640	400	135	80	776
07886412	SJB-400x150x660P	400	150	660	300	200	55	50	207
07886414	SJB-500x150x700P	500	150	700	400	250	75	60	280
07886416	SJB-630x200x860P	630	200	860	500	315	100	65	504
07886418	SJB-800x300x1000P	800	300	1000	640	400	135	80	810

Order references
Code	Model
07886400	SJB-300x95x525P
07886401	SJB-(320x300)x120x500P
07886402	SJB-400x150x500P
07886404	SJB-500x200x600P
07886406	SJB-630x250x700P
07886408	SJB-800x300x800P
07886412	SJB-400x150x660P
07886414	SJB-500x150x700P
07886416	SJB-630x200x860P
07886418	SJB-800x300x1000P

Material: FCD600. Heat-Treatment-Annealing. Base fixing 3-M16x30L. Geometric tolerance callouts on the drawings: 0.01/150 and 0.02/300 A|C.

MC Tooling Blocks (2 Face T-Slots)

SJB-05 · Taiwan

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	h	i	j
07886602	SJB-400x150x500R	400	150	500	320	200	55	50	150	100x4	14
07886604	SJB-500x200x600R	500	200	600	400	250	75	60	150	100x5	14
07886606	SJB-630x250x700R	630	250	700	500	315	100	65	150	125x5	14
07886608	SJB-800x300x800R	800	300	800	640	400	135	80	150	150x5	14
07886802	SJB-400x150x500S	400	150	500	320	200	55	50	150	100x4	18
07886804	SJB-500x200x600S	500	200	600	400	250	75	60	150	100x5	18
07886806	SJB-630x250x700S	630	250	700	500	315	100	65	150	125x5	18
07886808	SJB-800x300x800S	800	300	800	640	400	135	80	150	150x5	18

Order references
Code	Model
07886602	SJB-400x150x500R
07886604	SJB-500x200x600R
07886606	SJB-630x250x700R
07886608	SJB-800x300x800R
07886802	SJB-400x150x500S
07886804	SJB-500x200x600S
07886806	SJB-630x250x700S
07886808	SJB-800x300x800S

Material: FCD600. Heat-Treatment-Annealing. Base fixing 3-M16x30L. Geometric tolerance callouts on the drawings: 0.01/150 and 0.02/300 A|C.

MC Tooling Blocks (2 Face Type-Tapping)

SJB-06 · Taiwan

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	h	i	j
07887000	SJB-300x95x525U	300	95	525	240	150	55	30	150	50	M12-6x8x2=96
07887001	SJB-(320x300)x120x500U	320x300	120	500	240	160/150	55	30	150	50	M12-6x7x2=84
07887002	SJB-400x150x500U	400	150	500	320	200	55	50	150	50	M12-7x7x2=98
07887004	SJB-500x200x600U	500	200	600	400	250	75	60	150	50	M12-9x9x2=162
07887006	SJB-630x250x700U	630	250	700	500	315	100	65	150	50	M12-11x11x2=242
07887008	SJB-800x300x800U	800	300	800	640	400	135	80	150	50	M12-15x13x2=390
07887012	SJB-400x150x660U	400	150	660	320	200	55	50	150	50	M12-7x10x2=140
07887014	SJB-500x150x700U	500	150	700	400	250	75	60	150	50	M12-9x11x2=198
07887016	SJB-630x200x860U	630	200	860	500	315	100	65	150	50	M12-11x14x2=308
07887018	SJB-800x300x1000U	800	300	1000	640	400	135	80	150	50	M12-15x17x2=510
07887202	SJB-400x150x500V	400	150	500	320	200	55	50	150	50	M16-7x7x2=98
07887204	SJB-500x200x600V	500	200	600	400	250	75	60	150	50	M16-9x9x2=162
07887206	SJB-630x250x700V	630	250	700	500	315	100	65	150	50	M16-11x11x2=242
07887208	SJB-800x300x800V	800	300	800	640	400	135	80	150	50	M16-15x13x2=390
07887212	SJB-400x150x660V	400	150	660	320	200	55	50	150	50	M16-7x10x2=140
07887214	SJB-500x150x700V	500	150	700	400	250	75	60	150	50	M16-9x11x2=198
07887216	SJB-630x200x860V	630	200	860	500	315	100	65	150	50	M16-11x14x2=308
07887218	SJB-800x300x1000V	800	300	1000	640	400	135	80	150	50	M16-15x17x2=510

Order references
Code	Model
07887000	SJB-300x95x525U
07887001	SJB-(320x300)x120x500U
07887002	SJB-400x150x500U
07887004	SJB-500x200x600U
07887006	SJB-630x250x700U
07887008	SJB-800x300x800U
07887012	SJB-400x150x660U
07887014	SJB-500x150x700U
07887016	SJB-630x200x860U
07887018	SJB-800x300x1000U
07887202	SJB-400x150x500V
07887204	SJB-500x200x600V
07887206	SJB-630x250x700V
07887208	SJB-800x300x800V
07887212	SJB-400x150x660V
07887214	SJB-500x150x700V
07887216	SJB-630x200x860V
07887218	SJB-800x300x1000V

Material: FCD600. Heat-Treatment-Annealing. Base fixing 3-M16x30L. Geometric tolerance callouts on the drawings: 0.01/150 and 0.02/300 A|C.
