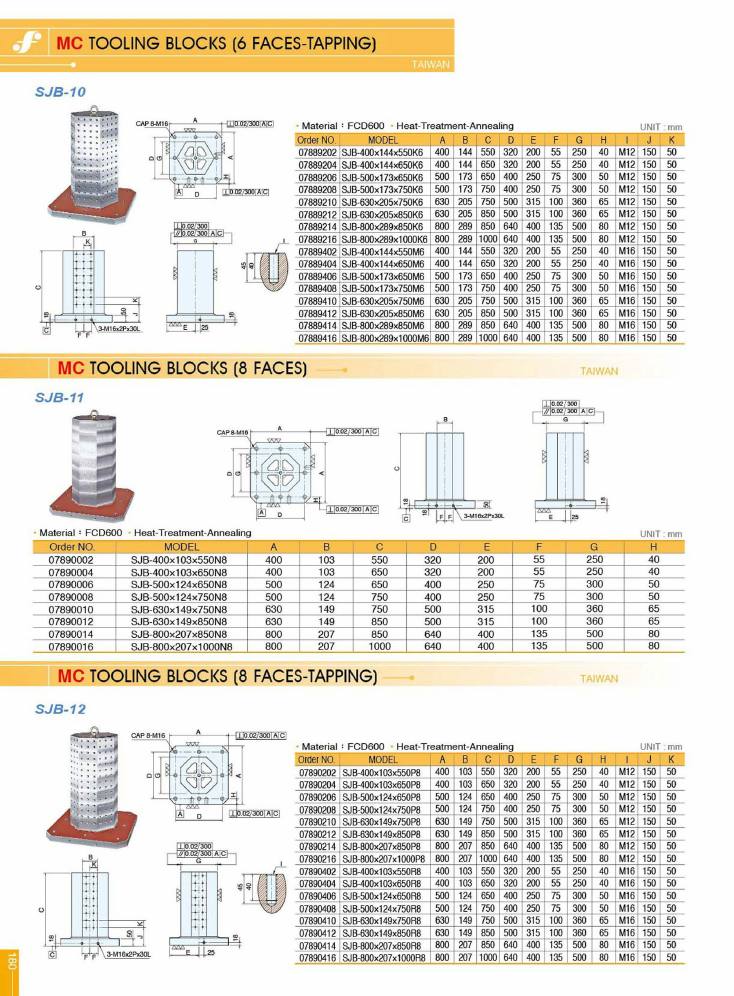

MC tooling blocks

Models on this page

SJB-400x103x550N8SJB-400x103x550P8SJB-400x103x550R8SJB-400x103x650N8SJB-400x103x650P8SJB-400x103x650R8SJB-400x144x550K6SJB-400x144x550M6SJB-400x144x650K6SJB-400x144x650M6SJB-500x124x650N8SJB-500x124x650P8SJB-500x124x650R8SJB-500x124x750N8SJB-500x124x750P8SJB-500x124x750R8SJB-500x173x650K6SJB-500x173x650M6SJB-500x173x750K6SJB-500x173x750M6SJB-630x149x750N8SJB-630x149x750P8SJB-630x149x750R8SJB-630x149x850N8SJB-630x149x850P8SJB-630x149x850R8SJB-630x205x750K6SJB-630x205x750M6SJB-630x205x850K6SJB-630x205x850M6SJB-800x207x1000N8SJB-800x207x1000P8SJB-800x207x1000R8SJB-800x207x850N8SJB-800x207x850P8SJB-800x207x850R8SJB-800x289x1000K6SJB-800x289x1000M6SJB-800x289x850K6SJB-800x289x850M6

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

MC Tooling Blocks (6 Faces - Tapping)

SJB-10 · Taiwan

Material : FCD600
Heat-Treatment-Annealing

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	h	i	j	k
07889202	SJB-400x144x550K6	400	144	550	320	200	55	250	40	M12	150	50
07889204	SJB-400x144x650K6	400	144	650	320	200	55	250	40	M12	150	50
07889206	SJB-500x173x650K6	500	173	650	400	250	75	300	50	M12	150	50
07889208	SJB-500x173x750K6	500	173	750	400	250	75	300	50	M12	150	50
07889210	SJB-630x205x750K6	630	205	750	500	315	100	360	65	M12	150	50
07889212	SJB-630x205x850K6	630	205	850	500	315	100	360	65	M12	150	50
07889214	SJB-800x289x850K6	800	289	850	640	400	135	500	80	M12	150	50
07889216	SJB-800x289x1000K6	800	289	1000	640	400	135	500	80	M12	150	50
07889402	SJB-400x144x550M6	400	144	550	320	200	55	250	40	M16	150	50
07889404	SJB-400x144x650M6	400	144	650	320	200	55	250	40	M16	150	50
07889406	SJB-500x173x650M6	500	173	650	400	250	75	300	50	M16	150	50
07889408	SJB-500x173x750M6	500	173	750	400	250	75	300	50	M16	150	50
07889410	SJB-630x205x750M6	630	205	750	500	315	100	360	65	M16	150	50
07889412	SJB-630x205x850M6	630	205	850	500	315	100	360	65	M16	150	50
07889414	SJB-800x289x850M6	800	289	850	640	400	135	500	80	M16	150	50
07889416	SJB-800x289x1000M6	800	289	1000	640	400	135	500	80	M16	150	50

Order references
Code	Model
07889202	SJB-400x144x550K6
07889204	SJB-400x144x650K6
07889206	SJB-500x173x650K6
07889208	SJB-500x173x750K6
07889210	SJB-630x205x750K6
07889212	SJB-630x205x850K6
07889214	SJB-800x289x850K6
07889216	SJB-800x289x1000K6
07889402	SJB-400x144x550M6
07889404	SJB-400x144x650M6
07889406	SJB-500x173x650M6
07889408	SJB-500x173x750M6
07889410	SJB-630x205x750M6
07889412	SJB-630x205x850M6
07889414	SJB-800x289x850M6
07889416	SJB-800x289x1000M6

Drawing notes: CAP 8-M16, base fixing 3-M16x2Px30L, perpendicularity 0.02/300 A|C, parallelism 0.02/300 A|C. Tapped-hole detail shows 45/40 depth. Suffix K6 = M12 tapping, M6 = M16 tapping (column I).

MC Tooling Blocks (8 Faces)

SJB-11 · Taiwan

Material : FCD600
Heat-Treatment-Annealing

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	h
07890002	SJB-400x103x550N8	400	103	550	320	200	55	250	40
07890004	SJB-400x103x650N8	400	103	650	320	200	55	250	40
07890006	SJB-500x124x650N8	500	124	650	400	250	75	300	50
07890008	SJB-500x124x750N8	500	124	750	400	250	75	300	50
07890010	SJB-630x149x750N8	630	149	750	500	315	100	360	65
07890012	SJB-630x149x850N8	630	149	850	500	315	100	360	65
07890014	SJB-800x207x850N8	800	207	850	640	400	135	500	80
07890016	SJB-800x207x1000N8	800	207	1000	640	400	135	500	80

Order references
Code	Model
07890002	SJB-400x103x550N8
07890004	SJB-400x103x650N8
07890006	SJB-500x124x650N8
07890008	SJB-500x124x750N8
07890010	SJB-630x149x750N8
07890012	SJB-630x149x850N8
07890014	SJB-800x207x850N8
07890016	SJB-800x207x1000N8

Drawing notes: CAP 8-M16, base fixing 3-M16x2Px30L, perpendicularity 0.02/300 A|C, parallelism 0.02/300 A|C. Octagonal 8-face column, suffix N8.

MC Tooling Blocks (8 Faces - Tapping)

SJB-12 · Taiwan

Material : FCD600
Heat-Treatment-Annealing

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	h	i	j	k
07890202	SJB-400x103x550P8	400	103	550	320	200	55	250	40	M12	150	50
07890204	SJB-400x103x650P8	400	103	650	320	200	55	250	40	M12	150	50
07890206	SJB-500x124x650P8	500	124	650	400	250	75	300	50	M12	150	50
07890208	SJB-500x124x750P8	500	124	750	400	250	75	300	50	M12	150	50
07890210	SJB-630x149x750P8	630	149	750	500	315	100	360	65	M12	150	50
07890212	SJB-630x149x850P8	630	149	850	500	315	100	360	65	M12	150	50
07890214	SJB-800x207x850P8	800	207	850	640	400	135	500	80	M12	150	50
07890216	SJB-800x207x1000P8	800	207	1000	640	400	135	500	80	M12	150	50
07890402	SJB-400x103x550R8	400	103	550	320	200	55	250	40	M16	150	50
07890404	SJB-400x103x650R8	400	103	650	320	200	55	250	40	M16	150	50
07890406	SJB-500x124x650R8	500	124	650	400	250	75	300	50	M16	150	50
07890408	SJB-500x124x750R8	500	124	750	400	250	75	300	50	M16	150	50
07890410	SJB-630x149x750R8	630	149	750	500	315	100	360	65	M16	150	50
07890412	SJB-630x149x850R8	630	149	850	500	315	100	360	65	M16	150	50
07890414	SJB-800x207x850R8	800	207	850	640	400	135	500	80	M16	150	50
07890416	SJB-800x207x1000R8	800	207	1000	640	400	135	500	80	M16	150	50

Order references
Code	Model
07890202	SJB-400x103x550P8
07890204	SJB-400x103x650P8
07890206	SJB-500x124x650P8
07890208	SJB-500x124x750P8
07890210	SJB-630x149x750P8
07890212	SJB-630x149x850P8
07890214	SJB-800x207x850P8
07890216	SJB-800x207x1000P8
07890402	SJB-400x103x550R8
07890404	SJB-400x103x650R8
07890406	SJB-500x124x650R8
07890408	SJB-500x124x750R8
07890410	SJB-630x149x750R8
07890412	SJB-630x149x850R8
07890414	SJB-800x207x850R8
07890416	SJB-800x207x1000R8

Drawing notes: CAP 8-M16, base fixing 3-M16x2Px30L, perpendicularity 0.02/300 A|C, parallelism 0.02/300 A|C. Tapped-hole detail shows 45/40 depth. Suffix P8 = M12 tapping, R8 = M16 tapping (column I).
