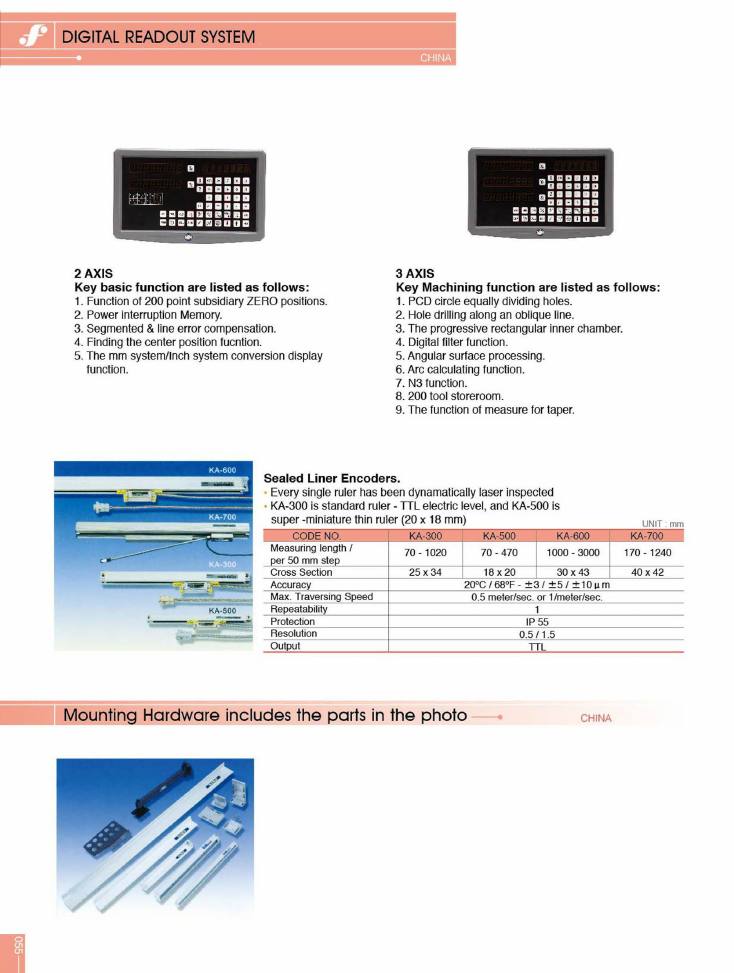

Digital Readout System
China
- 2 AXIS — Key basic function are listed as follows:
- 2 AXIS 1. Function of 200 point subsidiary ZERO positions.
- 2 AXIS 2. Power interruption Memory.
- 2 AXIS 3. Segmented & line error compensation.
- 2 AXIS 4. Finding the center position fucntion.
- 2 AXIS 5. The mm system/Inch system conversion display function.
- 3 AXIS — Key Machining function are listed as follows:
- 3 AXIS 1. PCD circle equally dividing holes.
- 3 AXIS 2. Hole drilling along an oblique line.
- 3 AXIS 3. The progressive rectangular inner chamber.
- 3 AXIS 4. Digital filter function.
- 3 AXIS 5. Angular surface processing.
- 3 AXIS 6. Arc calculating function.
- 3 AXIS 7. N3 function.
- 3 AXIS 8. 200 tool storeroom.
- 3 AXIS 9. The function of measure for taper.
Available as 2 axis and 3 axis display units.
Sealed Liner Encoders
China
- Every single ruler has been dynamatically laser inspected
- KA-300 is standard ruler - TTL electric level, and KA-500 is super-miniature thin ruler (20 x 18 mm)
| specification | ka_300 | ka_500 | ka_600 | ka_700 |
|---|---|---|---|---|
| measuring_length_per_50_mm_step | 70 - 1020 | 70 - 470 | 1000 - 3000 | 170 - 1240 |
| cross_section | 25 x 34 | 18 x 20 | 30 x 43 | 40 x 42 |
| accuracy | 20°C / 68°F - ±3 / ±5 / ±10 µm | 20°C / 68°F - ±3 / ±5 / ±10 µm | 20°C / 68°F - ±3 / ±5 / ±10 µm | 20°C / 68°F - ±3 / ±5 / ±10 µm |
| max_traversing_speed | 0.5 meter/sec. or 1/meter/sec. | 0.5 meter/sec. or 1/meter/sec. | 0.5 meter/sec. or 1/meter/sec. | 0.5 meter/sec. or 1/meter/sec. |
| repeatability | 1 | 1 | 1 | 1 |
| protection | IP 55 | IP 55 | IP 55 | IP 55 |
| resolution | 0.5 / 1.5 | 0.5 / 1.5 | 0.5 / 1.5 | 0.5 / 1.5 |
| output | TTL | TTL | TTL | TTL |
| Code | Model |
|---|---|
| KA-300 | KA-300 |
| KA-500 | KA-500 |
| KA-600 | KA-600 |
| KA-700 | KA-700 |
Mounting Hardware includes the parts in the photo
China
Photo spread only — no part codes or specification table printed for the mounting hardware.
