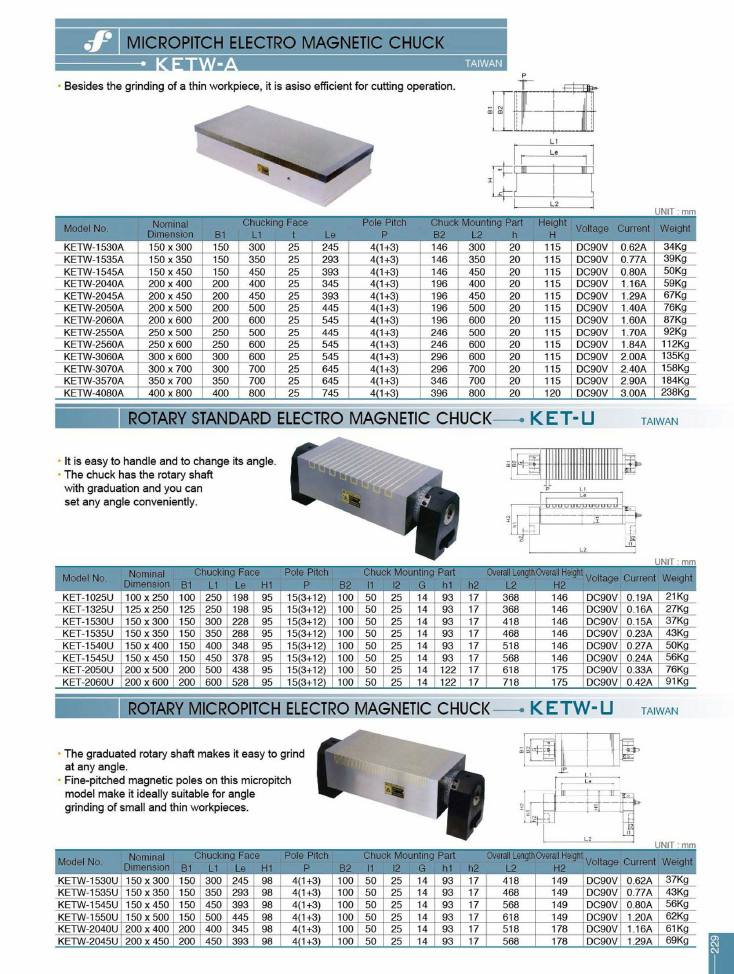

Frejoth accessory catalogue · Page 232

MICROPITCH ELECTRO MAGNETIC CHUCK

Models on this page

KET-1025UKET-1325UKET-1530UKET-1535UKET-1540UKET-1545UKET-2050UKET-2060UKETW-1530AKETW-1530UKETW-1535AKETW-1535UKETW-1545AKETW-1545UKETW-1550UKETW-2040AKETW-2040UKETW-2045AKETW-2045UKETW-2050AKETW-2060AKETW-2550AKETW-2560AKETW-3060AKETW-3070AKETW-3570AKETW-4080A

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

MICROPITCH ELECTRO MAGNETIC CHUCK

KETW-A · TAIWAN

Besides the grinding of a thin workpiece, it is asiso efficient for cutting operation.

specifications (mm)
model_no	nominal_dimension	b1	l1	t	le	p	b2	l2	h	height_h	voltage	current	weight
KETW-1530A	150 x 300	150	300	25	245	4(1+3)	146	300	20	115	DC90V	0.62A	34Kg
KETW-1535A	150 x 350	150	350	25	293	4(1+3)	146	350	20	115	DC90V	0.77A	39Kg
KETW-1545A	150 x 450	150	450	25	393	4(1+3)	146	450	20	115	DC90V	0.80A	50Kg
KETW-2040A	200 x 400	200	400	25	345	4(1+3)	196	400	20	115	DC90V	1.16A	59Kg
KETW-2045A	200 x 450	200	450	25	393	4(1+3)	196	450	20	115	DC90V	1.29A	67Kg
KETW-2050A	200 x 500	200	500	25	445	4(1+3)	196	500	20	115	DC90V	1.40A	76Kg
KETW-2060A	200 x 600	200	600	25	545	4(1+3)	196	600	20	115	DC90V	1.60A	87Kg
KETW-2550A	250 x 500	250	500	25	445	4(1+3)	246	500	20	115	DC90V	1.70A	92Kg
KETW-2560A	250 x 600	250	600	25	545	4(1+3)	246	600	20	115	DC90V	1.84A	112Kg
KETW-3060A	300 x 600	300	600	25	545	4(1+3)	296	600	20	115	DC90V	2.00A	135Kg
KETW-3070A	300 x 700	300	700	25	645	4(1+3)	296	700	20	115	DC90V	2.40A	158Kg
KETW-3570A	350 x 700	350	700	25	645	4(1+3)	346	700	20	115	DC90V	2.90A	184Kg
KETW-4080A	400 x 800	400	800	25	745	4(1+3)	396	800	20	120	DC90V	3.00A	238Kg

Order references
Code	Model
on request	KETW-1530A
on request	KETW-1535A
on request	KETW-1545A
on request	KETW-2040A
on request	KETW-2045A
on request	KETW-2050A
on request	KETW-2060A
on request	KETW-2550A
on request	KETW-2560A
on request	KETW-3060A
on request	KETW-3070A
on request	KETW-3570A
on request	KETW-4080A

ROTARY STANDARD ELECTRO MAGNETIC CHUCK

KET-U · TAIWAN

It is easy to handle and to change its angle.
The chuck has the rotary shaft with graduation and you can set any angle conveniently.

specifications (mm)
model_no	nominal_dimension	b1	l1	le	h1	p	b2	i1	i2	g	h1_stand	h2	overall_length_l2	overall_height_h2	voltage	current	weight
KET-1025U	100 x 250	100	250	198	95	15(3+12)	100	50	25	14	93	17	368	146	DC90V	0.19A	21Kg
KET-1325U	125 x 250	125	250	198	95	15(3+12)	100	50	25	14	93	17	368	146	DC90V	0.16A	27Kg
KET-1530U	150 x 300	150	300	228	95	15(3+12)	100	50	25	14	93	17	418	146	DC90V	0.15A	37Kg
KET-1535U	150 x 350	150	350	288	95	15(3+12)	100	50	25	14	93	17	468	146	DC90V	0.23A	43Kg
KET-1540U	150 x 400	150	400	348	95	15(3+12)	100	50	25	14	93	17	518	146	DC90V	0.27A	50Kg
KET-1545U	150 x 450	150	450	378	95	15(3+12)	100	50	25	14	93	17	568	146	DC90V	0.24A	56Kg
KET-2050U	200 x 500	200	500	438	95	15(3+12)	100	50	25	14	122	17	618	175	DC90V	0.33A	76Kg
KET-2060U	200 x 600	200	600	528	95	15(3+12)	100	50	25	14	122	17	718	175	DC90V	0.42A	91Kg

Order references
Code	Model
on request	KET-1025U
on request	KET-1325U
on request	KET-1530U
on request	KET-1535U
on request	KET-1540U
on request	KET-1545U
on request	KET-2050U
on request	KET-2060U

ROTARY MICROPITCH ELECTRO MAGNETIC CHUCK

KETW-U · TAIWAN

The graduated rotary shaft makes it easy to grind at any angle.
Fine-pitched magnetic poles on this micropitch model make it ideally suitable for angle grinding of small and thin workpieces.

specifications (mm)
model_no	nominal_dimension	b1	l1	le	h1	p	b2	i1	i2	g	h1_stand	h2	overall_length_l2	overall_height_h2	voltage	current	weight
KETW-1530U	150 x 300	150	300	245	98	4(1+3)	100	50	25	14	93	17	418	149	DC90V	0.62A	37Kg
KETW-1535U	150 x 350	150	350	293	98	4(1+3)	100	50	25	14	93	17	468	149	DC90V	0.77A	43Kg
KETW-1545U	150 x 450	150	450	393	98	4(1+3)	100	50	25	14	93	17	568	149	DC90V	0.80A	56Kg
KETW-1550U	150 x 500	150	500	445	98	4(1+3)	100	50	25	14	93	17	618	149	DC90V	1.20A	62Kg
KETW-2040U	200 x 400	200	400	345	98	4(1+3)	100	50	25	14	93	17	518	178	DC90V	1.16A	61Kg
KETW-2045U	200 x 450	200	450	393	98	4(1+3)	100	50	25	14	93	17	568	178	DC90V	1.29A	69Kg

Order references
Code	Model
on request	KETW-1530U
on request	KETW-1535U
on request	KETW-1545U
on request	KETW-1550U
on request	KETW-2040U
on request	KETW-2045U
