Milling chuck - ASC
Models on this page
BT30-ASC25-85BT40-ASC25-130BT40-ASC25-90BT40-ASC32-105BT40-ASC32-130BT40-ASC32-95BT50-ASC25-100BT50-ASC25-150BT50-ASC32-105BT50-ASC32-150BT50-ASC32-200BT50-ASC32-250BT50-ASC42-110BT50-ASC42-160NT30-ASC20-85NT30-ASC25-80NT30-ASC32-90NT40-ASC25-130NT40-ASC25-80NT40-ASC32-130NT40-ASC32-85NT50-ASC25-150NT50-ASC25-85NT50-ASC32-150NT50-ASC32-90NT50-ASC42-150NT50-ASC42-95
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.

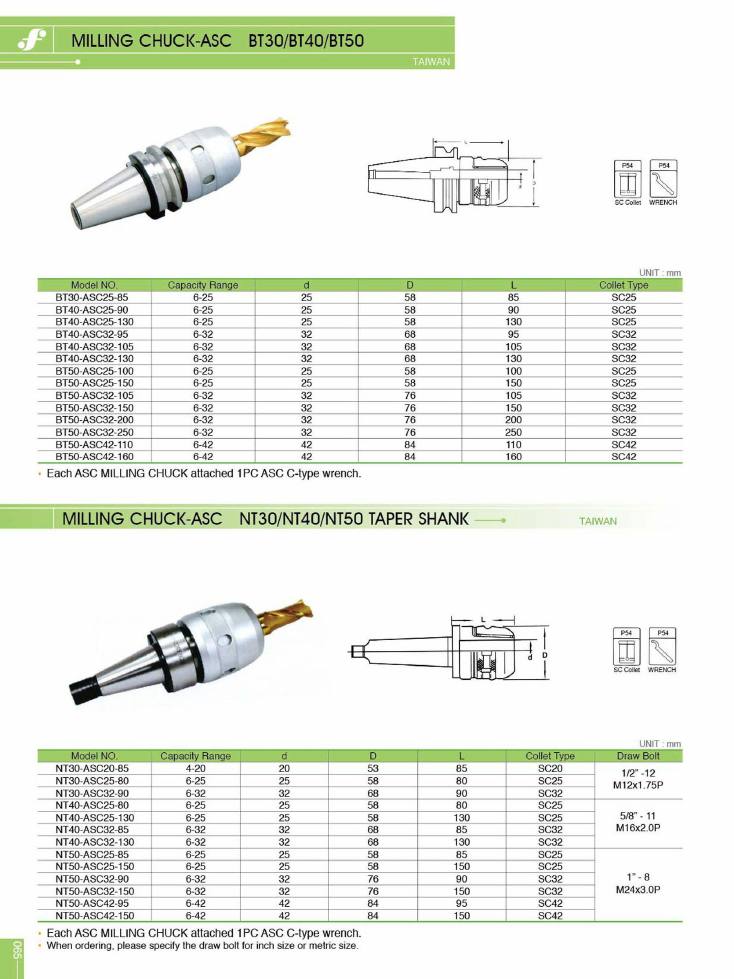

Milling Chuck-ASC BT30/BT40/BT50
ASC · Taiwan
| model_no | capacity_range | d | D | L | collet_type |
|---|---|---|---|---|---|
| BT30-ASC25-85 | 6-25 | 25 | 58 | 85 | SC25 |
| BT40-ASC25-90 | 6-25 | 25 | 58 | 90 | SC25 |
| BT40-ASC25-130 | 6-25 | 25 | 58 | 130 | SC25 |
| BT40-ASC32-95 | 6-32 | 32 | 68 | 95 | SC32 |
| BT40-ASC32-105 | 6-32 | 32 | 68 | 105 | SC32 |
| BT40-ASC32-130 | 6-32 | 32 | 68 | 130 | SC32 |
| BT50-ASC25-100 | 6-25 | 25 | 58 | 100 | SC25 |
| BT50-ASC25-150 | 6-25 | 25 | 58 | 150 | SC25 |
| BT50-ASC32-105 | 6-32 | 32 | 76 | 105 | SC32 |
| BT50-ASC32-150 | 6-32 | 32 | 76 | 150 | SC32 |
| BT50-ASC32-200 | 6-32 | 32 | 76 | 200 | SC32 |
| BT50-ASC32-250 | 6-32 | 32 | 76 | 250 | SC32 |
| BT50-ASC42-110 | 6-42 | 42 | 84 | 110 | SC42 |
| BT50-ASC42-160 | 6-42 | 42 | 84 | 160 | SC42 |
| Code | Model |
|---|---|
| on request | BT30-ASC25-85 |
| on request | BT40-ASC25-90 |
| on request | BT40-ASC25-130 |
| on request | BT40-ASC32-95 |
| on request | BT40-ASC32-105 |
| on request | BT40-ASC32-130 |
| on request | BT50-ASC25-100 |
| on request | BT50-ASC25-150 |
| on request | BT50-ASC32-105 |
| on request | BT50-ASC32-150 |
| on request | BT50-ASC32-200 |
| on request | BT50-ASC32-250 |
| on request | BT50-ASC42-110 |
| on request | BT50-ASC42-160 |
Each ASC MILLING CHUCK attached 1PC ASC C-type wrench. Related items: SC Collet (see P54), Wrench (see P54).
Milling Chuck-ASC NT30/NT40/NT50 Taper Shank
ASC · Taiwan
| model_no | capacity_range | d | D | L | collet_type | draw_bolt |
|---|---|---|---|---|---|---|
| NT30-ASC20-85 | 4-20 | 20 | 53 | 85 | SC20 | 1/2" -12 / M12x1.75P |
| NT30-ASC25-80 | 6-25 | 25 | 58 | 80 | SC25 | 1/2" -12 / M12x1.75P |
| NT30-ASC32-90 | 6-32 | 32 | 68 | 90 | SC32 | 1/2" -12 / M12x1.75P |
| NT40-ASC25-80 | 6-25 | 25 | 58 | 80 | SC25 | 5/8" - 11 / M16x2.0P |
| NT40-ASC25-130 | 6-25 | 25 | 58 | 130 | SC25 | 5/8" - 11 / M16x2.0P |
| NT40-ASC32-85 | 6-32 | 32 | 68 | 85 | SC32 | 5/8" - 11 / M16x2.0P |
| NT40-ASC32-130 | 6-32 | 32 | 68 | 130 | SC32 | 5/8" - 11 / M16x2.0P |
| NT50-ASC25-85 | 6-25 | 25 | 58 | 85 | SC25 | 1" - 8 / M24x3.0P |
| NT50-ASC25-150 | 6-25 | 25 | 58 | 150 | SC25 | 1" - 8 / M24x3.0P |
| NT50-ASC32-90 | 6-32 | 32 | 76 | 90 | SC32 | 1" - 8 / M24x3.0P |
| NT50-ASC32-150 | 6-32 | 32 | 76 | 150 | SC32 | 1" - 8 / M24x3.0P |
| NT50-ASC42-95 | 6-42 | 42 | 84 | 95 | SC42 | 1" - 8 / M24x3.0P |
| NT50-ASC42-150 | 6-42 | 42 | 84 | 150 | SC42 | 1" - 8 / M24x3.0P |
| Code | Model |
|---|---|
| on request | NT30-ASC20-85 |
| on request | NT30-ASC25-80 |
| on request | NT30-ASC32-90 |
| on request | NT40-ASC25-80 |
| on request | NT40-ASC25-130 |
| on request | NT40-ASC32-85 |
| on request | NT40-ASC32-130 |
| on request | NT50-ASC25-85 |
| on request | NT50-ASC25-150 |
| on request | NT50-ASC32-90 |
| on request | NT50-ASC32-150 |
| on request | NT50-ASC42-95 |
| on request | NT50-ASC42-150 |
Each ASC MILLING CHUCK attached 1PC ASC C-type wrench. When ordering, please specify the draw bolt for inch size or metric size. Related items: SC Collet (see P54), Wrench (see P54).
