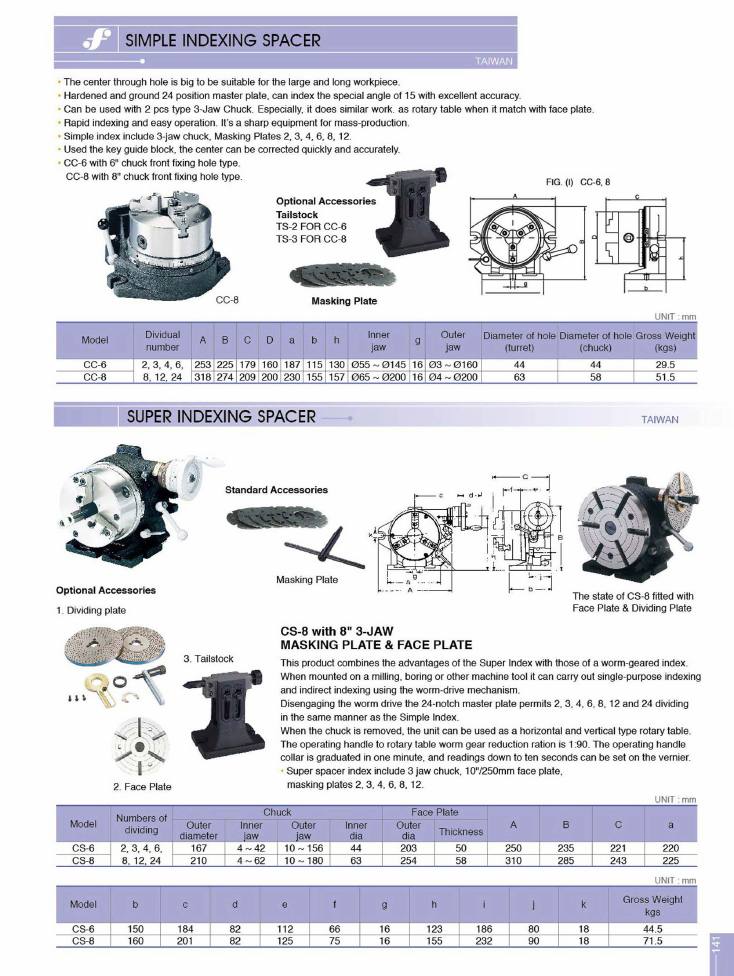

Simple Indexing Spacer
- The center through hole is big to be suitable for the large and long workpiece.
- Hardened and ground 24 position master plate, can index the special angle of 15 with excellent accuracy.
- Can be used with 2 pcs type 3-Jaw Chuck. Especially, it does similar work. as rotary table when it match with face plate.
- Rapid indexing and easy operation. It's a sharp equipment for mass-production.
- Simple index include 3-jaw chuck, Masking Plates 2, 3, 4, 6, 8, 12.
- Used the key guide block, the center can be corrected quickly and accurately.
- CC-6 with 6" chuck front fixing hole type.
- CC-8 with 8" chuck front fixing hole type.
| model | dividual_number | a_upper | b_upper | c_upper | d_upper | a_lower | b_lower | h | inner_jaw | g | outer_jaw | diameter_of_hole_turret | diameter_of_hole_chuck | gross_weight_kgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CC-6 | 2, 3, 4, 6, 8, 12, 24 | 253 | 225 | 179 | 160 | 187 | 115 | 130 | Ø55 ~ Ø145 | 16 | Ø3 ~ Ø160 | 44 | 44 | 29.5 |
| CC-8 | 2, 3, 4, 6, 8, 12, 24 | 318 | 274 | 209 | 200 | 230 | 155 | 157 | Ø65 ~ Ø200 | 16 | Ø4 ~ Ø200 | 63 | 58 | 51.5 |
| Code | Model |
|---|---|
| CC-6 | CC-6 |
| CC-8 | CC-8 |
| TS-2 | TS-2 |
| TS-3 | TS-3 |
Optional Accessories — Tailstock: TS-2 FOR CC-6, TS-3 FOR CC-8. Dimensions per FIG. (I) CC-6, 8.
Super Indexing Spacer
- Super spacer index include 3 jaw chuck, 10"/250mm face plate, masking plates 2, 3, 4, 6, 8, 12.
| model | numbers_of_dividing | chuck_outer_diameter | chuck_inner_jaw | chuck_outer_jaw | chuck_inner_dia | face_plate_outer_dia | face_plate_thickness | a | b | c | a_lower |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CS-6 | 2, 3, 4, 6, 8, 12, 24 | 167 | 4 ~ 42 | 10 ~ 156 | 44 | 203 | 50 | 250 | 235 | 221 | 220 |
| CS-8 | 2, 3, 4, 6, 8, 12, 24 | 210 | 4 ~ 62 | 10 ~ 180 | 63 | 254 | 58 | 310 | 285 | 243 | 225 |
| model | b | c | d | e | f | g | h | i | j | k | gross_weight_kgs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CS-6 | 150 | 184 | 82 | 112 | 66 | 16 | 123 | 186 | 80 | 18 | 44.5 |
| CS-8 | 160 | 201 | 82 | 125 | 75 | 16 | 155 | 232 | 90 | 18 | 71.5 |
| Code | Model |
|---|---|
| CS-6 | CS-6 |
| CS-8 | CS-8 |
CS-8 with 8" 3-JAW MASKING PLATE & FACE PLATE. This product combines the advantages of the Super Index with those of a worm-geared index. When mounted on a milling, boring or other machine tool it can carry out single-purpose indexing and indirect indexing using the worm-drive mechanism. Disengaging the worm drive the 24-notch master plate permits 2, 3, 4, 6, 8, 12 and 24 dividing in the same manner as the Simple Index. When the chuck is removed, the unit can be used as a horizontal and vertical type rotary table. The operating handle to rotary table worm gear reduction ration is 1:90. The operating handle collar is graduated in one minute, and readings down to ten seconds can be set on the vernier. Standard Accessories: Masking Plate. Optional Accessories: 1. Dividing plate, 2. Face Plate, 3. Tailstock.
