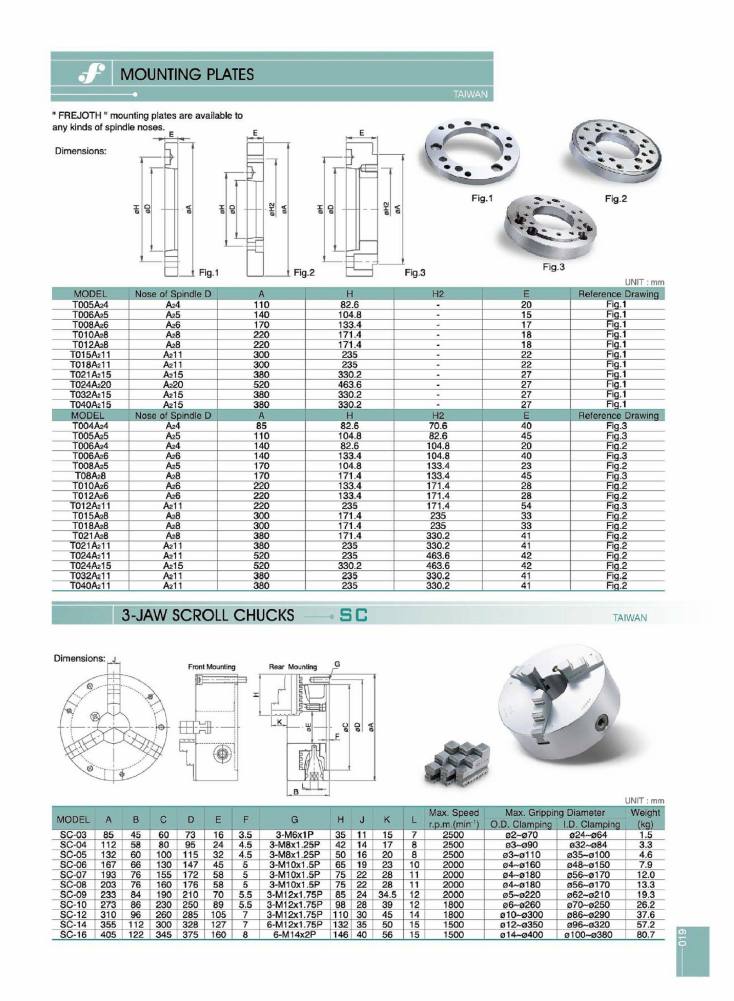

Frejoth accessory catalogue · Page 19

Mounting plates / 3-jaw scroll chucks

Models on this page

SC-03SC-04SC-05SC-06SC-07SC-08SC-09SC-10SC-12SC-14SC-16T004A2-4T005A2-4T005A2-5T006A2-4T006A2-5T006A2-6T008A2-5T008A2-6T010A2-6T010A2-8T012A2-11T012A2-6T012A2-8T015A2-11T015A2-8T018A2-11T018A2-8T021A2-11T021A2-15T021A2-8T024A2-11T024A2-15T024A2-20T032A2-11T032A2-15T040A2-11T040A2-15T08A2-8

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Mounting Plates

Taiwan

dimensions_fig1 (mm)
model	nose_of_spindle_d	a	h	h2	e	reference_drawing
T005A2-4	A2-4	110	82.6	—	20	Fig.1
T006A2-5	A2-5	140	104.8	—	15	Fig.1
T008A2-6	A2-6	170	133.4	—	17	Fig.1
T010A2-8	A2-8	220	171.4	—	18	Fig.1
T012A2-8	A2-8	220	171.4	—	18	Fig.1
T015A2-11	A2-11	300	235	—	22	Fig.1
T018A2-11	A2-11	300	235	—	22	Fig.1
T021A2-15	A2-15	380	330.2	—	27	Fig.1
T024A2-20	A2-20	520	463.6	—	27	Fig.1
T032A2-15	A2-15	380	330.2	—	27	Fig.1
T040A2-15	A2-15	380	330.2	—	27	Fig.1

dimensions_fig2_fig3 (mm)
model	nose_of_spindle_d	a	h	h2	e	reference_drawing
T004A2-4	A2-4	85	82.6	70.6	40	Fig.3
T005A2-5	A2-5	110	104.8	82.6	45	Fig.3
T006A2-4	A2-4	140	82.6	104.8	20	Fig.2
T006A2-6	A2-6	140	133.4	104.8	40	Fig.3
T008A2-5	A2-5	170	104.8	133.4	23	Fig.2
T08A2-8	A2-8	170	171.4	133.4	45	Fig.3
T010A2-6	A2-6	220	133.4	171.4	28	Fig.2
T012A2-6	A2-6	220	133.4	171.4	28	Fig.2
T012A2-11	A2-11	220	235	171.4	54	Fig.3
T015A2-8	A2-8	300	171.4	235	33	Fig.2
T018A2-8	A2-8	300	171.4	235	33	Fig.2
T021A2-8	A2-8	380	171.4	330.2	41	Fig.2
T021A2-11	A2-11	380	235	330.2	41	Fig.2
T024A2-11	A2-11	520	235	463.6	42	Fig.2
T024A2-15	A2-15	520	330.2	463.6	42	Fig.2
T032A2-11	A2-11	380	235	330.2	41	Fig.2
T040A2-11	A2-11	380	235	330.2	41	Fig.2

Order references
Code	Model
on request	T005A2-4
on request	T006A2-5
on request	T008A2-6
on request	T010A2-8
on request	T012A2-8
on request	T015A2-11
on request	T018A2-11
on request	T021A2-15
on request	T024A2-20
on request	T032A2-15
on request	T040A2-15
on request	T004A2-4
on request	T005A2-5
on request	T006A2-4
on request	T006A2-6
on request	T008A2-5
on request	T08A2-8
on request	T010A2-6
on request	T012A2-6
on request	T012A2-11
on request	T015A2-8
on request	T018A2-8
on request	T021A2-8
on request	T021A2-11
on request	T024A2-11
on request	T024A2-15
on request	T032A2-11
on request	T040A2-11

"FREJOTH" mounting plates are available to any kinds of spindle noses. Reference drawings Fig.1 (plain plate, no H2 step), Fig.2 and Fig.3 (stepped plates with an H2 register).

3-Jaw Scroll Chucks

SC · Taiwan

dimensions_and_capacity (mm)
model	a	b	c	d	e	f	g	h	j	k	l	max_speed_rpm_min_1	max_gripping_diameter_od_clamping	max_gripping_diameter_id_clamping	weight_kg
SC-03	85	45	60	73	16	3.5	3-M6x1P	35	11	15	7	2500	ø2~ø70	ø24~ø64	1.5
SC-04	112	58	80	95	24	4.5	3-M8x1.25P	42	14	17	8	2500	ø3~ø90	ø32~ø84	3.3
SC-05	132	60	100	115	32	4.5	3-M8x1.25P	50	16	20	8	2500	ø3~ø110	ø35~ø100	4.6
SC-06	167	66	130	147	45	5	3-M10x1.5P	65	19	23	10	2000	ø4~ø160	ø48~ø150	7.9
SC-07	193	76	155	172	58	5	3-M10x1.5P	75	22	28	11	2000	ø4~ø180	ø56~ø170	12
SC-08	203	76	160	176	58	5	3-M10x1.5P	75	22	28	11	2000	ø4~ø180	ø56~ø170	13.3
SC-09	233	84	190	210	70	5.5	3-M12x1.75P	85	24	34.5	12	2000	ø5~ø220	ø62~ø210	19.3
SC-10	273	86	230	250	89	5.5	3-M12x1.75P	98	28	39	12	1800	ø6~ø260	ø70~ø250	26.2
SC-12	310	96	260	285	105	7	3-M12x1.75P	110	30	45	14	1800	ø10~ø300	ø86~ø290	37.6
SC-14	355	112	300	328	127	7	6-M12x1.75P	132	35	50	15	1500	ø12~ø350	ø96~ø320	57.2
SC-16	405	122	345	375	160	8	6-M14x2P	146	40	56	15	1500	ø14~ø400	ø100~ø380	80.7

Order references
Code	Model
on request	SC-03
on request	SC-04
on request	SC-05
on request	SC-06
on request	SC-07
on request	SC-08
on request	SC-09
on request	SC-10
on request	SC-12
on request	SC-14
on request	SC-16

Dimension drawings show front mounting and rear mounting variants.
