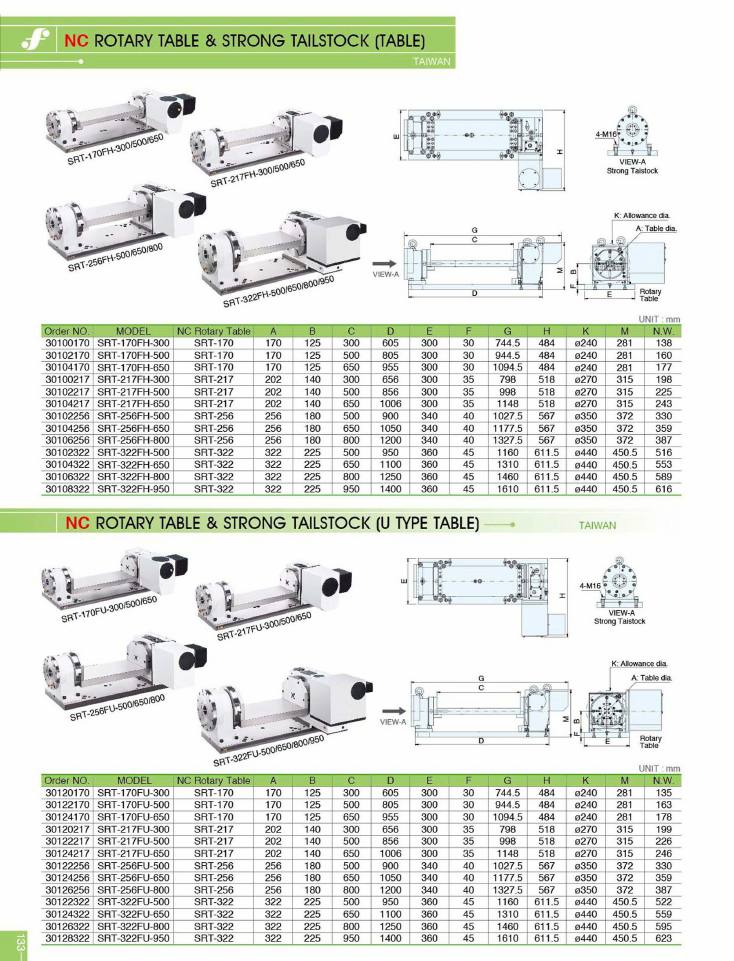

Frejoth accessory catalogue · Page 133
NC rotary table & strong tailstock
Models on this page
SRT-170FH-300SRT-170FH-500SRT-170FH-650SRT-170FU-300SRT-170FU-500SRT-170FU-650SRT-217FH-300SRT-217FH-500SRT-217FH-650SRT-217FU-300SRT-217FU-500SRT-217FU-650SRT-256FH-500SRT-256FH-650SRT-256FH-800SRT-256FU-500SRT-256FU-650SRT-256FU-800SRT-322FH-500SRT-322FH-650SRT-322FH-800SRT-322FH-950SRT-322FU-500SRT-322FU-650SRT-322FU-800SRT-322FU-950
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
NC Rotary Table & Strong Tailstock (Table)
SRT-FH · Taiwan
| order_no | model | nc_rotary_table | A | B | C | D | E | F | G | H | K | M | n_w |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30100170 | SRT-170FH-300 | SRT-170 | 170 | 125 | 300 | 605 | 300 | 30 | 744.5 | 484 | ø240 | 281 | 138 |
| 30102170 | SRT-170FH-500 | SRT-170 | 170 | 125 | 500 | 805 | 300 | 30 | 944.5 | 484 | ø240 | 281 | 160 |
| 30104170 | SRT-170FH-650 | SRT-170 | 170 | 125 | 650 | 955 | 300 | 30 | 1094.5 | 484 | ø240 | 281 | 177 |
| 30100217 | SRT-217FH-300 | SRT-217 | 202 | 140 | 300 | 656 | 300 | 35 | 798 | 518 | ø270 | 315 | 198 |
| 30102217 | SRT-217FH-500 | SRT-217 | 202 | 140 | 500 | 856 | 300 | 35 | 998 | 518 | ø270 | 315 | 225 |
| 30104217 | SRT-217FH-650 | SRT-217 | 202 | 140 | 650 | 1006 | 300 | 35 | 1148 | 518 | ø270 | 315 | 243 |
| 30102256 | SRT-256FH-500 | SRT-256 | 256 | 180 | 500 | 900 | 340 | 40 | 1027.5 | 567 | ø350 | 372 | 330 |
| 30104256 | SRT-256FH-650 | SRT-256 | 256 | 180 | 650 | 1050 | 340 | 40 | 1177.5 | 567 | ø350 | 372 | 359 |
| 30106256 | SRT-256FH-800 | SRT-256 | 256 | 180 | 800 | 1200 | 340 | 40 | 1327.5 | 567 | ø350 | 372 | 387 |
| 30102322 | SRT-322FH-500 | SRT-322 | 322 | 225 | 500 | 950 | 360 | 45 | 1160 | 611.5 | ø440 | 450.5 | 516 |
| 30104322 | SRT-322FH-650 | SRT-322 | 322 | 225 | 650 | 1100 | 360 | 45 | 1310 | 611.5 | ø440 | 450.5 | 553 |
| 30106322 | SRT-322FH-800 | SRT-322 | 322 | 225 | 800 | 1250 | 360 | 45 | 1460 | 611.5 | ø440 | 450.5 | 589 |
| 30108322 | SRT-322FH-950 | SRT-322 | 322 | 225 | 950 | 1400 | 360 | 45 | 1610 | 611.5 | ø440 | 450.5 | 616 |
| Code | Model |
|---|---|
| 30100170 | SRT-170FH-300 |
| 30102170 | SRT-170FH-500 |
| 30104170 | SRT-170FH-650 |
| 30100217 | SRT-217FH-300 |
| 30102217 | SRT-217FH-500 |
| 30104217 | SRT-217FH-650 |
| 30102256 | SRT-256FH-500 |
| 30104256 | SRT-256FH-650 |
| 30106256 | SRT-256FH-800 |
| 30102322 | SRT-322FH-500 |
| 30104322 | SRT-322FH-650 |
| 30106322 | SRT-322FH-800 |
| 30108322 | SRT-322FH-950 |
Flat table base version. Models SRT-170FH-300/500/650, SRT-217FH-300/500/650, SRT-256FH-500/650/800, SRT-322FH-500/650/800/950. K = allowance dia., A = table dia.
NC Rotary Table & Strong Tailstock (U Type Table)
SRT-FU · Taiwan
| order_no | model | nc_rotary_table | A | B | C | D | E | F | G | H | K | M | n_w |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30120170 | SRT-170FU-300 | SRT-170 | 170 | 125 | 300 | 605 | 300 | 30 | 744.5 | 484 | ø240 | 281 | 135 |
| 30122170 | SRT-170FU-500 | SRT-170 | 170 | 125 | 500 | 805 | 300 | 30 | 944.5 | 484 | ø240 | 281 | 163 |
| 30124170 | SRT-170FU-650 | SRT-170 | 170 | 125 | 650 | 955 | 300 | 30 | 1094.5 | 484 | ø240 | 281 | 178 |
| 30120217 | SRT-217FU-300 | SRT-217 | 202 | 140 | 300 | 656 | 300 | 35 | 798 | 518 | ø270 | 315 | 199 |
| 30122217 | SRT-217FU-500 | SRT-217 | 202 | 140 | 500 | 856 | 300 | 35 | 998 | 518 | ø270 | 315 | 226 |
| 30124217 | SRT-217FU-650 | SRT-217 | 202 | 140 | 650 | 1006 | 300 | 35 | 1148 | 518 | ø270 | 315 | 246 |
| 30122256 | SRT-256FU-500 | SRT-256 | 256 | 180 | 500 | 900 | 340 | 40 | 1027.5 | 567 | ø350 | 372 | 330 |
| 30124256 | SRT-256FU-650 | SRT-256 | 256 | 180 | 650 | 1050 | 340 | 40 | 1177.5 | 567 | ø350 | 372 | 359 |
| 30126256 | SRT-256FU-800 | SRT-256 | 256 | 180 | 800 | 1200 | 340 | 40 | 1327.5 | 567 | ø350 | 372 | 387 |
| 30122322 | SRT-322FU-500 | SRT-322 | 322 | 225 | 500 | 950 | 360 | 45 | 1160 | 611.5 | ø440 | 450.5 | 522 |
| 30124322 | SRT-322FU-650 | SRT-322 | 322 | 225 | 650 | 1100 | 360 | 45 | 1310 | 611.5 | ø440 | 450.5 | 559 |
| 30126322 | SRT-322FU-800 | SRT-322 | 322 | 225 | 800 | 1250 | 360 | 45 | 1460 | 611.5 | ø440 | 450.5 | 595 |
| 30128322 | SRT-322FU-950 | SRT-322 | 322 | 225 | 950 | 1400 | 360 | 45 | 1610 | 611.5 | ø440 | 450.5 | 623 |
| Code | Model |
|---|---|
| 30120170 | SRT-170FU-300 |
| 30122170 | SRT-170FU-500 |
| 30124170 | SRT-170FU-650 |
| 30120217 | SRT-217FU-300 |
| 30122217 | SRT-217FU-500 |
| 30124217 | SRT-217FU-650 |
| 30122256 | SRT-256FU-500 |
| 30124256 | SRT-256FU-650 |
| 30126256 | SRT-256FU-800 |
| 30122322 | SRT-322FU-500 |
| 30124322 | SRT-322FU-650 |
| 30126322 | SRT-322FU-800 |
| 30128322 | SRT-322FU-950 |
U type table base version. Models SRT-170FU-300/500/650, SRT-217FU-300/500/650, SRT-256FU-500/650/800, SRT-322FU-500/650/800/950. K = allowance dia., A = table dia.
