NC Rotary Table & Strong Tailstock (Square Table)

Models on this page

SRT-170FC-300-100SRT-170FC-300-125SRT-170FC-500-100SRT-170FC-500-125SRT-170FC-650-100SRT-170FC-650-125SRT-217FC-300-100SRT-217FC-300-125SRT-217FC-500-100SRT-217FC-500-125SRT-217FC-650-100SRT-217FC-650-125SRT-256FC-500-100SRT-256FC-500-125SRT-256FC-500-150SRT-256FC-650-100SRT-256FC-650-125SRT-256FC-650-150SRT-256FC-800-100SRT-256FC-800-125SRT-256FC-800-150SRT-322FC-500-100SRT-322FC-500-125SRT-322FC-500-150SRT-322FC-650-100SRT-322FC-650-125SRT-322FC-650-150SRT-322FC-800-100SRT-322FC-800-125SRT-322FC-800-150SRT-322FC-950-100SRT-322FC-950-125SRT-322FC-950-150

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

NC Rotary Table & Strong Tailstock (Square Table)

SRT-FC · Taiwan

models_and_dimensions (mm)
order_no	model	nc_rotary_table	strong_tailstock	A	B	C	D	E	F	G	H	K	L	M	n_w
30140170	SRT-170FC-300-100	SRT-170	SRT-170F	170	125	300	605	300	30	744.5	484	ø240	100	281	146
30142170	SRT-170FC-500-100	SRT-170	SRT-170F	170	125	500	805	300	30	944.5	484	ø240	100	281	173
30144170	SRT-170FC-650-100	SRT-170	SRT-170F	170	125	650	955	300	30	1094.5	484	ø240	100	281	192
30150170	SRT-170FC-300-125	SRT-170	SRT-170F	170	125	300	605	300	30	744.5	484	ø240	125	281	158
30152170	SRT-170FC-500-125	SRT-170	SRT-170F	170	125	500	805	300	30	944.5	484	ø240	125	281	193
30154170	SRT-170FC-650-125	SRT-170	SRT-170F	170	125	650	955	300	30	1094.5	484	ø240	125	281	224
30140217	SRT-217FC-300-100	SRT-217	SRT-217F	202	140	300	656	300	35	798	518	ø270	100	315	203
30142217	SRT-217FC-500-100	SRT-217	SRT-217F	202	140	500	856	300	35	998	518	ø270	100	315	232
30144217	SRT-217FC-650-100	SRT-217	SRT-217F	202	140	650	1006	300	35	1148	518	ø270	100	315	253
30150217	SRT-217FC-300-125	SRT-217	SRT-217F	202	140	300	656	300	35	798	518	ø270	125	315	215
30152217	SRT-217FC-500-125	SRT-217	SRT-217F	202	140	500	856	300	35	998	518	ø270	125	315	252
30154217	SRT-217FC-650-125	SRT-217	SRT-217F	202	140	650	1006	300	35	1148	518	ø270	125	315	284
30142256	SRT-256FC-500-100	SRT-256	SRT-256F	256	180	500	900	340	40	1027.5	567	ø350	100	372	321
30144256	SRT-256FC-650-100	SRT-256	SRT-256F	256	180	650	1050	340	40	1177.5	567	ø350	100	372	348
30146256	SRT-256FC-800-100	SRT-256	SRT-256F	256	180	800	1200	340	40	1327.5	567	ø350	100	372	374
30152256	SRT-256FC-500-125	SRT-256	SRT-256F	256	180	500	900	340	40	1027.5	567	ø350	125	372	341
30154256	SRT-256FC-650-125	SRT-256	SRT-256F	256	180	650	1050	340	40	1177.5	567	ø350	125	372	379
30156256	SRT-256FC-800-125	SRT-256	SRT-256F	256	180	800	1200	340	40	1327.5	567	ø350	125	372	406
30162256	SRT-256FC-500-150	SRT-256	SRT-256F	256	180	500	900	340	40	1027.5	567	ø350	150	372	366
30164256	SRT-256FC-650-150	SRT-256	SRT-256F	256	180	650	1050	340	40	1177.5	567	ø350	150	372	405
30166256	SRT-256FC-800-150	SRT-256	SRT-256F	256	180	800	1200	340	40	1327.5	567	ø350	150	372	445
30142322	SRT-322FC-500-100	SRT-322	SRT-322F	322	225	500	950	360	45	1160	611.5	ø440	100	450.5	497
30144322	SRT-322FC-650-100	SRT-322	SRT-322F	322	225	650	1100	360	45	1310	611.5	ø440	100	450.5	526
30146322	SRT-322FC-800-100	SRT-322	SRT-322F	322	225	800	1250	360	45	1460	611.5	ø440	100	450.5	554
30148322	SRT-322FC-950-100	SRT-322	SRT-322F	322	225	950	1400	360	45	1610	611.5	ø440	100	450.5	574
30152322	SRT-322FC-500-125	SRT-322	SRT-322F	322	225	500	950	360	45	1160	611.5	ø440	125	450.5	517
30154322	SRT-322FC-650-125	SRT-322	SRT-322F	322	225	650	1100	360	45	1310	611.5	ø440	125	450.5	557
30156322	SRT-322FC-800-125	SRT-322	SRT-322F	322	225	800	1250	360	45	1460	611.5	ø440	125	450.5	586
30158322	SRT-322FC-950-125	SRT-322	SRT-322F	322	225	950	1400	360	45	1610	611.5	ø440	125	450.5	611
30162322	SRT-322FC-500-150	SRT-322	SRT-322F	322	225	500	950	360	45	1160	611.5	ø440	150	450.5	542
30164322	SRT-322FC-650-150	SRT-322	SRT-322F	322	225	650	1100	360	45	1310	611.5	ø440	150	450.5	583
30166322	SRT-322FC-800-150	SRT-322	SRT-322F	322	225	800	1250	360	45	1460	611.5	ø440	150	450.5	625
30168322	SRT-322FC-950-150	SRT-322	SRT-322F	322	225	950	1400	360	45	1610	611.5	ø440	150	450.5	657

Order references
Code	Model
30140170	SRT-170FC-300-100
30142170	SRT-170FC-500-100
30144170	SRT-170FC-650-100
30150170	SRT-170FC-300-125
30152170	SRT-170FC-500-125
30154170	SRT-170FC-650-125
30140217	SRT-217FC-300-100
30142217	SRT-217FC-500-100
30144217	SRT-217FC-650-100
30150217	SRT-217FC-300-125
30152217	SRT-217FC-500-125
30154217	SRT-217FC-650-125
30142256	SRT-256FC-500-100
30144256	SRT-256FC-650-100
30146256	SRT-256FC-800-100
30152256	SRT-256FC-500-125
30154256	SRT-256FC-650-125
30156256	SRT-256FC-800-125
30162256	SRT-256FC-500-150
30164256	SRT-256FC-650-150
30166256	SRT-256FC-800-150
30142322	SRT-322FC-500-100
30144322	SRT-322FC-650-100
30146322	SRT-322FC-800-100
30148322	SRT-322FC-950-100
30152322	SRT-322FC-500-125
30154322	SRT-322FC-650-125
30156322	SRT-322FC-800-125
30158322	SRT-322FC-950-125
30162322	SRT-322FC-500-150
30164322	SRT-322FC-650-150
30166322	SRT-322FC-800-150
30168322	SRT-322FC-950-150

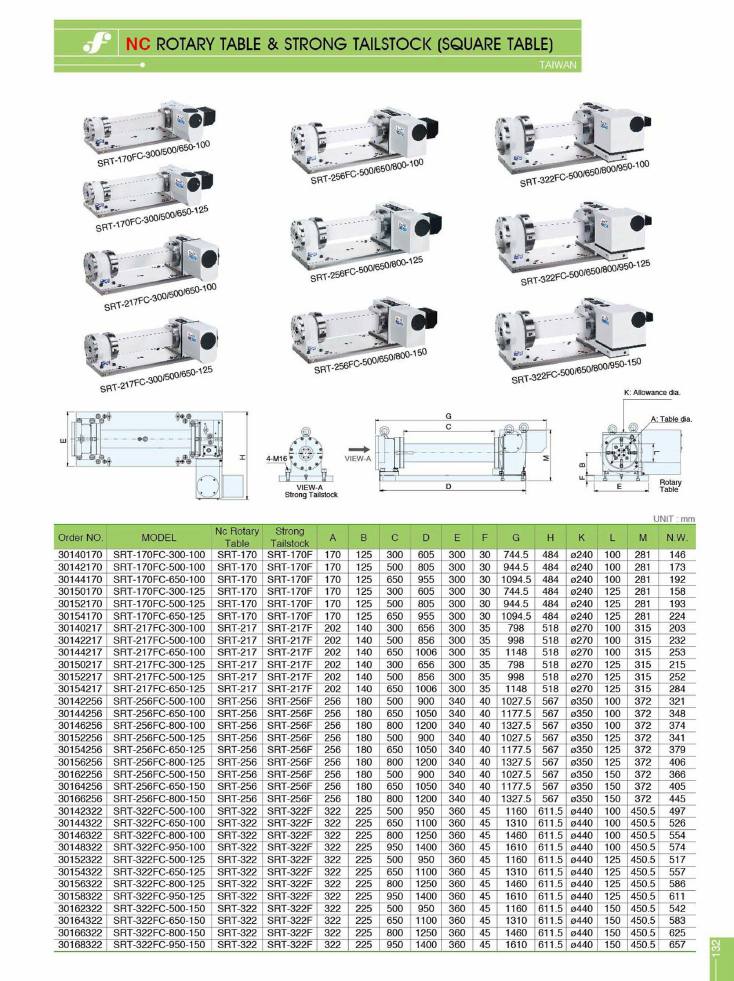

Combination of an SRT NC rotary table and matching SRT strong tailstock on a square table base. In the model code the -300/-500/-650/-800/-950 element is the C dimension and the trailing -100/-125/-150 is the L dimension (square table width). Drawing labels: A = table dia., K = allowance dia.; tailstock mounting is 4-M16.
