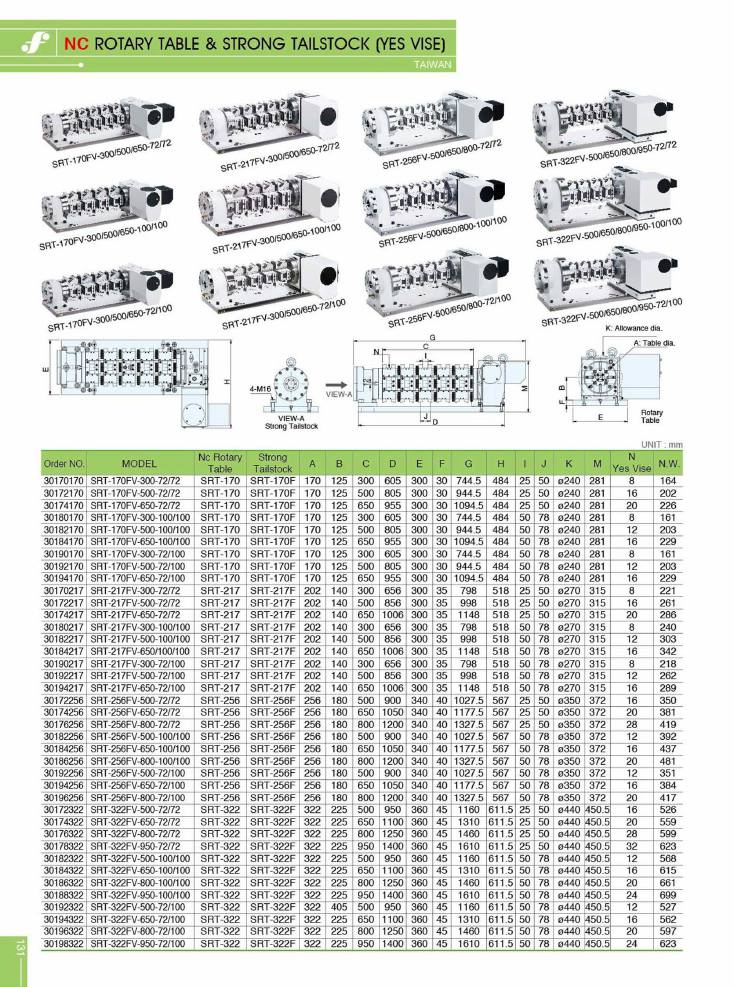

Source Frejoth catalogue page 131 — NC Rotary Table & Strong Tailstock (Yes Vise)

Open full-size source page

Frejoth accessory catalogue · Page 131

NC Rotary Table & Strong Tailstock (Yes Vise)

Models on this page

SRT-170FV-300-100/100SRT-170FV-300-72/100SRT-170FV-300-72/72SRT-170FV-500-100/100SRT-170FV-500-72/100SRT-170FV-500-72/72SRT-170FV-650-100/100SRT-170FV-650-72/100SRT-170FV-650-72/72SRT-217FV-300-100/100SRT-217FV-300-72/100SRT-217FV-300-72/72SRT-217FV-500-100/100SRT-217FV-500-72/100SRT-217FV-500-72/72SRT-217FV-650-72/100SRT-217FV-650-72/72SRT-217FV-650/100/100SRT-256FV-500-100/100SRT-256FV-500-72/100SRT-256FV-500-72/72SRT-256FV-650-100/100SRT-256FV-650-72/100SRT-256FV-650-72/72SRT-256FV-800-100/100SRT-256FV-800-72/100SRT-256FV-800-72/72SRT-322FV-500-100/100SRT-322FV-500-72/100SRT-322FV-500-72/72SRT-322FV-650-100/100SRT-322FV-650-72/100SRT-322FV-650-72/72SRT-322FV-800-100/100SRT-322FV-800-72/100SRT-322FV-800-72/72SRT-322FV-950-100/100SRT-322FV-950-72/100SRT-322FV-950-72/72

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

NC Rotary Table & Strong Tailstock (Yes Vise)

SRT-FV · Taiwan

models_and_dimensions (mm)
order_no	model	nc_rotary_table	strong_tailstock	A	B	C	D	E	F	G	H	I	J	K	M	n_yes_vise	n_w
30170170	SRT-170FV-300-72/72	SRT-170	SRT-170F	170	125	300	605	300	30	744.5	484	25	50	ø240	281	8	164
30172170	SRT-170FV-500-72/72	SRT-170	SRT-170F	170	125	500	805	300	30	944.5	484	25	50	ø240	281	16	202
30174170	SRT-170FV-650-72/72	SRT-170	SRT-170F	170	125	650	955	300	30	1094.5	484	25	50	ø240	281	20	226
30180170	SRT-170FV-300-100/100	SRT-170	SRT-170F	170	125	300	605	300	30	744.5	484	50	78	ø240	281	8	161
30182170	SRT-170FV-500-100/100	SRT-170	SRT-170F	170	125	500	805	300	30	944.5	484	50	78	ø240	281	12	203
30184170	SRT-170FV-650-100/100	SRT-170	SRT-170F	170	125	650	955	300	30	1094.5	484	50	78	ø240	281	16	229
30190170	SRT-170FV-300-72/100	SRT-170	SRT-170F	170	125	300	605	300	30	744.5	484	50	78	ø240	281	8	161
30192170	SRT-170FV-500-72/100	SRT-170	SRT-170F	170	125	500	805	300	30	944.5	484	50	78	ø240	281	12	203
30194170	SRT-170FV-650-72/100	SRT-170	SRT-170F	170	125	650	955	300	30	1094.5	484	50	78	ø240	281	16	229
30170217	SRT-217FV-300-72/72	SRT-217	SRT-217F	202	140	300	656	300	35	798	518	25	50	ø270	315	8	221
30172217	SRT-217FV-500-72/72	SRT-217	SRT-217F	202	140	500	856	300	35	998	518	25	50	ø270	315	16	261
30174217	SRT-217FV-650-72/72	SRT-217	SRT-217F	202	140	650	1006	300	35	1148	518	25	50	ø270	315	20	286
30180217	SRT-217FV-300-100/100	SRT-217	SRT-217F	202	140	300	656	300	35	798	518	50	78	ø270	315	8	240
30182217	SRT-217FV-500-100/100	SRT-217	SRT-217F	202	140	500	856	300	35	998	518	50	78	ø270	315	12	303
30184217	SRT-217FV-650/100/100	SRT-217	SRT-217F	202	140	650	1006	300	35	1148	518	50	78	ø270	315	16	342
30190217	SRT-217FV-300-72/100	SRT-217	SRT-217F	202	140	300	656	300	35	798	518	50	78	ø270	315	8	218
30192217	SRT-217FV-500-72/100	SRT-217	SRT-217F	202	140	500	856	300	35	998	518	50	78	ø270	315	12	262
30194217	SRT-217FV-650-72/100	SRT-217	SRT-217F	202	140	650	1006	300	35	1148	518	50	78	ø270	315	16	289
30172256	SRT-256FV-500-72/72	SRT-256	SRT-256F	256	180	500	900	340	40	1027.5	567	25	50	ø350	372	16	350
30174256	SRT-256FV-650-72/72	SRT-256	SRT-256F	256	180	650	1050	340	40	1177.5	567	25	50	ø350	372	20	381
30176256	SRT-256FV-800-72/72	SRT-256	SRT-256F	256	180	800	1200	340	40	1327.5	567	25	50	ø350	372	28	419
30182256	SRT-256FV-500-100/100	SRT-256	SRT-256F	256	180	500	900	340	40	1027.5	567	50	78	ø350	372	12	392
30184256	SRT-256FV-650-100/100	SRT-256	SRT-256F	256	180	650	1050	340	40	1177.5	567	50	78	ø350	372	16	437
30186256	SRT-256FV-800-100/100	SRT-256	SRT-256F	256	180	800	1200	340	40	1327.5	567	50	78	ø350	372	20	481
30192256	SRT-256FV-500-72/100	SRT-256	SRT-256F	256	180	500	900	340	40	1027.5	567	50	78	ø350	372	12	351
30194256	SRT-256FV-650-72/100	SRT-256	SRT-256F	256	180	650	1050	340	40	1177.5	567	50	78	ø350	372	16	384
30196256	SRT-256FV-800-72/100	SRT-256	SRT-256F	256	180	800	1200	340	40	1327.5	567	50	78	ø350	372	20	417
30172322	SRT-322FV-500-72/72	SRT-322	SRT-322F	322	225	500	950	360	45	1160	611.5	25	50	ø440	450.5	16	526
30174322	SRT-322FV-650-72/72	SRT-322	SRT-322F	322	225	650	1100	360	45	1310	611.5	25	50	ø440	450.5	20	559
30176322	SRT-322FV-800-72/72	SRT-322	SRT-322F	322	225	800	1250	360	45	1460	611.5	25	50	ø440	450.5	28	599
30178322	SRT-322FV-950-72/72	SRT-322	SRT-322F	322	225	950	1400	360	45	1610	611.5	25	50	ø440	450.5	32	623
30182322	SRT-322FV-500-100/100	SRT-322	SRT-322F	322	225	500	950	360	45	1160	611.5	50	78	ø440	450.5	12	568
30184322	SRT-322FV-650-100/100	SRT-322	SRT-322F	322	225	650	1100	360	45	1310	611.5	50	78	ø440	450.5	16	615
30186322	SRT-322FV-800-100/100	SRT-322	SRT-322F	322	225	800	1250	360	45	1460	611.5	50	78	ø440	450.5	20	661
30188322	SRT-322FV-950-100/100	SRT-322	SRT-322F	322	225	950	1400	360	45	1610	611.5	50	78	ø440	450.5	24	699
30192322	SRT-322FV-500-72/100	SRT-322	SRT-322F	322	405	500	950	360	45	1160	611.5	50	78	ø440	450.5	12	527
30194322	SRT-322FV-650-72/100	SRT-322	SRT-322F	322	225	650	1100	360	45	1310	611.5	50	78	ø440	450.5	16	562
30196322	SRT-322FV-800-72/100	SRT-322	SRT-322F	322	225	800	1250	360	45	1460	611.5	50	78	ø440	450.5	20	597
30198322	SRT-322FV-950-72/100	SRT-322	SRT-322F	322	225	950	1400	360	45	1610	611.5	50	78	ø440	450.5	24	623

Order references
Code	Model
30170170	SRT-170FV-300-72/72
30172170	SRT-170FV-500-72/72
30174170	SRT-170FV-650-72/72
30180170	SRT-170FV-300-100/100
30182170	SRT-170FV-500-100/100
30184170	SRT-170FV-650-100/100
30190170	SRT-170FV-300-72/100
30192170	SRT-170FV-500-72/100
30194170	SRT-170FV-650-72/100
30170217	SRT-217FV-300-72/72
30172217	SRT-217FV-500-72/72
30174217	SRT-217FV-650-72/72
30180217	SRT-217FV-300-100/100
30182217	SRT-217FV-500-100/100
30184217	SRT-217FV-650/100/100
30190217	SRT-217FV-300-72/100
30192217	SRT-217FV-500-72/100
30194217	SRT-217FV-650-72/100
30172256	SRT-256FV-500-72/72
30174256	SRT-256FV-650-72/72
30176256	SRT-256FV-800-72/72
30182256	SRT-256FV-500-100/100
30184256	SRT-256FV-650-100/100
30186256	SRT-256FV-800-100/100
30192256	SRT-256FV-500-72/100
30194256	SRT-256FV-650-72/100
30196256	SRT-256FV-800-72/100
30172322	SRT-322FV-500-72/72
30174322	SRT-322FV-650-72/72
30176322	SRT-322FV-800-72/72
30178322	SRT-322FV-950-72/72
30182322	SRT-322FV-500-100/100
30184322	SRT-322FV-650-100/100
30186322	SRT-322FV-800-100/100
30188322	SRT-322FV-950-100/100
30192322	SRT-322FV-500-72/100
30194322	SRT-322FV-650-72/100
30196322	SRT-322FV-800-72/100
30198322	SRT-322FV-950-72/100

Combination of an SRT NC rotary table and a matching SRT strong tailstock carrying multiple Yes Vise vises. Model suffix -72/72, -100/100 and -72/100 denotes the vise jaw width combination; the -300/-500/-650/-800/-950 element is the C dimension (between-centres capacity). Drawing labels: A = table dia., K = allowance dia.; tailstock mounting is 4-M16.
