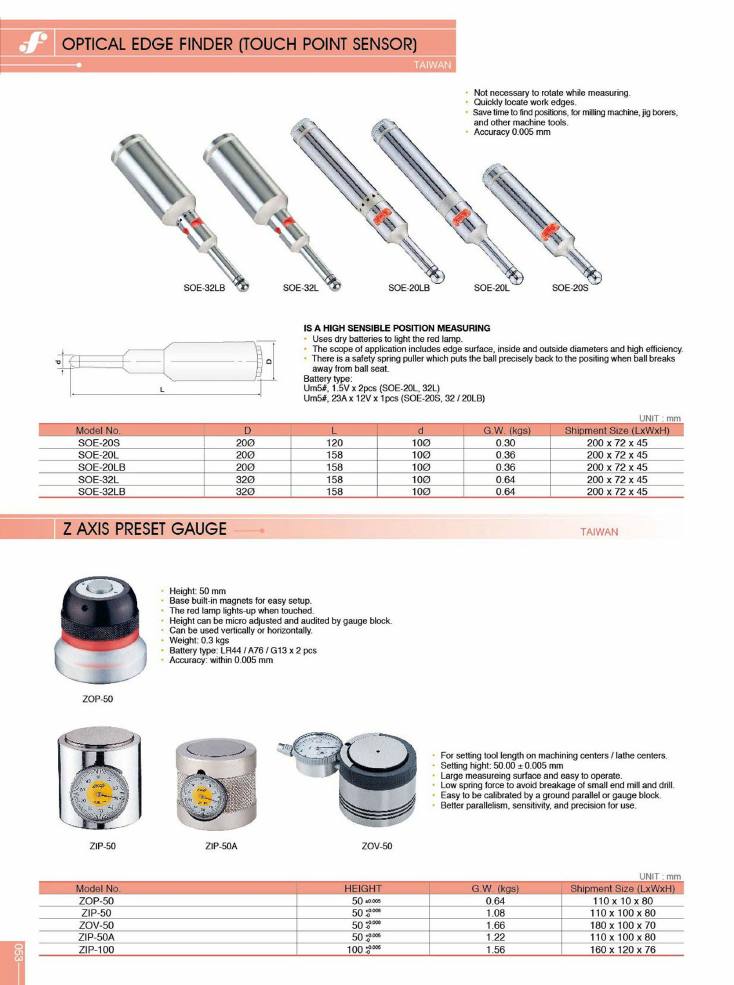

Frejoth accessory catalogue · Page 53
Optical edge finder / Z axis preset gauge
Models on this page
SOE-20LSOE-20LBSOE-20SSOE-32LSOE-32LBZIP-100ZIP-50ZIP-50AZOP-50ZOV-50
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Optical Edge Finder (Touch Point Sensor)
SOE · Taiwan
- Not necessary to rotate while measuring.
- Quickly locate work edges.
- Save time to find positions, for milling machine, jig borers, and other machine tools.
- Accuracy 0.005 mm
- IS A HIGH SENSIBLE POSITION MEASURING
- Uses dry batteries to light the red lamp.
- The scope of application includes edge surface, inside and outside diameters and high efficiency.
- There is a safety spring puller which puts the ball precisely back to the positing when ball breaks away from ball seat.
| model_no | D | L | d | g_w_kgs | shipment_size_lxwxh |
|---|---|---|---|---|---|
| SOE-20S | 20Ø | 120 | 10Ø | 0.3 | 200 x 72 x 45 |
| SOE-20L | 20Ø | 158 | 10Ø | 0.36 | 200 x 72 x 45 |
| SOE-20LB | 20Ø | 158 | 10Ø | 0.36 | 200 x 72 x 45 |
| SOE-32L | 32Ø | 158 | 10Ø | 0.64 | 200 x 72 x 45 |
| SOE-32LB | 32Ø | 158 | 10Ø | 0.64 | 200 x 72 x 45 |
| Code | Model |
|---|---|
| on request | SOE-20S |
| on request | SOE-20L |
| on request | SOE-20LB |
| on request | SOE-32L |
| on request | SOE-32LB |
Battery type: Um5#, 1.5V x 2pcs (SOE-20L, 32L); Um5#, 23A x 12V x 1pcs (SOE-20S, 32 / 20LB). Dimension drawing labels D (body dia), L (overall length), d (probe ball dia).
Z Axis Preset Gauge
Taiwan
- Height: 50 mm
- Base built-in magnets for easy setup.
- The red lamp lights-up when touched.
- Height can be micro adjusted and audited by gauge block.
- Can be used vertically or horizontally.
- Weight: 0.3 kgs
- Battery type: LR44 / A76 / G13 x 2 pcs
- Accuracy: within 0.005 mm
- For setting tool length on machining centers / lathe centers.
- Setting hight: 50.00 ± 0.005 mm
- Large measureing surface and easy to operate.
- Low spring force to avoid breakage of small end mill and drill.
- Easy to be calibrated by a ground parallel or gauge block.
- Better parallelism, sensitivity, and precision for use.
| model_no | height | g_w_kgs | shipment_size_lxwxh |
|---|---|---|---|
| ZOP-50 | 50 ±0.005 | 0.64 | 110 x 10 x 80 |
| ZIP-50 | 50 +0.008/-0 | 1.08 | 110 x 100 x 80 |
| ZOV-50 | 50 +0.008/-0 | 1.66 | 180 x 100 x 70 |
| ZIP-50A | 50 +0.005/-0 | 1.22 | 110 x 100 x 80 |
| ZIP-100 | 100 +0.005/-0 | 1.56 | 160 x 120 x 76 |
| Code | Model |
|---|---|
| on request | ZOP-50 |
| on request | ZIP-50 |
| on request | ZOV-50 |
| on request | ZIP-50A |
| on request | ZIP-100 |
The first eight bullets describe the optical/lamp model ZOP-50; the last six describe the dial-indicator models ZIP-50 / ZIP-50A / ZOV-50. The page does not label which bullet list belongs to which model beyond their placement beside the photos.
