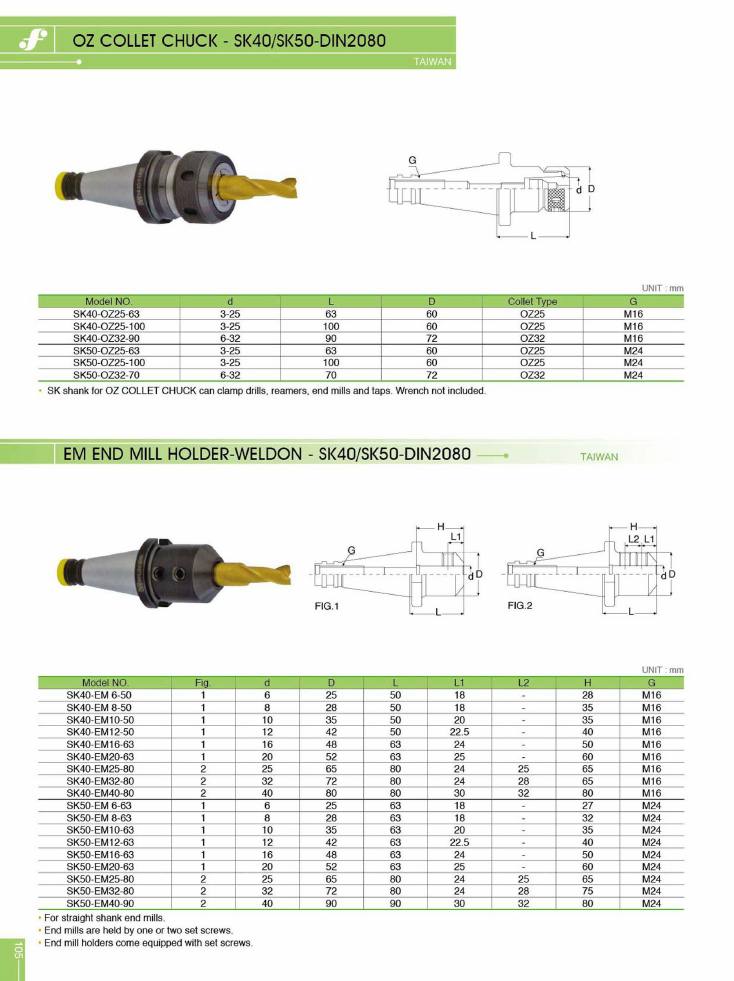

Frejoth accessory catalogue · Page 105

OZ collet chuck / EM end mill holder-Weldon - SK40/SK50-DIN2080

Models on this page

SK40-EM 6-50SK40-EM 8-50SK40-EM10-50SK40-EM12-50SK40-EM16-63SK40-EM20-63SK40-EM25-80SK40-EM32-80SK40-EM40-80SK40-OZ25-100SK40-OZ25-63SK40-OZ32-90SK50-EM 6-63SK50-EM 8-63SK50-EM10-63SK50-EM12-63SK50-EM16-63SK50-EM20-63SK50-EM25-80SK50-EM32-80SK50-EM40-90SK50-OZ25-100SK50-OZ25-63SK50-OZ32-70

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

OZ Collet Chuck - SK40/SK50-DIN2080

OZ · Taiwan

SK shank for OZ COLLET CHUCK can clamp drills, reamers, end mills and taps. Wrench not included.

dimensions (mm)
model_no	d	l	d_outer	collet_type	g
SK40-OZ25-63	3-25	63	60	OZ25	M16
SK40-OZ25-100	3-25	100	60	OZ25	M16
SK40-OZ32-90	6-32	90	72	OZ32	M16
SK50-OZ25-63	3-25	63	60	OZ25	M24
SK50-OZ25-100	3-25	100	60	OZ25	M24
SK50-OZ32-70	6-32	70	72	OZ32	M24

Order references
Code	Model
on request	SK40-OZ25-63
on request	SK40-OZ25-100
on request	SK40-OZ32-90
on request	SK50-OZ25-63
on request	SK50-OZ25-100
on request	SK50-OZ32-70

EM End Mill Holder-Weldon - SK40/SK50-DIN2080

EM · Taiwan

For straight shank end mills.
End mills are held by one or two set screws.
End mill holders come equipped with set screws.

dimensions (mm)
model_no	fig	d	d_outer	l	l1	l2	h	g
SK40-EM 6-50	1	6	25	50	18	—	28	M16
SK40-EM 8-50	1	8	28	50	18	—	35	M16
SK40-EM10-50	1	10	35	50	20	—	35	M16
SK40-EM12-50	1	12	42	50	22.5	—	40	M16
SK40-EM16-63	1	16	48	63	24	—	50	M16
SK40-EM20-63	1	20	52	63	25	—	60	M16
SK40-EM25-80	2	25	65	80	24	25	65	M16
SK40-EM32-80	2	32	72	80	24	28	65	M16
SK40-EM40-80	2	40	80	80	30	32	80	M16
SK50-EM 6-63	1	6	25	63	18	—	27	M24
SK50-EM 8-63	1	8	28	63	18	—	32	M24
SK50-EM10-63	1	10	35	63	20	—	35	M24
SK50-EM12-63	1	12	42	63	22.5	—	40	M24
SK50-EM16-63	1	16	48	63	24	—	50	M24
SK50-EM20-63	1	20	52	63	25	—	60	M24
SK50-EM25-80	2	25	65	80	24	25	65	M24
SK50-EM32-80	2	32	72	80	24	28	75	M24
SK50-EM40-90	2	40	90	90	30	32	80	M24

Order references
Code	Model
on request	SK40-EM 6-50
on request	SK40-EM 8-50
on request	SK40-EM10-50
on request	SK40-EM12-50
on request	SK40-EM16-63
on request	SK40-EM20-63
on request	SK40-EM25-80
on request	SK40-EM32-80
on request	SK40-EM40-80
on request	SK50-EM 6-63
on request	SK50-EM 8-63
on request	SK50-EM10-63
on request	SK50-EM12-63
on request	SK50-EM16-63
on request	SK50-EM20-63
on request	SK50-EM25-80
on request	SK50-EM32-80
on request	SK50-EM40-90
