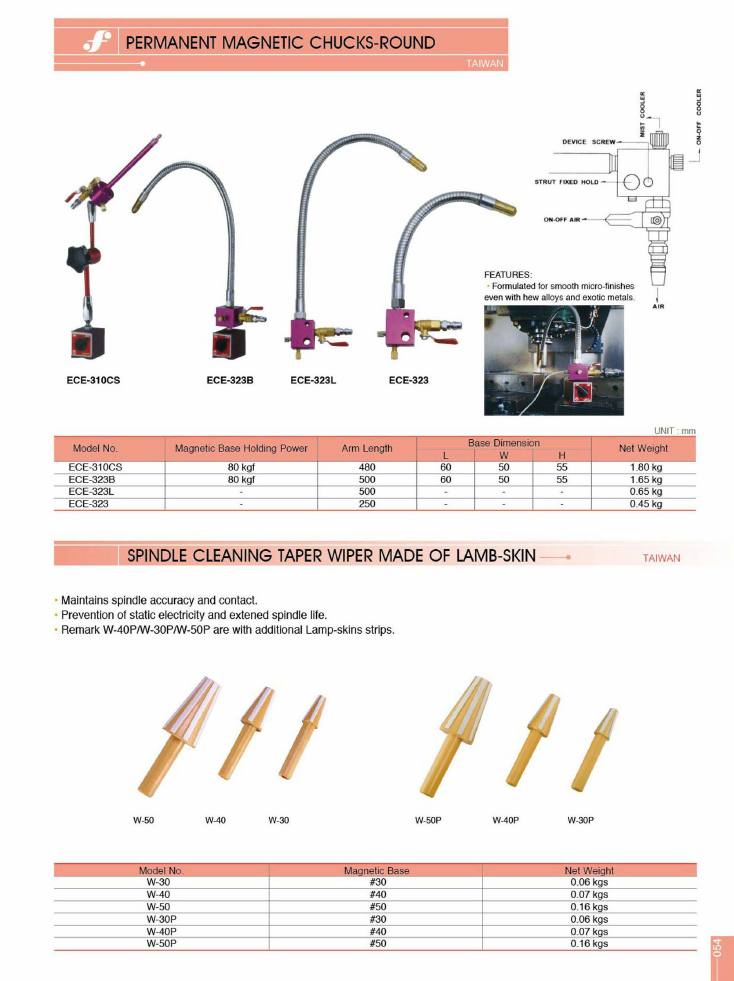

Frejoth accessory catalogue · Page 54
Permanent magnetic chucks-round
Models on this page
ECE-310CSECE-323ECE-323BECE-323LW-30W-30PW-40W-40PW-50W-50P
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Mist Coolant System / Mist Cooler with Magnetic Base
ECE · Taiwan
- Formulated for smooth micro-finishes even with hew alloys and exotic metals.
| model_no | magnetic_base_holding_power | arm_length | base_dimension_l | base_dimension_w | base_dimension_h | net_weight |
|---|---|---|---|---|---|---|
| ECE-310CS | 80 kgf | 480 | 60 | 50 | 55 | 1.80 kg |
| ECE-323B | 80 kgf | 500 | 60 | 50 | 55 | 1.65 kg |
| ECE-323L | — | 500 | — | — | — | 0.65 kg |
| ECE-323 | — | 250 | — | — | — | 0.45 kg |
| Code | Model |
|---|---|
| on request | ECE-310CS |
| on request | ECE-323B |
| on request | ECE-323L |
| on request | ECE-323 |
Cutaway diagram labels: MIST COOLER, ON-OFF COOLER, DEVICE SCREW, STRUT FIXED HOLD, ON-OFF AIR, AIR. ECE-310CS and ECE-323B have a magnetic base; ECE-323L and ECE-323 are bracket-mounted with no base.
Spindle Cleaning Taper Wiper Made of Lamb-Skin
W · Taiwan
- Maintains spindle accuracy and contact.
- Prevention of static electricity and extened spindle life.
| model_no | magnetic_base | net_weight |
|---|---|---|
| W-30 | #30 | 0.06 kgs |
| W-40 | #40 | 0.07 kgs |
| W-50 | #50 | 0.16 kgs |
| W-30P | #30 | 0.06 kgs |
| W-40P | #40 | 0.07 kgs |
| W-50P | #50 | 0.16 kgs |
| Code | Model |
|---|---|
| on request | W-30 |
| on request | W-40 |
| on request | W-50 |
| on request | W-30P |
| on request | W-40P |
| on request | W-50P |
Remark W-40P/W-30P/W-50P are with additional Lamp-skins strips.
