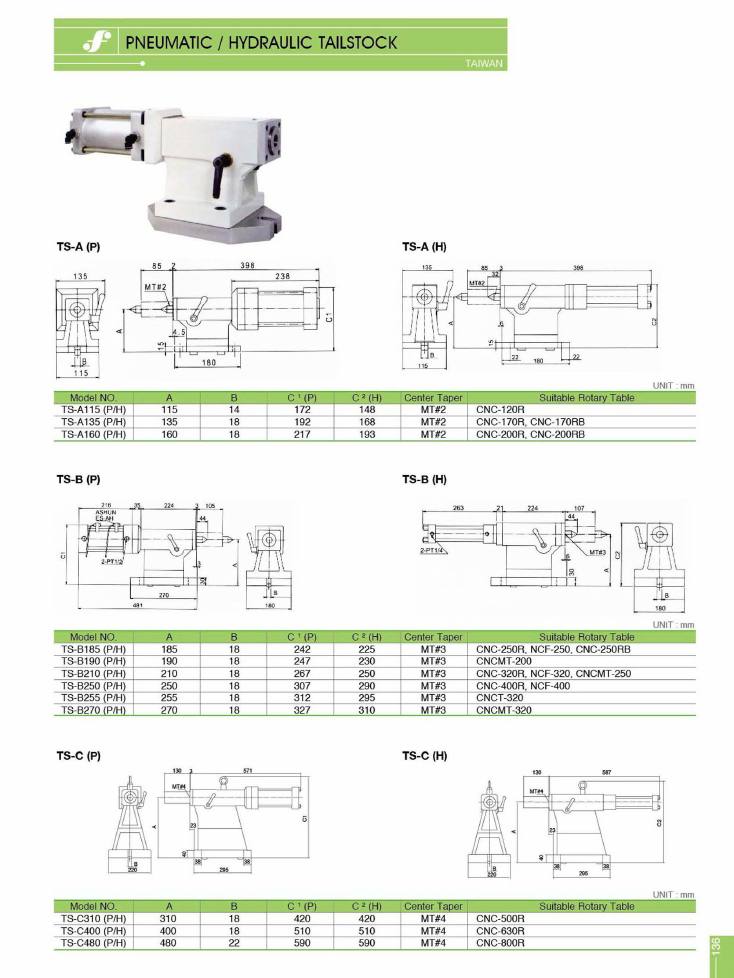

Frejoth accessory catalogue · Page 136
Pneumatic / Hydraulic tailstock
Models on this page
TS-A115 (P/H)TS-A135 (P/H)TS-A160 (P/H)TS-B185 (P/H)TS-B190 (P/H)TS-B210 (P/H)TS-B250 (P/H)TS-B255 (P/H)TS-B270 (P/H)TS-C310 (P/H)TS-C400 (P/H)TS-C480 (P/H)
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Pneumatic / Hydraulic Tailstock — TS-A
TS-A · Taiwan
| model_no | A | B | C1_p | C2_h | center_taper | suitable_rotary_table |
|---|---|---|---|---|---|---|
| TS-A115 (P/H) | 115 | 14 | 172 | 148 | MT#2 | CNC-120R |
| TS-A135 (P/H) | 135 | 18 | 192 | 168 | MT#2 | CNC-170R, CNC-170RB |
| TS-A160 (P/H) | 160 | 18 | 217 | 193 | MT#2 | CNC-200R, CNC-200RB |
| Code | Model |
|---|---|
| on request | TS-A115 (P/H) |
| on request | TS-A135 (P/H) |
| on request | TS-A160 (P/H) |
Two variants per model: (P) pneumatic and (H) hydraulic. C1 is the pneumatic dimension, C2 the hydraulic. Dimensioned drawings for TS-A (P) and TS-A (H) give 135 / 115 base, 85, 398 overall, 238, 180, 15, 4.5 (P) and 3 / 32 / 6 / 15 / 22 / 180 / 22 (H); centre taper MT#2.
Pneumatic / Hydraulic Tailstock — TS-B
TS-B · Taiwan
| model_no | A | B | C1_p | C2_h | center_taper | suitable_rotary_table |
|---|---|---|---|---|---|---|
| TS-B185 (P/H) | 185 | 18 | 242 | 225 | MT#3 | CNC-250R, NCF-250, CNC-250RB |
| TS-B190 (P/H) | 190 | 18 | 247 | 230 | MT#3 | CNCMT-200 |
| TS-B210 (P/H) | 210 | 18 | 267 | 250 | MT#3 | CNC-320R, NCF-320, CNCMT-250 |
| TS-B250 (P/H) | 250 | 18 | 307 | 290 | MT#3 | CNC-400R, NCF-400 |
| TS-B255 (P/H) | 255 | 18 | 312 | 295 | MT#3 | CNCT-320 |
| TS-B270 (P/H) | 270 | 18 | 327 | 310 | MT#3 | CNCMT-320 |
| Code | Model |
|---|---|
| on request | TS-B185 (P/H) |
| on request | TS-B190 (P/H) |
| on request | TS-B210 (P/H) |
| on request | TS-B250 (P/H) |
| on request | TS-B255 (P/H) |
| on request | TS-B270 (P/H) |
Drawings for TS-B (P) show 216 / 35 / 224 / 3 / 105 / 44 / 3 / 30 / 270 / 481 / 180, an ASHUN ES-AH cylinder and 2-PT1/2 ports; TS-B (H) shows 263 / 21 / 224 / 107 / 44 / 6 / 30 / 180 and 2-PT1/4 ports. Centre taper MT#3.
Pneumatic / Hydraulic Tailstock — TS-C
TS-C · Taiwan
| model_no | A | B | C1_p | C2_h | center_taper | suitable_rotary_table |
|---|---|---|---|---|---|---|
| TS-C310 (P/H) | 310 | 18 | 420 | 420 | MT#4 | CNC-500R |
| TS-C400 (P/H) | 400 | 18 | 510 | 510 | MT#4 | CNC-630R |
| TS-C480 (P/H) | 480 | 22 | 590 | 590 | MT#4 | CNC-800R |
| Code | Model |
|---|---|
| on request | TS-C310 (P/H) |
| on request | TS-C400 (P/H) |
| on request | TS-C480 (P/H) |
Drawings for TS-C (P) show 130 / 3 / 571 / 23 / 40 / 38 / 295 / 38 / 220; TS-C (H) shows 130 / 587 / 23 / 40 / 38 / 295 / 38 / 220. Centre taper MT#4.
