Power drawbar

Models on this page

APD-230APD-280APD-700APD-700VAPD-75EPD-240

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

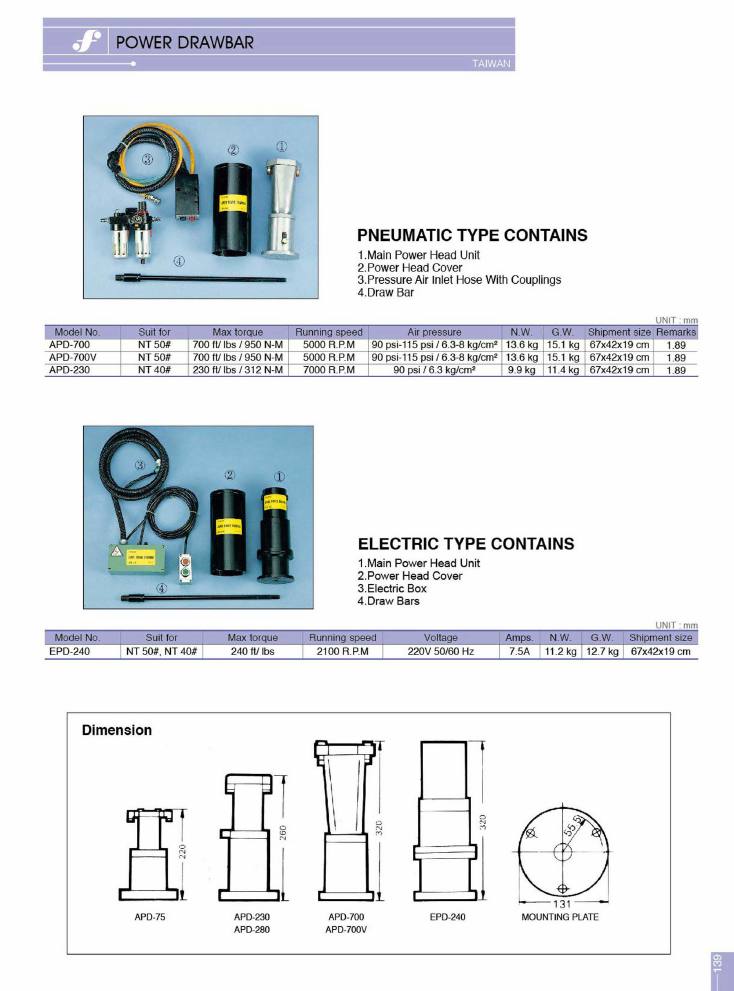

Power Drawbar — Pneumatic Type

APD · Taiwan

Pneumatic type contains: 1. Main Power Head Unit
2. Power Head Cover
3. Pressure Air Inlet Hose With Couplings
4. Draw Bar

specifications (mm)
model_no	suit_for	max_torque	running_speed	air_pressure	n_w	g_w	shipment_size	remarks
APD-700	NT 50#	700 ft/ lbs / 950 N-M	5000 R.P.M	90 psi-115 psi / 6.3-8 kg/cm²	13.6 kg	15.1 kg	67x42x19 cm	1.89
APD-700V	NT 50#	700 ft/ lbs / 950 N-M	5000 R.P.M	90 psi-115 psi / 6.3-8 kg/cm²	13.6 kg	15.1 kg	67x42x19 cm	1.89
APD-230	NT 40#	230 ft/ lbs / 312 N-M	7000 R.P.M	90 psi / 6.3 kg/cm²	9.9 kg	11.4 kg	67x42x19 cm	1.89

Order references
Code	Model
on request	APD-700
on request	APD-700V
on request	APD-230

Power Drawbar — Electric Type

EPD · Taiwan

Electric type contains: 1. Main Power Head Unit
2. Power Head Cover
3. Electric Box
4. Draw Bars

specifications (mm)
model_no	suit_for	max_torque	running_speed	voltage	amps	n_w	g_w	shipment_size
EPD-240	NT 50#, NT 40#	240 ft/ lbs	2100 R.P.M	220V 50/60 Hz	7.5A	11.2 kg	12.7 kg	67x42x19 cm

Order references
Code	Model
on request	EPD-240

Power Drawbar — Dimensions

Taiwan

dimensions (mm)
model	overall_height
APD-75	220
APD-230 / APD-280	260
APD-700 / APD-700V	320
EPD-240	320

Order references
Code	Model
on request	APD-75
on request	APD-280

Dimension drawings show overall height per model plus a common mounting plate: 131 mm outside diameter with three fixing holes on a 55.5 mm radius from centre.
