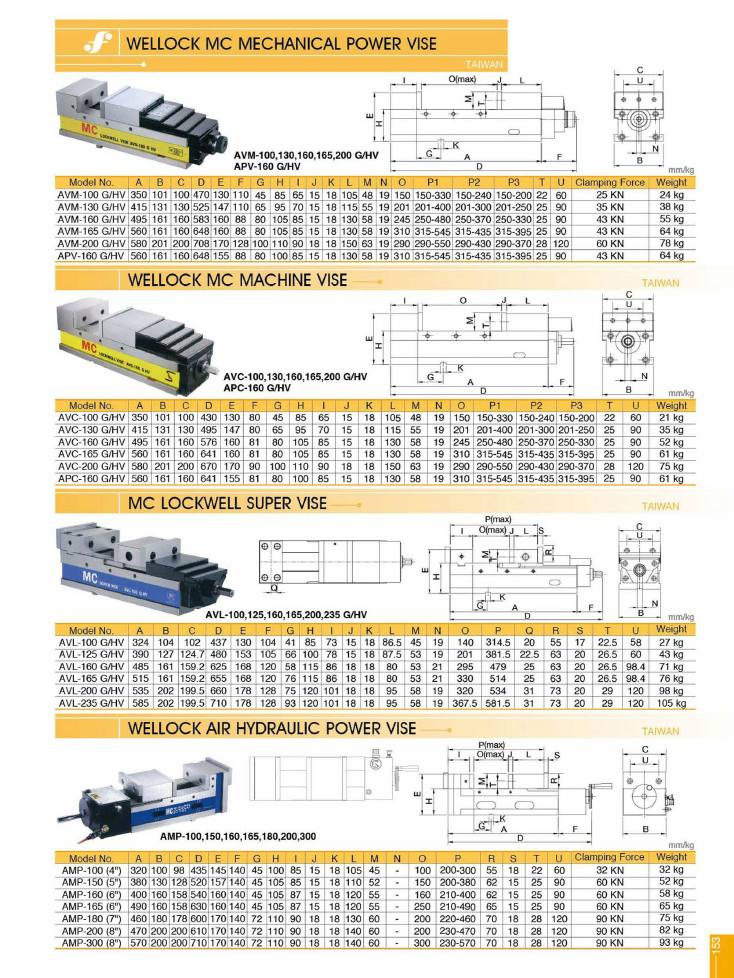

Frejoth accessory catalogue · Page 153

Power vise

Models on this page

AMP-100 (4")AMP-150 (5")AMP-160 (6")AMP-165 (6")AMP-180 (7")AMP-200 (8")AMP-300 (8")APC-160 G/HVAPV-160 G/HVAVC-100 G/HVAVC-130 G/HVAVC-160 G/HVAVC-165 G/HVAVC-200 G/HVAVL-100 G/HVAVL-125 G/HVAVL-160 G/HVAVL-165 G/HVAVL-200 G/HVAVL-235 G/HVAVM-100 G/HVAVM-130 G/HVAVM-160 G/HVAVM-165 G/HVAVM-200 G/HV

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

WELLOCK MC Mechanical Power Vise

AVM / APV · Taiwan

dimensions_and_capacity (mm/kg)
model_no	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P1	P2	P3	T	U	clamping_force_kn	weight_kg
AVM-100 G/HV	350	101	100	470	130	110	45	85	65	15	18	105	48	19	150	150-330	150-240	150-200	22	60	25	24
AVM-130 G/HV	415	131	130	525	147	110	65	95	70	15	18	115	55	19	201	201-400	201-300	201-250	25	90	35	38
AVM-160 G/HV	495	161	160	583	160	88	80	105	85	15	18	130	58	19	245	250-480	250-370	250-330	25	90	43	55
AVM-165 G/HV	560	161	160	648	160	88	80	105	85	15	18	130	58	19	310	315-545	315-435	315-395	25	90	43	64
AVM-200 G/HV	580	201	200	708	170	128	100	110	90	18	18	150	63	19	290	290-550	290-430	290-370	28	120	60	78
APV-160 G/HV	560	161	160	648	155	88	80	100	85	15	18	130	58	19	310	315-545	315-435	315-395	25	90	43	64

Order references
Code	Model
on request	AVM-100 G/HV
on request	AVM-130 G/HV
on request	AVM-160 G/HV
on request	AVM-165 G/HV
on request	AVM-200 G/HV
on request	APV-160 G/HV

Models AVM-100, 130, 160, 165, 200 G/HV and APV-160 G/HV. Dimensions in mm, weight in kg.

WELLOCK MC Machine Vise

AVC / APC · Taiwan

dimensions (mm/kg)
model_no	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P1	P2	P3	T	U	weight_kg
AVC-100 G/HV	350	101	100	430	130	80	45	85	65	15	18	105	48	19	150	150-330	150-240	150-200	22	60	21
AVC-130 G/HV	415	131	130	495	147	80	65	95	70	15	18	115	55	19	201	201-400	201-300	201-250	25	90	35
AVC-160 G/HV	495	161	160	576	160	81	80	105	85	15	18	130	58	19	245	250-480	250-370	250-330	25	90	52
AVC-165 G/HV	560	161	160	641	160	81	80	105	85	15	18	130	58	19	310	315-545	315-435	315-395	25	90	61
AVC-200 G/HV	580	201	200	670	170	90	100	110	90	18	18	150	63	19	290	290-550	290-430	290-370	28	120	75
APC-160 G/HV	560	161	160	641	155	81	80	100	85	15	18	130	58	19	310	315-545	315-435	315-395	25	90	61

Order references
Code	Model
on request	AVC-100 G/HV
on request	AVC-130 G/HV
on request	AVC-160 G/HV
on request	AVC-165 G/HV
on request	AVC-200 G/HV
on request	APC-160 G/HV

Models AVC-100, 130, 160, 165, 200 G/HV and APC-160 G/HV. Dimensions in mm, weight in kg. This table has no clamping force column.

MC Lockwell Super Vise

AVL · Taiwan

dimensions (mm/kg)
model_no	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	weight_kg
AVL-100 G/HV	324	104	102	437	130	104	41	85	73	15	18	86.5	45	19	140	314.5	20	55	17	22.5	58	27
AVL-125 G/HV	390	127	124.7	480	153	105	66	100	78	15	18	87.5	53	19	201	381.5	22.5	63	20	26.5	60	43
AVL-160 G/HV	485	161	159.2	625	168	120	58	115	86	18	18	80	53	21	295	479	25	63	20	26.5	98.4	71
AVL-165 G/HV	515	161	159.2	655	168	120	76	115	86	18	18	80	53	21	330	514	25	63	20	26.5	98.4	76
AVL-200 G/HV	535	202	199.5	660	178	128	75	120	101	18	18	95	58	19	320	534	31	73	20	29	120	98
AVL-235 G/HV	585	202	199.5	710	178	128	93	120	101	18	18	95	58	19	367.5	581.5	31	73	20	29	120	105

Order references
Code	Model
on request	AVL-100 G/HV
on request	AVL-125 G/HV
on request	AVL-160 G/HV
on request	AVL-165 G/HV
on request	AVL-200 G/HV
on request	AVL-235 G/HV

Models AVL-100, 125, 160, 165, 200, 235 G/HV. Dimensions in mm, weight in kg.

WELLOCK Air Hydraulic Power Vise

AMP · Taiwan

dimensions_and_capacity (mm/kg)
model_no	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	R	S	T	U	clamping_force_kn	weight_kg
AMP-100 (4")	320	100	98	435	145	140	45	100	85	15	18	105	45	—	100	200-300	55	18	22	60	32	32
AMP-150 (5")	380	130	128	520	157	140	45	105	85	15	18	110	52	—	150	200-380	62	15	25	90	60	52
AMP-160 (6")	400	160	158	540	160	140	45	105	87	15	18	120	55	—	160	210-400	62	15	25	90	60	58
AMP-165 (6")	490	160	158	630	160	140	45	105	87	15	18	120	55	—	250	210-490	65	15	25	90	60	65
AMP-180 (7")	460	180	178	600	170	140	72	110	90	18	18	130	60	—	200	220-460	70	18	28	120	90	75
AMP-200 (8")	470	200	200	610	170	140	72	110	90	18	18	140	60	—	200	230-470	70	18	28	120	90	82
AMP-300 (8")	570	200	200	710	170	140	72	110	90	18	18	140	60	—	300	230-570	70	18	28	120	90	93

Order references
Code	Model
on request	AMP-100 (4")
on request	AMP-150 (5")
on request	AMP-160 (6")
on request	AMP-165 (6")
on request	AMP-180 (7")
on request	AMP-200 (8")
on request	AMP-300 (8")

Models AMP-100, 150, 160, 165, 180, 200, 300. Dimensions in mm, weight in kg.
