Power vise
Models on this page
ALD-60 G/HVATW-689ATW-810HLD-60 G/HVTLD-40 G/HVTLD-60 G/HV
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.

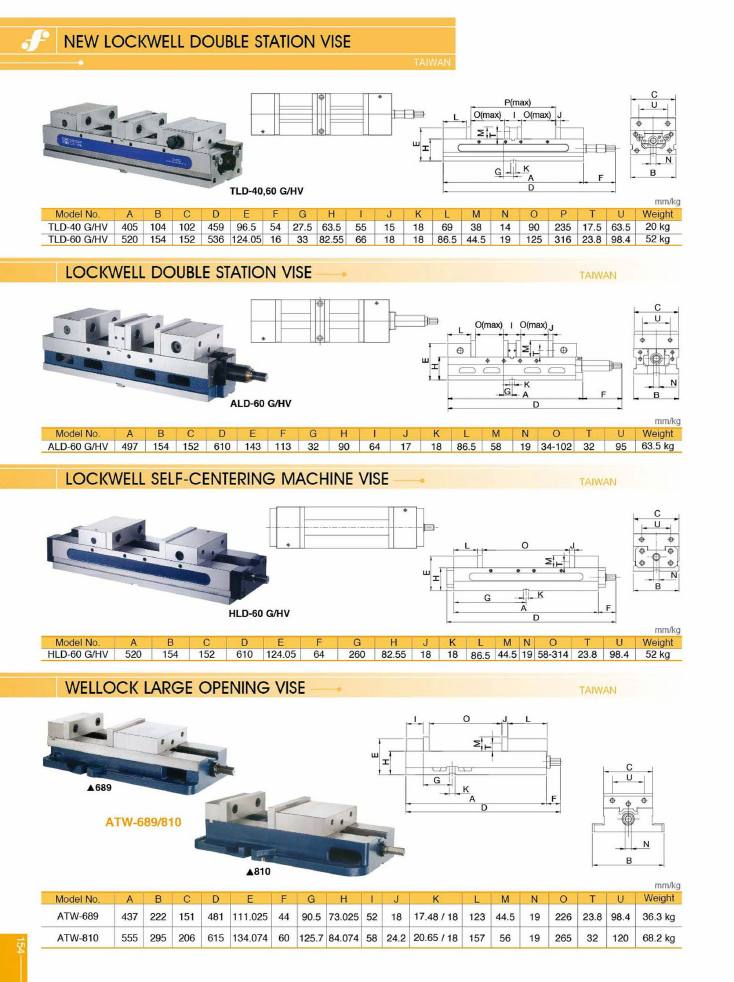

NEW LOCKWELL DOUBLE STATION VISE
TLD · Taiwan
| model_no | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | T | U | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TLD-40 G/HV | 405 | 104 | 102 | 459 | 96.5 | 54 | 27.5 | 63.5 | 55 | 15 | 18 | 69 | 38 | 14 | 90 | 235 | 17.5 | 63.5 | 20 kg |
| TLD-60 G/HV | 520 | 154 | 152 | 536 | 124.05 | 16 | 33 | 82.55 | 66 | 18 | 18 | 86.5 | 44.5 | 19 | 125 | 316 | 23.8 | 98.4 | 52 kg |
| Code | Model |
|---|---|
| on request | TLD-40 G/HV |
| on request | TLD-60 G/HV |
Illustrated as TLD-40,60 G/HV. Dimension diagram uses P(max) and two O(max) callouts.
LOCKWELL DOUBLE STATION VISE
ALD · Taiwan
| model_no | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | T | U | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ALD-60 G/HV | 497 | 154 | 152 | 610 | 143 | 113 | 32 | 90 | 64 | 17 | 18 | 86.5 | 58 | 19 | 34-102 | 32 | 95 | 63.5 kg |
| Code | Model |
|---|---|
| on request | ALD-60 G/HV |
Illustrated as ALD-60 G/HV.
LOCKWELL SELF-CENTERING MACHINE VISE
HLD · Taiwan
| model_no | A | B | C | D | E | F | G | H | J | K | L | M | N | O | T | U | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HLD-60 G/HV | 520 | 154 | 152 | 610 | 124.05 | 64 | 260 | 82.55 | 18 | 18 | 86.5 | 44.5 | 19 | 58-314 | 23.8 | 98.4 | 52 kg |
| Code | Model |
|---|---|
| on request | HLD-60 G/HV |
Illustrated as HLD-60 G/HV. This table has no I column — it runs F, G, H, J, K.
WELLOCK LARGE OPENING VISE
ATW · Taiwan
| model_no | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | T | U | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATW-689 | 437 | 222 | 151 | 481 | 111.025 | 44 | 90.5 | 73.025 | 52 | 18 | 17.48 / 18 | 123 | 44.5 | 19 | 226 | 23.8 | 98.4 | 36.3 kg |
| ATW-810 | 555 | 295 | 206 | 615 | 134.074 | 60 | 125.7 | 84.074 | 58 | 24.2 | 20.65 / 18 | 157 | 56 | 19 | 265 | 32 | 120 | 68.2 kg |
| Code | Model |
|---|---|
| on request | ATW-689 |
| on request | ATW-810 |
Illustrated as ATW-689/810. K is printed as a pair of values separated by a slash.
