Power vise

Models on this page

AMC-40 G/HVAMC-50 G/HVAMC-60 G/HVAMC-689 G/HVATD-460ATD-570ATW-675MG, MGR-40 GMG, MGR-60 GMP-50MP-60MP-80

Send us your details and we'll come back with pricing, availability and specifications.

ATD / ATW · Taiwan

dimensions (mm/kg)
model_no	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	T	U	weight
ATD-460	321	160	102	361	85.65	40	71	57.15	35.1	15	12	102	35	14	153	17.5	63.5	14 kg
ATD-570	368	194	126	415	97	47	85	63.5	40.5	17	16	120	38.1	16	178	20.6	79.4	21 kg
ATW-675	432	235	151	476	111.025	44	108	73.025	52	18	17.48 / 18	123	44.5	19	192	23.8	98.4	36 kg

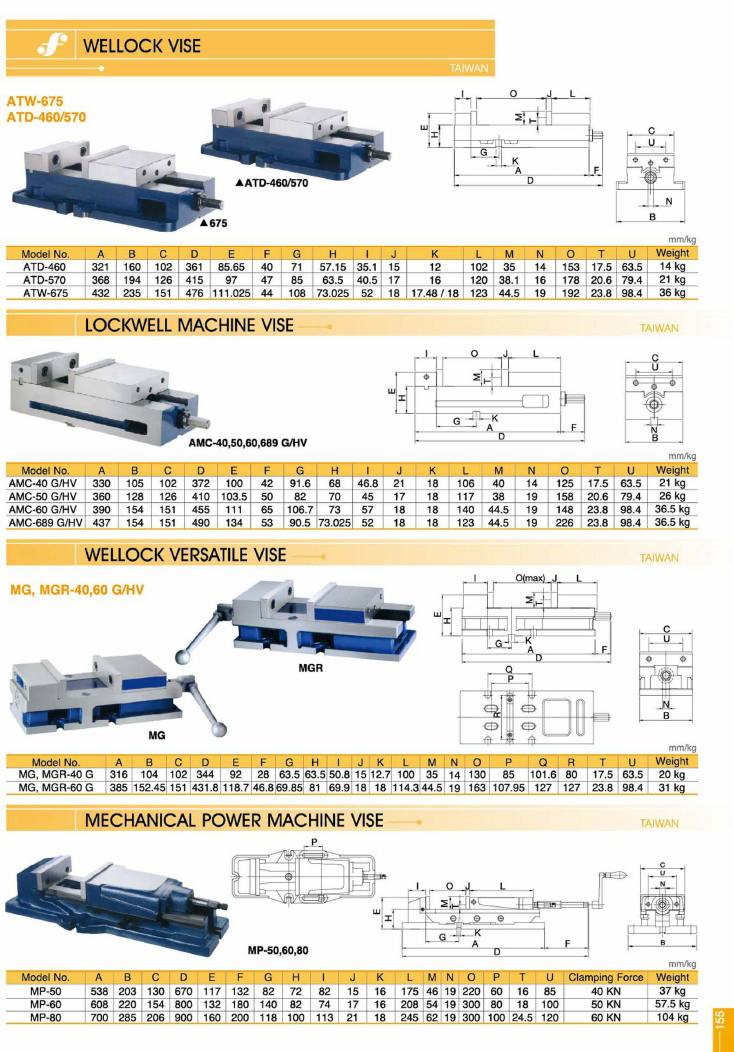

Illustrated as ATW-675 and ATD-460/570.

AMC · Taiwan

dimensions (mm/kg)
model_no	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	T	U	weight
AMC-40 G/HV	330	105	102	372	100	42	91.6	68	46.8	21	18	106	40	14	125	17.5	63.5	21 kg
AMC-50 G/HV	360	128	126	410	103.5	50	82	70	45	17	18	117	38	19	158	20.6	79.4	26 kg
AMC-60 G/HV	390	154	151	455	111	65	106.7	73	57	18	18	140	44.5	19	148	23.8	98.4	36.5 kg
AMC-689 G/HV	437	154	151	490	134	53	90.5	73.025	52	18	18	123	44.5	19	226	23.8	98.4	36.5 kg

Illustrated as AMC-40,50,60,689 G/HV.

MG / MGR · Taiwan

dimensions (mm/kg)
model_no	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	T	U	weight
MG, MGR-40 G	316	104	102	344	92	28	63.5	63.5	50.8	15	12.7	100	35	14	130	85	101.6	80	17.5	63.5	20 kg
MG, MGR-60 G	385	152.45	151	431.8	118.7	46.8	69.85	81	69.9	18	18	114.3	44.5	19	163	107.95	127	127	23.8	98.4	31 kg

Order references
Code	Model
on request	MG, MGR-40 G
on request	MG, MGR-60 G

Illustrated as MG, MGR-40,60 G/HV. MGR is the swivel-base variant; both share one dimension row. Drawing labels the opening as O(max).

MP · Taiwan

dimensions_and_clamping_force (mm/kg)
model_no	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	T	U	clamping_force	weight
MP-50	538	203	130	670	117	132	82	72	82	15	16	175	46	19	220	60	16	85	40 KN	37 kg
MP-60	608	220	154	800	132	180	140	82	74	17	16	208	54	19	300	80	18	100	50 KN	57.5 kg
MP-80	700	285	206	900	160	200	118	100	113	21	18	245	62	19	300	100	24.5	120	60 KN	104 kg

Illustrated as MP-50,60,80.
