Power vise

Models on this page

HP-40HP-50HP-60HP-80HPT-60VA-4VA-5VA-6AVA-6BVA-8

Send us your details and we'll come back with pricing, availability and specifications.

HP · Taiwan

dimensions_and_clamping_force (mm/kg)
model_no	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	T	U	clamping_force	weight
HP-40	435	165	104	525	93	90	63	58	68	11	16	153	36	14	170	10	70	25 KN	24 kg
HP-50	538	203	130	670	117	132	82	72	82	15	16	175	46	19	220	16	85	35 KN	37 kg
HP-60	608	220	154	800	132	180	140	82	74	17	16	208	54	19	300	18	100	44 KN	57.5 kg
HP-80	700	285	206	900	160	200	118	100	113	21	18	245	62	19	300	24.5	120	55 KN	104 kg

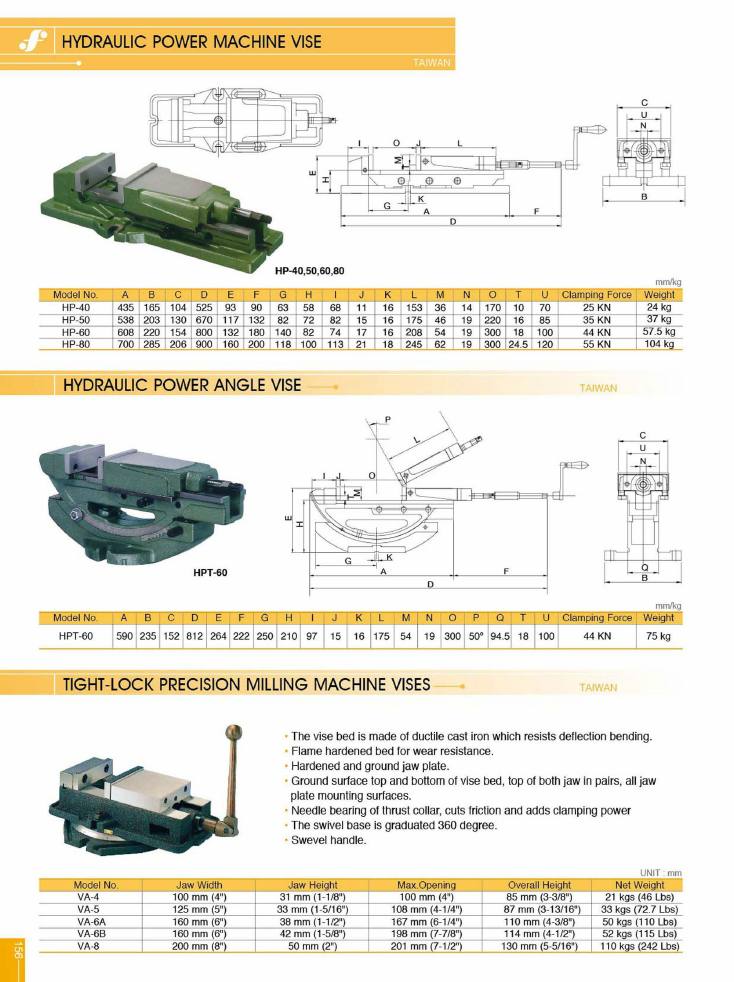

Illustrated as HP-40,50,60,80.

HPT · Taiwan

dimensions_and_clamping_force (mm/kg)
model_no	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	T	U	clamping_force	weight
HPT-60	590	235	152	812	264	222	250	210	97	15	16	175	54	19	300	50°	94.5	18	100	44 KN	75 kg

Order references
Code	Model
on request	HPT-60

Illustrated as HPT-60. Column P is an angle (50°), not a linear dimension.

VA · Taiwan

The vise bed is made of ductile cast iron which resists deflection bending.
Flame hardened bed for wear resistance.
Hardened and ground jaw plate.
Ground surface top and bottom of vise bed, top of both jaw in pairs, all jaw plate mounting surfaces.
Needle bearing of thrust collar, cuts friction and adds clamping power
The swivel base is graduated 360 degree.
Swevel handle.

specifications (mm)
model_no	jaw_width	jaw_height	max_opening	overall_height	net_weight
VA-4	100 mm (4")	31 mm (1-1/8")	100 mm (4")	85 mm (3-3/8")	21 kgs (46 Lbs)
VA-5	125 mm (5")	33 mm (1-5/16")	108 mm (4-1/4")	87 mm (3-13/16")	33 kgs (72.7 Lbs)
VA-6A	160 mm (6")	38 mm (1-1/2")	167 mm (6-1/4")	110 mm (4-3/8")	50 kgs (110 Lbs)
VA-6B	160 mm (6")	42 mm (1-5/8")	198 mm (7-7/8")	114 mm (4-1/2")	52 kgs (115 Lbs)
VA-8	200 mm (8")	50 mm (2")	201 mm (7-1/2")	130 mm (5-5/16")	110 kgs (242 Lbs)
