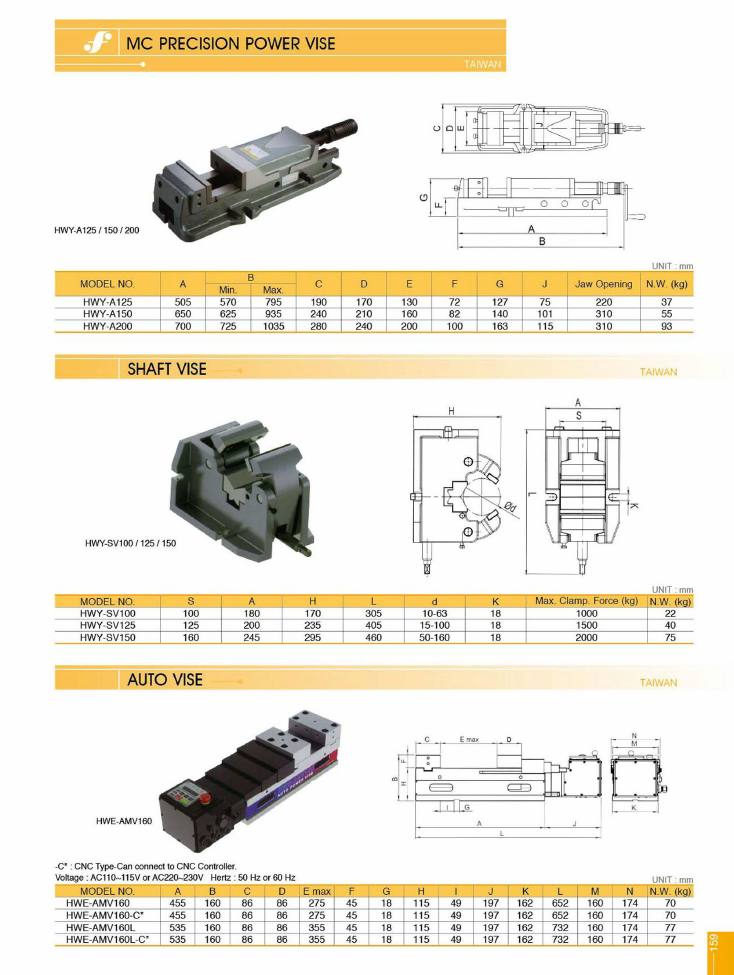

Frejoth accessory catalogue · Page 159
Power vise
Models on this page
HWE-AMV160HWE-AMV160-C*HWE-AMV160LHWE-AMV160L-C*HWY-A125HWY-A150HWY-A200HWY-SV100HWY-SV125HWY-SV150
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
MC PRECISION POWER VISE
HWY-A · Taiwan
| model_no | A | b_min | b_max | C | D | E | F | G | J | jaw_opening | n_w_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HWY-A125 | 505 | 570 | 795 | 190 | 170 | 130 | 72 | 127 | 75 | 220 | 37 |
| HWY-A150 | 650 | 625 | 935 | 240 | 210 | 160 | 82 | 140 | 101 | 310 | 55 |
| HWY-A200 | 700 | 725 | 1035 | 280 | 240 | 200 | 100 | 163 | 115 | 310 | 93 |
| Code | Model |
|---|---|
| on request | HWY-A125 |
| on request | HWY-A150 |
| on request | HWY-A200 |
Illustrated as HWY-A125 / 150 / 200. Column B is split into Min. and Max. sub-columns.
SHAFT VISE
HWY-SV · Taiwan
| model_no | S | A | H | L | d | K | max_clamp_force_kg | n_w_kg |
|---|---|---|---|---|---|---|---|---|
| HWY-SV100 | 100 | 180 | 170 | 305 | 10-63 | 18 | 1000 | 22 |
| HWY-SV125 | 125 | 200 | 235 | 405 | 15-100 | 18 | 1500 | 40 |
| HWY-SV150 | 160 | 245 | 295 | 460 | 50-160 | 18 | 2000 | 75 |
| Code | Model |
|---|---|
| on request | HWY-SV150 |
| on request | HWY-SV100 |
| on request | HWY-SV125 |
Illustrated as HWY-SV100 / 125 / 150. Column d is the clampable shaft diameter range (ød on the drawing).
AUTO VISE
HWE-AMV · Taiwan
| model_no | A | B | C | D | e_max | F | G | H | I | J | K | L | M | N | n_w_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWE-AMV160 | 455 | 160 | 86 | 86 | 275 | 45 | 18 | 115 | 49 | 197 | 162 | 652 | 160 | 174 | 70 |
| HWE-AMV160-C* | 455 | 160 | 86 | 86 | 275 | 45 | 18 | 115 | 49 | 197 | 162 | 652 | 160 | 174 | 70 |
| HWE-AMV160L | 535 | 160 | 86 | 86 | 355 | 45 | 18 | 115 | 49 | 197 | 162 | 732 | 160 | 174 | 77 |
| HWE-AMV160L-C* | 535 | 160 | 86 | 86 | 355 | 45 | 18 | 115 | 49 | 197 | 162 | 732 | 160 | 174 | 77 |
| Code | Model |
|---|---|
| on request | HWE-AMV160 |
| on request | HWE-AMV160-C* |
| on request | HWE-AMV160L |
| on request | HWE-AMV160L-C* |
Illustrated as HWE-AMV160. -C* : CNC Type-Can connect to CNC Controller. Voltage : AC110~115V or AC220~230V. Hertz : 50 Hz or 60 Hz.
