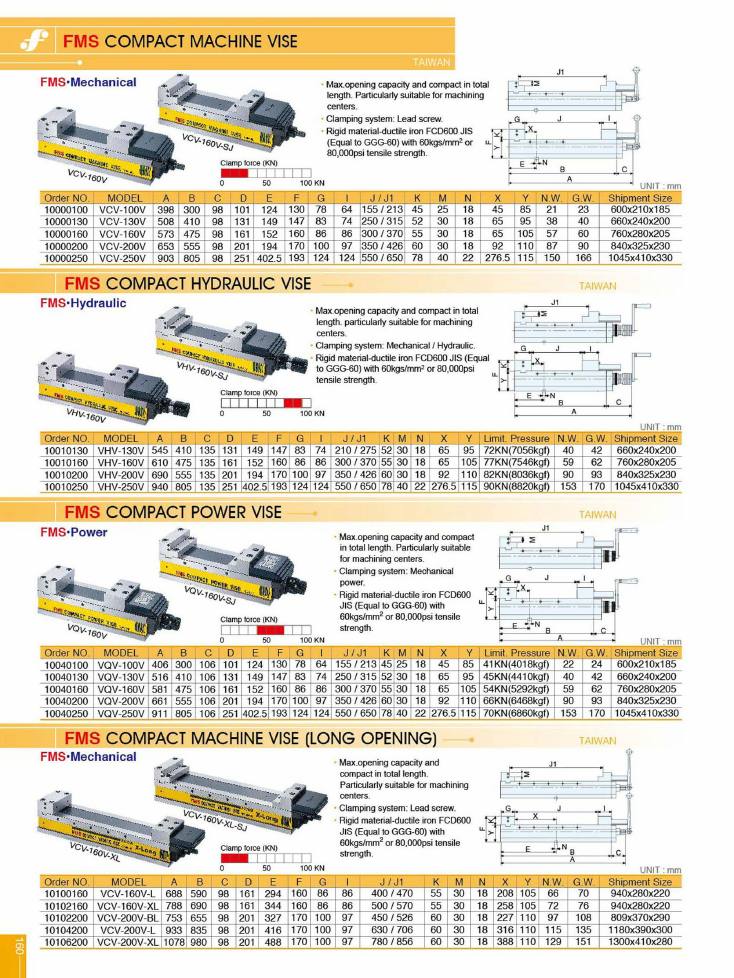

FMS COMPACT MACHINE VISE
VCV · Taiwan
- Max.opening capacity and compact in total length. Particularly suitable for machining centers.
- Clamping system: Lead screw.
- Rigid material-ductile iron FCD600 JIS (Equal to GGG-60) with 60kgs/mm2 or 80,000psi tensile strength.
| order_no | model | A | B | C | D | E | F | G | I | j_j1 | K | M | N | X | Y | n_w | g_w | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10000100 | VCV-100V | 398 | 300 | 98 | 101 | 124 | 130 | 78 | 64 | 155 / 213 | 45 | 25 | 18 | 45 | 85 | 21 | 23 | 600x210x185 |
| 10000130 | VCV-130V | 508 | 410 | 98 | 131 | 149 | 147 | 83 | 74 | 250 / 315 | 52 | 30 | 18 | 65 | 95 | 38 | 40 | 660x240x200 |
| 10000160 | VCV-160V | 573 | 475 | 98 | 161 | 152 | 160 | 86 | 86 | 300 / 370 | 55 | 30 | 18 | 65 | 105 | 57 | 60 | 760x280x205 |
| 10000200 | VCV-200V | 653 | 555 | 98 | 201 | 194 | 170 | 100 | 97 | 350 / 426 | 60 | 30 | 18 | 92 | 110 | 87 | 90 | 840x325x230 |
| 10000250 | VCV-250V | 903 | 805 | 98 | 251 | 402.5 | 193 | 124 | 124 | 550 / 650 | 78 | 40 | 22 | 276.5 | 115 | 150 | 166 | 1045x410x330 |
| Code | Model |
|---|---|
| 10000100 | VCV-100V |
| 10000130 | VCV-130V |
| 10000160 | VCV-160V |
| 10000200 | VCV-200V |
| 10000250 | VCV-250V |
Labelled FMS-Mechanical. Illustrated as VCV-160V-SJ and VCV-160V. A clamp-force bar graphic is printed on a 0-100 KN scale but carries no numeric value.
FMS COMPACT HYDRAULIC VISE
VHV · Taiwan
- Max.opening capacity and compact in total length. particularly suitable for machining centers.
- Clamping system: Mechanical / Hydraulic.
- Rigid material-ductile iron FCD600 JIS (Equal to GGG-60) with 60kgs/mm2 or 80,000psi tensile strength.
| order_no | model | A | B | C | D | E | F | G | I | j_j1 | K | M | N | X | Y | limit_pressure | n_w | g_w | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10010130 | VHV-130V | 545 | 410 | 135 | 131 | 149 | 147 | 83 | 74 | 210 / 275 | 52 | 30 | 18 | 65 | 95 | 72KN(7056kgf) | 40 | 42 | 660x240x200 |
| 10010160 | VHV-160V | 610 | 475 | 135 | 161 | 152 | 160 | 86 | 86 | 300 / 370 | 55 | 30 | 18 | 65 | 105 | 77KN(7546kgf) | 59 | 62 | 760x280x205 |
| 10010200 | VHV-200V | 690 | 555 | 135 | 201 | 194 | 170 | 100 | 97 | 350 / 426 | 60 | 30 | 18 | 92 | 110 | 82KN(8036kgf) | 90 | 93 | 840x325x230 |
| 10010250 | VHV-250V | 940 | 805 | 135 | 251 | 402.5 | 193 | 124 | 124 | 550 / 650 | 78 | 40 | 22 | 276.5 | 115 | 90KN(8820kgf) | 153 | 170 | 1045x410x330 |
| Code | Model |
|---|---|
| 10010130 | VHV-130V |
| 10010160 | VHV-160V |
| 10010200 | VHV-200V |
| 10010250 | VHV-250V |
Labelled FMS-Hydraulic. Illustrated as VHV-160V-SJ and VHV-160V. A clamp-force bar graphic is printed on a 0-100 KN scale but carries no numeric value. There is no 100V size in this range.
FMS COMPACT POWER VISE
VQV · Taiwan
- Max opening capacity and compact in total length. Particularly suitable for machining centers.
- Clamping system: Mechanical power.
- Rigid material-ductile iron FCD600 JIS (Equal to GGG-60) with 60kgs/mm2 or 80,000psi tensile strength.
| order_no | model | A | B | C | D | E | F | G | I | j_j1 | K | M | N | X | Y | limit_pressure | n_w | g_w | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10040100 | VQV-100V | 406 | 300 | 106 | 101 | 124 | 130 | 78 | 64 | 155 / 213 | 45 | 25 | 18 | 45 | 85 | 41KN(4018kgf) | 22 | 24 | 600x210x185 |
| 10040130 | VQV-130V | 516 | 410 | 106 | 131 | 149 | 147 | 83 | 74 | 250 / 315 | 52 | 30 | 18 | 65 | 95 | 45KN(4410kgf) | 40 | 42 | 660x240x200 |
| 10040160 | VQV-160V | 581 | 475 | 106 | 161 | 152 | 160 | 86 | 86 | 300 / 370 | 55 | 30 | 18 | 65 | 105 | 54KN(5292kgf) | 59 | 62 | 760x280x205 |
| 10040200 | VQV-200V | 661 | 555 | 106 | 201 | 194 | 170 | 100 | 97 | 350 / 426 | 60 | 30 | 18 | 92 | 110 | 66KN(6468kgf) | 90 | 93 | 840x325x230 |
| 10040250 | VQV-250V | 911 | 805 | 106 | 251 | 402.5 | 193 | 124 | 124 | 550 / 650 | 78 | 40 | 22 | 276.5 | 115 | 70KN(6860kgf) | 153 | 170 | 1045x410x330 |
| Code | Model |
|---|---|
| 10040100 | VQV-100V |
| 10040130 | VQV-130V |
| 10040160 | VQV-160V |
| 10040200 | VQV-200V |
| 10040250 | VQV-250V |
Labelled FMS-Power. Illustrated as VQV-160V-SJ and VQV-160V. A clamp-force bar graphic is printed on a 0-100 KN scale but carries no numeric value.
FMS COMPACT MACHINE VISE (LONG OPENING)
VCV (long opening) · Taiwan
- Max.opening capacity and compact in total length. Particularly suitable for machining centers.
- Clamping system: Lead screw.
- Rigid material-ductile iron FCD600 JIS (Equal to GGG-60) with 60kgs/mm2 or 80,000psi tensile strength.
| order_no | model | A | B | C | D | E | F | G | I | j_j1 | K | M | N | X | Y | n_w | g_w | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10100160 | VCV-160V-L | 688 | 590 | 98 | 161 | 294 | 160 | 86 | 86 | 400 / 470 | 55 | 30 | 18 | 208 | 105 | 66 | 70 | 940x280x220 |
| 10102160 | VCV-160V-XL | 788 | 690 | 98 | 161 | 344 | 160 | 86 | 86 | 500 / 570 | 55 | 30 | 18 | 258 | 105 | 72 | 76 | 940x280x220 |
| 10102200 | VCV-200V-BL | 753 | 655 | 98 | 201 | 327 | 170 | 100 | 97 | 450 / 526 | 60 | 30 | 18 | 227 | 110 | 97 | 108 | 809x370x290 |
| 10104200 | VCV-200V-L | 933 | 835 | 98 | 201 | 416 | 170 | 100 | 97 | 630 / 706 | 60 | 30 | 18 | 316 | 110 | 115 | 135 | 1180x390x300 |
| 10106200 | VCV-200V-XL | 1078 | 980 | 98 | 201 | 488 | 170 | 100 | 97 | 780 / 856 | 60 | 30 | 18 | 388 | 110 | 129 | 151 | 1300x410x280 |
| Code | Model |
|---|---|
| 10100160 | VCV-160V-L |
| 10102160 | VCV-160V-XL |
| 10102200 | VCV-200V-BL |
| 10104200 | VCV-200V-L |
| 10106200 | VCV-200V-XL |
Labelled FMS-Mechanical. Illustrated as VCV-160V-XL-SJ and VCV-160V-XL. A clamp-force bar graphic is printed on a 0-100 KN scale but carries no numeric value.
