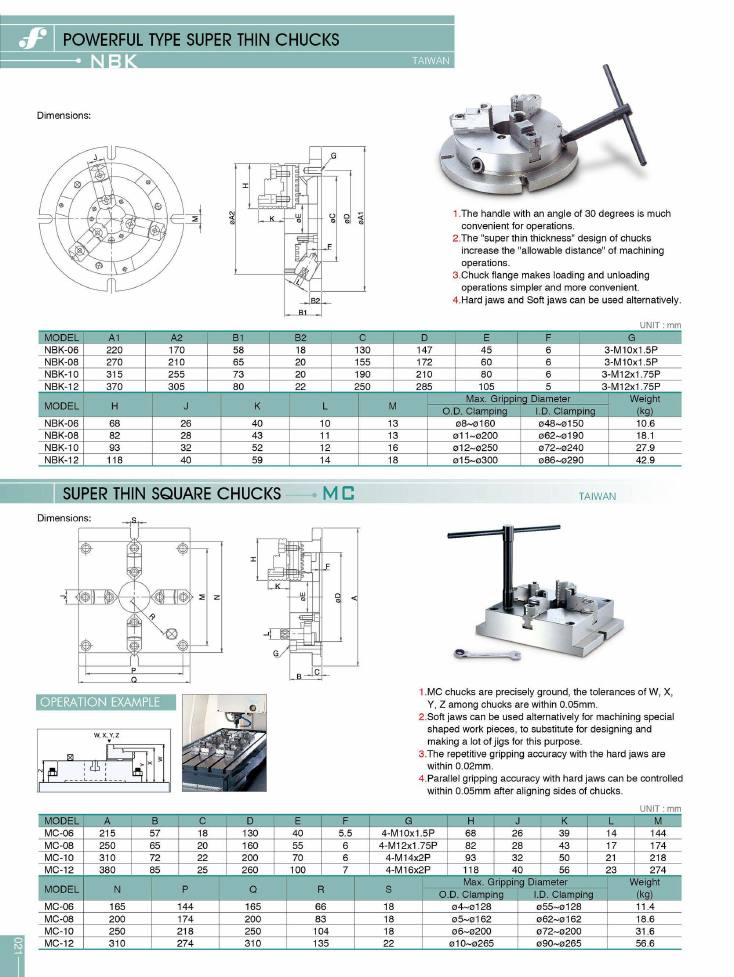

Frejoth accessory catalogue · Page 21
Powerful Type Super Thin Chucks
Models on this page
MC-06MC-08MC-10MC-12NBK-06NBK-08NBK-10NBK-12
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Powerful Type Super Thin Chucks
NBK · Taiwan
- 1. The handle with an angle of 30 degrees is much convenient for operations.
- 2. The "super thin thickness" design of chucks increase the "allowable distance" of machining operations.
- 3. Chuck flange makes loading and unloading operations simpler and more convenient.
- 4. Hard jaws and Soft jaws can be used alternatively.
| model | a1 | a2 | b1 | b2 | c | d | e | f | g |
|---|---|---|---|---|---|---|---|---|---|
| NBK-06 | 220 | 170 | 58 | 18 | 130 | 147 | 45 | 6 | 3-M10x1.5P |
| NBK-08 | 270 | 210 | 65 | 20 | 155 | 172 | 60 | 6 | 3-M10x1.5P |
| NBK-10 | 315 | 255 | 73 | 20 | 190 | 210 | 80 | 6 | 3-M12x1.75P |
| NBK-12 | 370 | 305 | 80 | 22 | 250 | 285 | 105 | 5 | 3-M12x1.75P |
| model | h | j | k | l | m | max_gripping_diameter_od_clamping | max_gripping_diameter_id_clamping | weight_kg |
|---|---|---|---|---|---|---|---|---|
| NBK-06 | 68 | 26 | 40 | 10 | 13 | ø8~ø160 | ø48~ø150 | 10.6 |
| NBK-08 | 82 | 28 | 43 | 11 | 13 | ø11~ø200 | ø62~ø190 | 18.1 |
| NBK-10 | 93 | 32 | 52 | 12 | 16 | ø12~ø250 | ø72~ø240 | 27.9 |
| NBK-12 | 118 | 40 | 59 | 14 | 18 | ø15~ø300 | ø86~ø290 | 42.9 |
| Code | Model |
|---|---|
| on request | NBK-06 |
| on request | NBK-08 |
| on request | NBK-10 |
| on request | NBK-12 |
Super Thin Square Chucks
MC · Taiwan
- 1. MC chucks are precisely ground, the tolerances of W, X, Y, Z among chucks are within 0.05mm.
- 2. Soft jaws can be used alternatively for machining special shaped work pieces, to substitute for designing and making a lot of jigs for this purpose.
- 3. The repetitive gripping accuracy with the hard jaws are within 0.02mm.
- 4. Parallel gripping accuracy with hard jaws can be controlled within 0.05mm after aligning sides of chucks.
| model | a | b | c | d | e | f | g | h | j | k | l | m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MC-06 | 215 | 57 | 18 | 130 | 40 | 5.5 | 4-M10x1.5P | 68 | 26 | 39 | 14 | 144 |
| MC-08 | 250 | 65 | 20 | 160 | 55 | 6 | 4-M12x1.75P | 82 | 28 | 43 | 17 | 174 |
| MC-10 | 310 | 72 | 22 | 200 | 70 | 6 | 4-M14x2P | 93 | 32 | 50 | 21 | 218 |
| MC-12 | 380 | 85 | 25 | 260 | 100 | 7 | 4-M16x2P | 118 | 40 | 56 | 23 | 274 |
| model | n | p | q | r | s | max_gripping_diameter_od_clamping | max_gripping_diameter_id_clamping | weight_kg |
|---|---|---|---|---|---|---|---|---|
| MC-06 | 165 | 144 | 165 | 66 | 18 | ø4~ø128 | ø55~ø128 | 11.4 |
| MC-08 | 200 | 174 | 200 | 83 | 18 | ø5~ø162 | ø62~ø162 | 18.6 |
| MC-10 | 250 | 218 | 250 | 104 | 18 | ø6~ø200 | ø72~ø200 | 31.6 |
| MC-12 | 310 | 274 | 310 | 135 | 22 | ø10~ø265 | ø90~ø265 | 56.6 |
| Code | Model |
|---|---|
| on request | MC-06 |
| on request | MC-08 |
| on request | MC-10 |
| on request | MC-12 |
Operation example panel shows the chuck mounted on a machine table with W, X, Y, Z reference dimensions.
