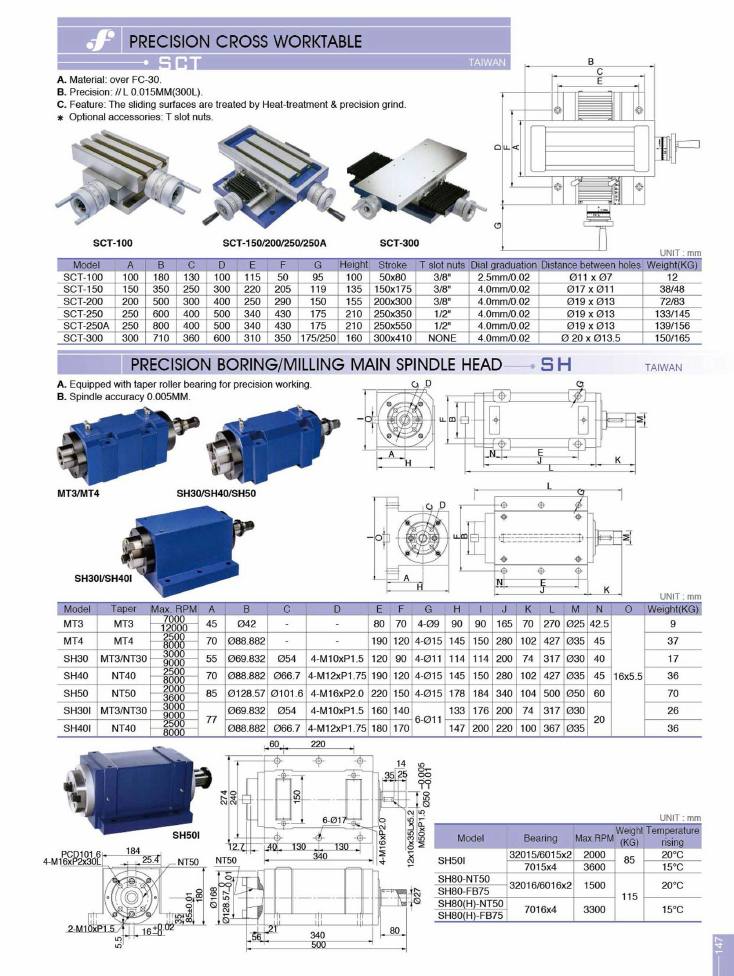

Frejoth accessory catalogue · Page 147
Precision Cross Worktable
Models on this page
MT3MT4SCT-100SCT-150SCT-200SCT-250SCT-250ASCT-300SH30SH30ISH40SH40ISH50SH50ISH80-FB75SH80-NT50SH80(H)-FB75SH80(H)-NT50
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Precision Cross Worktable
SCT · Taiwan
- Material: over FC-30.
- Precision: // L 0.015MM(300L).
- Feature: The sliding surfaces are treated by Heat-treatment & precision grind.
| model | a | b | c | d | e | f | g | height | stroke | t_slot_nuts | dial_graduation | distance_between_holes | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCT-100 | 100 | 180 | 130 | 100 | 115 | 50 | 95 | 100 | 50x80 | 3/8" | 2.5mm/0.02 | Ø11 x Ø7 | 12 |
| SCT-150 | 150 | 350 | 250 | 300 | 220 | 205 | 119 | 135 | 150x175 | 3/8" | 4.0mm/0.02 | Ø17 x Ø11 | 38/48 |
| SCT-200 | 200 | 500 | 300 | 400 | 250 | 290 | 150 | 155 | 200x300 | 3/8" | 4.0mm/0.02 | Ø19 x Ø13 | 72/83 |
| SCT-250 | 250 | 600 | 400 | 500 | 340 | 430 | 175 | 210 | 250x350 | 1/2" | 4.0mm/0.02 | Ø19 x Ø13 | 133/145 |
| SCT-250A | 250 | 800 | 400 | 500 | 340 | 430 | 175 | 210 | 250x550 | 1/2" | 4.0mm/0.02 | Ø19 x Ø13 | 139/156 |
| SCT-300 | 300 | 710 | 360 | 600 | 310 | 350 | 175/250 | 160 | 300x410 | NONE | 4.0mm/0.02 | Ø 20 x Ø13.5 | 150/165 |
| Code | Model |
|---|---|
| on request | SCT-100 |
| on request | SCT-150 |
| on request | SCT-200 |
| on request | SCT-250 |
| on request | SCT-250A |
| on request | SCT-300 |
Optional accessories: T slot nuts. Illustrated variants: SCT-100, SCT-150/200/250/250A, SCT-300.
Precision Boring/Milling Main Spindle Head
SH · Taiwan
- Equipped with taper roller bearing for precision working.
- Spindle accuracy 0.005MM.
| model | taper | max_rpm | a | b | c | d | e | f | g | h | i | j | k | l | m | n | o | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MT3 | MT3 | 7000/12000 | 45 | Ø42 | - | - | 80 | 70 | 4-Ø9 | 90 | 90 | 165 | 70 | 270 | Ø25 | 42.5 | 16x5.5 | 9 |
| MT4 | MT4 | 2500/8000 | 70 | Ø88.882 | - | - | 190 | 120 | 4-Ø15 | 145 | 150 | 280 | 102 | 427 | Ø35 | 45 | 16x5.5 | 37 |
| SH30 | MT3/NT30 | 3000/9000 | 55 | Ø69.832 | Ø54 | 4-M10xP1.5 | 120 | 90 | 4-Ø11 | 114 | 114 | 200 | 74 | 317 | Ø30 | 40 | 16x5.5 | 17 |
| SH40 | NT40 | 2500/8000 | 70 | Ø88.882 | Ø66.7 | 4-M12xP1.75 | 190 | 120 | 4-Ø15 | 145 | 150 | 280 | 102 | 427 | Ø35 | 45 | 16x5.5 | 36 |
| SH50 | NT50 | 2000/3600 | 85 | Ø128.57 | Ø101.6 | 4-M16xP2.0 | 220 | 150 | 4-Ø15 | 178 | 184 | 340 | 104 | 500 | Ø50 | 60 | 16x5.5 | 70 |
| SH30I | MT3/NT30 | 3000/9000 | 77 | Ø69.832 | Ø54 | 4-M10xP1.5 | 160 | 140 | 6-Ø11 | 133 | 176 | 200 | 74 | 317 | Ø30 | 20 | 16x5.5 | 26 |
| SH40I | NT40 | 2500/8000 | 77 | Ø88.882 | Ø66.7 | 4-M12xP1.75 | 180 | 170 | 6-Ø11 | 147 | 200 | 220 | 100 | 367 | Ø35 | 20 | 16x5.5 | 36 |
| model | bearing | max_rpm | weight_kg | temperature_rising |
|---|---|---|---|---|
| SH50I | 32015/6015x2 | 2000 | 85 | 20°C |
| SH50I | 7015x4 | 3600 | 85 | 15°C |
| SH80-NT50 | 32016/6016x2 | 1500 | 115 | 20°C |
| SH80-FB75 | 32016/6016x2 | 1500 | 115 | 20°C |
| SH80(H)-NT50 | 7016x4 | 3300 | 115 | 15°C |
| SH80(H)-FB75 | 7016x4 | 3300 | 115 | 15°C |
| Code | Model |
|---|---|
| on request | MT3 |
| on request | MT4 |
| on request | SH30 |
| on request | SH40 |
| on request | SH50 |
| on request | SH30I |
| on request | SH40I |
| on request | SH50I |
| on request | SH80-NT50 |
| on request | SH80-FB75 |
| on request | SH80(H)-NT50 |
| on request | SH80(H)-FB75 |
Illustrated variants: MT3/MT4, SH30/SH40/SH50, SH30I/SH40I, SH50I.
