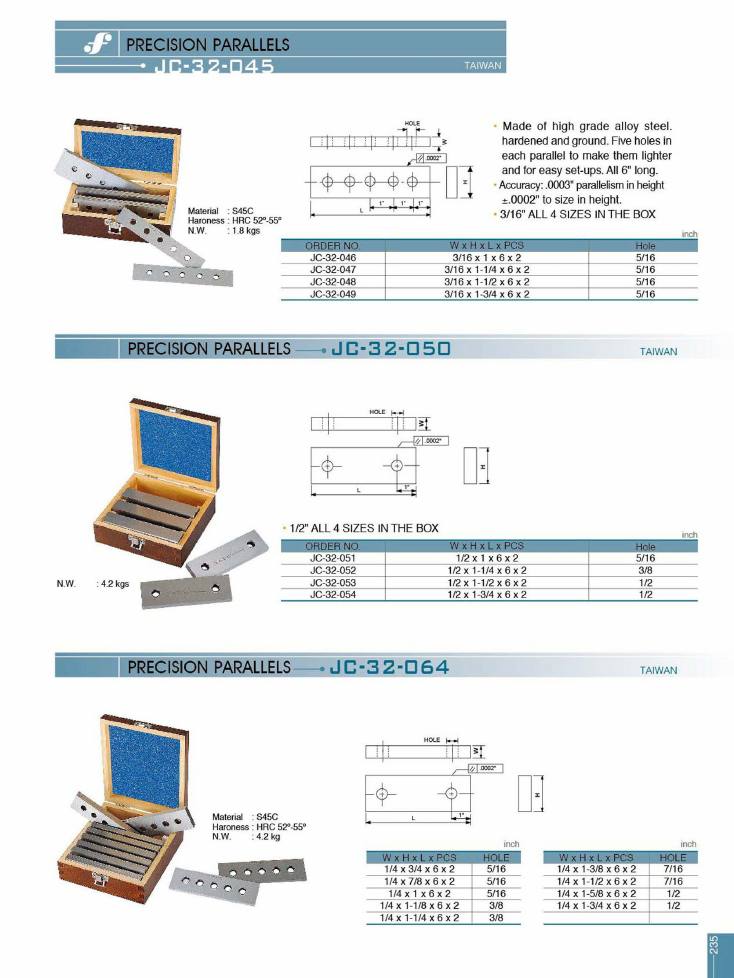

PRECISION PARALLELS
Models on this page
JC-32-045JC-32-046JC-32-047JC-32-048JC-32-049JC-32-050JC-32-051JC-32-052JC-32-053JC-32-054JC-32-064
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
PRECISION PARALLELS
JC-32-045 · TAIWAN
- Made of high grade alloy steel. hardened and ground. Five holes in each parallel to make them lighter and for easy set-ups. All 6" long.
- Accuracy: .0003" parallelism in height ±.0002" to size in height.
- 3/16" ALL 4 SIZES IN THE BOX
| order_no | w_x_h_x_l_x_pcs | hole |
|---|---|---|
| JC-32-046 | 3/16 x 1 x 6 x 2 | 5/16 |
| JC-32-047 | 3/16 x 1-1/4 x 6 x 2 | 5/16 |
| JC-32-048 | 3/16 x 1-1/2 x 6 x 2 | 5/16 |
| JC-32-049 | 3/16 x 1-3/4 x 6 x 2 | 5/16 |
| Code | Model |
|---|---|
| JC-32-064 | JC-32-064 |
| JC-32-045 | JC-32-045 |
| JC-32-046 | JC-32-046 |
| JC-32-047 | JC-32-047 |
| JC-32-048 | JC-32-048 |
| JC-32-049 | JC-32-049 |
| JC-32-050 | JC-32-050 |
| JC-32-051 | JC-32-051 |
| JC-32-052 | JC-32-052 |
| JC-32-053 | JC-32-053 |
| JC-32-054 | JC-32-054 |
Set spec block: Material : S45C / Haroness : HRC 52°-55° / N.W. : 1.8 kgs. Drawing notes .0002" parallelism callout.
PRECISION PARALLELS
JC-32-050 · TAIWAN
- 1/2" ALL 4 SIZES IN THE BOX
| order_no | w_x_h_x_l_x_pcs | hole |
|---|---|---|
| JC-32-051 | 1/2 x 1 x 6 x 2 | 5/16 |
| JC-32-052 | 1/2 x 1-1/4 x 6 x 2 | 3/8 |
| JC-32-053 | 1/2 x 1-1/2 x 6 x 2 | 1/2 |
| JC-32-054 | 1/2 x 1-3/4 x 6 x 2 | 1/2 |
Set weight printed beside the photo: N.W. : 4.2 kgs. Drawing notes .0002" parallelism callout, two holes per parallel.
PRECISION PARALLELS
JC-32-064 · TAIWAN
| w_x_h_x_l_x_pcs | hole |
|---|---|
| 1/4 x 3/4 x 6 x 2 | 5/16 |
| 1/4 x 7/8 x 6 x 2 | 5/16 |
| 1/4 x 1 x 6 x 2 | 5/16 |
| 1/4 x 1-1/8 x 6 x 2 | 3/8 |
| 1/4 x 1-1/4 x 6 x 2 | 3/8 |
| 1/4 x 1-3/8 x 6 x 2 | 7/16 |
| 1/4 x 1-1/2 x 6 x 2 | 7/16 |
| 1/4 x 1-5/8 x 6 x 2 | 1/2 |
| 1/4 x 1-3/4 x 6 x 2 | 1/2 |
Set spec block: Material : S45C / Haroness : HRC 52°-55° / N.W. : 4.2 kg. Contents listed in two side-by-side tables with no per-size order numbers; the two tables are one continuous list of 9 sizes.
