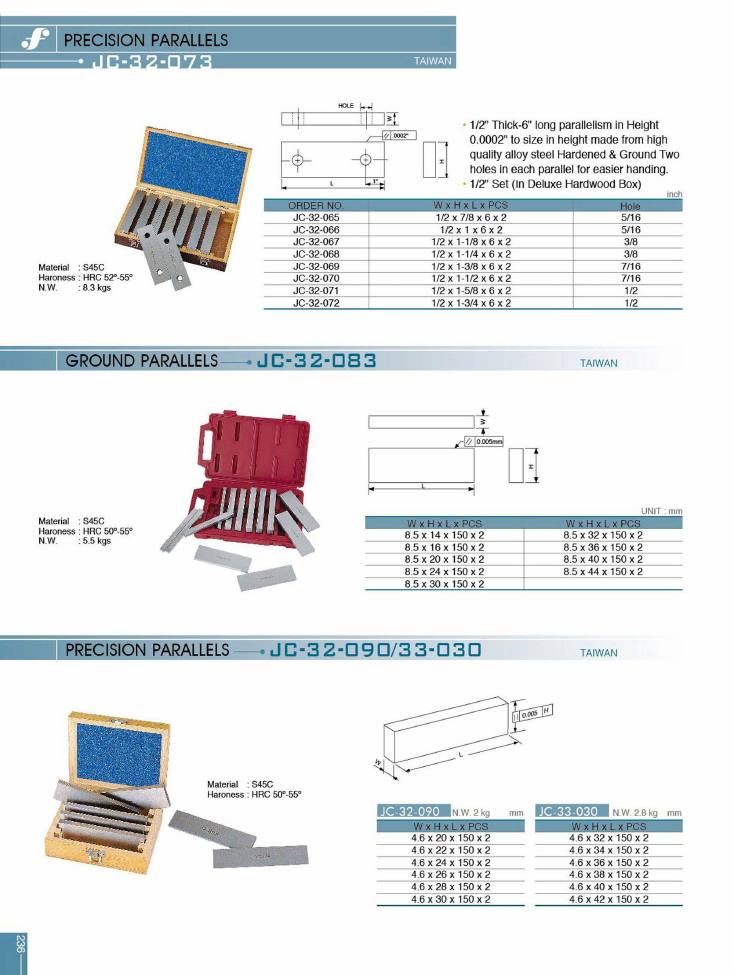

Frejoth accessory catalogue · Page 236
Precision Parallels
Models on this page
JC-32-065JC-32-066JC-32-067JC-32-068JC-32-069JC-32-070JC-32-071JC-32-072JC-32-073JC-32-083JC-32-090JC-33-030
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Precision Parallels
JC-32-073 · Taiwan
- 1/2" Thick-6" long parallelism in Height 0.0002" to size in height made from high quality alloy steel Hardened & Ground Two holes in each parallel for easier handing.
- 1/2" Set (In Deluxe Hardwood Box)
| order_no | w_x_h_x_l_x_pcs | hole |
|---|---|---|
| JC-32-065 | 1/2 x 7/8 x 6 x 2 | 5/16 |
| JC-32-066 | 1/2 x 1 x 6 x 2 | 5/16 |
| JC-32-067 | 1/2 x 1-1/8 x 6 x 2 | 3/8 |
| JC-32-068 | 1/2 x 1-1/4 x 6 x 2 | 3/8 |
| JC-32-069 | 1/2 x 1-3/8 x 6 x 2 | 7/16 |
| JC-32-070 | 1/2 x 1-1/2 x 6 x 2 | 7/16 |
| JC-32-071 | 1/2 x 1-5/8 x 6 x 2 | 1/2 |
| JC-32-072 | 1/2 x 1-3/4 x 6 x 2 | 1/2 |
| Code | Model |
|---|---|
| JC-32-073 | JC-32-073 |
| JC-32-065 | JC-32-065 |
| JC-32-066 | JC-32-066 |
| JC-32-067 | JC-32-067 |
| JC-32-068 | JC-32-068 |
| JC-32-069 | JC-32-069 |
| JC-32-070 | JC-32-070 |
| JC-32-071 | JC-32-071 |
| JC-32-072 | JC-32-072 |
| JC-32-090 | JC-32-090 |
| JC-33-030 | JC-33-030 |
Material: S45C. Hardness: HRC 52°-55°. N.W.: 8.3 kgs. Flatness/parallelism callout on drawing: 0.0002".
Ground Parallels
JC-32-083 · Taiwan
| w_x_h_x_l_x_pcs_col1 | w_x_h_x_l_x_pcs_col2 |
|---|---|
| 8.5 x 14 x 150 x 2 | 8.5 x 32 x 150 x 2 |
| 8.5 x 16 x 150 x 2 | 8.5 x 36 x 150 x 2 |
| 8.5 x 20 x 150 x 2 | 8.5 x 40 x 150 x 2 |
| 8.5 x 24 x 150 x 2 | 8.5 x 44 x 150 x 2 |
| 8.5 x 30 x 150 x 2 | — |
| Code | Model |
|---|---|
| JC-32-083 | JC-32-083 |
Material: S45C. Hardness: HRC 50°-55°. N.W.: 5.5 kgs. Parallelism callout on drawing: 0.005mm. Supplied as a set in a plastic case.
Precision Parallels
JC-32-090/33-030 · Taiwan
| w_x_h_x_l_x_pcs |
|---|
| 4.6 x 20 x 150 x 2 |
| 4.6 x 22 x 150 x 2 |
| 4.6 x 24 x 150 x 2 |
| 4.6 x 26 x 150 x 2 |
| 4.6 x 28 x 150 x 2 |
| 4.6 x 30 x 150 x 2 |
| w_x_h_x_l_x_pcs |
|---|
| 4.6 x 32 x 150 x 2 |
| 4.6 x 34 x 150 x 2 |
| 4.6 x 36 x 150 x 2 |
| 4.6 x 38 x 150 x 2 |
| 4.6 x 40 x 150 x 2 |
| 4.6 x 42 x 150 x 2 |
Material: S45C. Hardness: HRC 50°-55°. Parallelism callout on drawing: 0.005. Two sets: JC-32-090 (N.W. 2 kg) and JC-33-030 (N.W. 2.8 kg), each supplied in a hardwood box.
