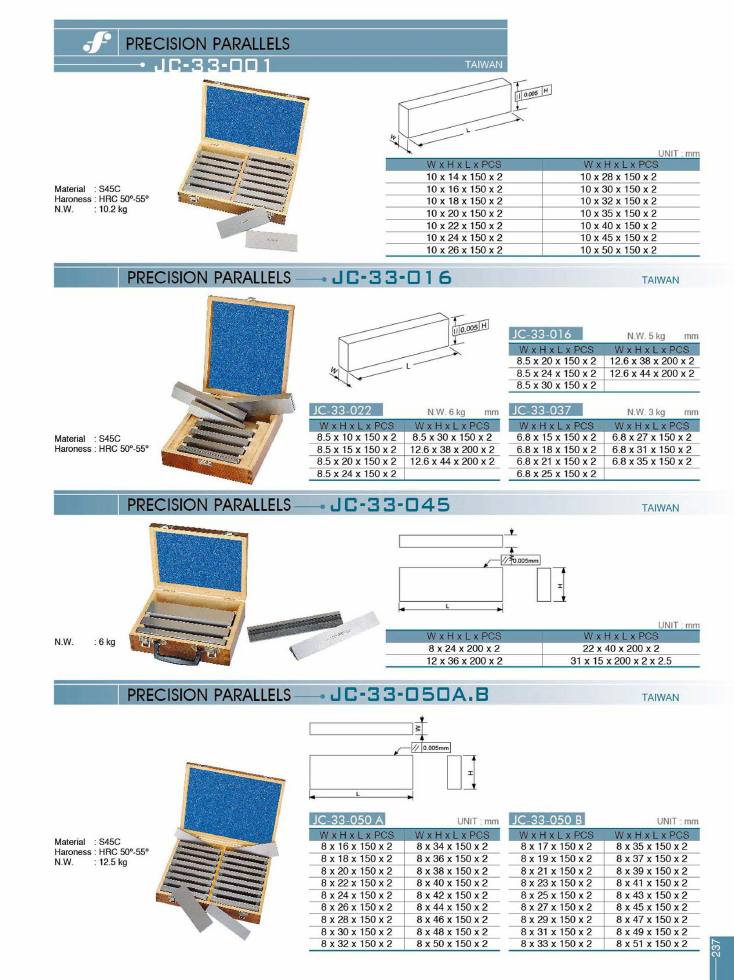

PRECISION PARALLELS
Models on this page
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
PRECISION PARALLELS
| w_x_h_x_l_x_pcs |
|---|
| 10 x 14 x 150 x 2 |
| 10 x 16 x 150 x 2 |
| 10 x 18 x 150 x 2 |
| 10 x 20 x 150 x 2 |
| 10 x 22 x 150 x 2 |
| 10 x 24 x 150 x 2 |
| 10 x 26 x 150 x 2 |
| 10 x 28 x 150 x 2 |
| 10 x 30 x 150 x 2 |
| 10 x 32 x 150 x 2 |
| 10 x 35 x 150 x 2 |
| 10 x 40 x 150 x 2 |
| 10 x 45 x 150 x 2 |
| 10 x 50 x 150 x 2 |
| Code | Model |
|---|---|
| JC-33-001 | JC-33-001 |
| JC-33-016 | JC-33-016 |
| JC-33-022 | JC-33-022 |
| JC-33-037 | JC-33-037 |
| JC-33-045 | JC-33-045 |
| JC-33-050 A | JC-33-050 A |
| JC-33-050 B | JC-33-050 B |
Spec block: Material : S45C / Haroness : HRC 50°-55° / N.W. : 10.2 kg. Drawing carries a 0.005 H parallelism callout. Set contents printed in two side-by-side columns forming one continuous list of 14 sizes.
PRECISION PARALLELS
| w_x_h_x_l_x_pcs |
|---|
| 8.5 x 20 x 150 x 2 |
| 8.5 x 24 x 150 x 2 |
| 8.5 x 30 x 150 x 2 |
| 12.6 x 38 x 200 x 2 |
| 12.6 x 44 x 200 x 2 |
| w_x_h_x_l_x_pcs |
|---|
| 8.5 x 10 x 150 x 2 |
| 8.5 x 15 x 150 x 2 |
| 8.5 x 20 x 150 x 2 |
| 8.5 x 24 x 150 x 2 |
| 8.5 x 30 x 150 x 2 |
| 12.6 x 38 x 200 x 2 |
| 12.6 x 44 x 200 x 2 |
| w_x_h_x_l_x_pcs |
|---|
| 6.8 x 15 x 150 x 2 |
| 6.8 x 18 x 150 x 2 |
| 6.8 x 21 x 150 x 2 |
| 6.8 x 25 x 150 x 2 |
| 6.8 x 27 x 150 x 2 |
| 6.8 x 31 x 150 x 2 |
| 6.8 x 35 x 150 x 2 |
One heading covering three separate boxed sets — JC-33-016 (N.W. 5 kg), JC-33-022 (N.W. 6 kg) and JC-33-037 (N.W. 3 kg). Shared spec block: Material : S45C / Haroness : HRC 50°-55°. Drawing carries a 0.005 H parallelism callout. Each set's contents are printed in two side-by-side columns forming one continuous list.
PRECISION PARALLELS
| w_x_h_x_l_x_pcs |
|---|
| 8 x 24 x 200 x 2 |
| 12 x 36 x 200 x 2 |
| 22 x 40 x 200 x 2 |
| 31 x 15 x 200 x 2 x 2.5 |
N.W. : 6 kg. No material or hardness printed. Drawing carries a 0.005mm parallelism callout. Set contents printed in two side-by-side columns forming one continuous list of 4 sizes.
PRECISION PARALLELS
| w_x_h_x_l_x_pcs |
|---|
| 8 x 16 x 150 x 2 |
| 8 x 18 x 150 x 2 |
| 8 x 20 x 150 x 2 |
| 8 x 22 x 150 x 2 |
| 8 x 24 x 150 x 2 |
| 8 x 26 x 150 x 2 |
| 8 x 28 x 150 x 2 |
| 8 x 30 x 150 x 2 |
| 8 x 32 x 150 x 2 |
| 8 x 34 x 150 x 2 |
| 8 x 36 x 150 x 2 |
| 8 x 38 x 150 x 2 |
| 8 x 40 x 150 x 2 |
| 8 x 42 x 150 x 2 |
| 8 x 44 x 150 x 2 |
| 8 x 46 x 150 x 2 |
| 8 x 48 x 150 x 2 |
| 8 x 50 x 150 x 2 |
| w_x_h_x_l_x_pcs |
|---|
| 8 x 17 x 150 x 2 |
| 8 x 19 x 150 x 2 |
| 8 x 21 x 150 x 2 |
| 8 x 23 x 150 x 2 |
| 8 x 25 x 150 x 2 |
| 8 x 27 x 150 x 2 |
| 8 x 29 x 150 x 2 |
| 8 x 31 x 150 x 2 |
| 8 x 33 x 150 x 2 |
| 8 x 35 x 150 x 2 |
| 8 x 37 x 150 x 2 |
| 8 x 39 x 150 x 2 |
| 8 x 41 x 150 x 2 |
| 8 x 43 x 150 x 2 |
| 8 x 45 x 150 x 2 |
| 8 x 47 x 150 x 2 |
| 8 x 49 x 150 x 2 |
| 8 x 51 x 150 x 2 |
One heading covering two boxed sets — JC-33-050 A (even heights) and JC-33-050 B (odd heights). Shared spec block: Material : S45C / Haroness : HRC 50°-55° / N.W. : 12.5 kg. Drawing carries a 0.005mm parallelism callout. Each set's contents are printed in two side-by-side columns forming one continuous list of 18 sizes.
