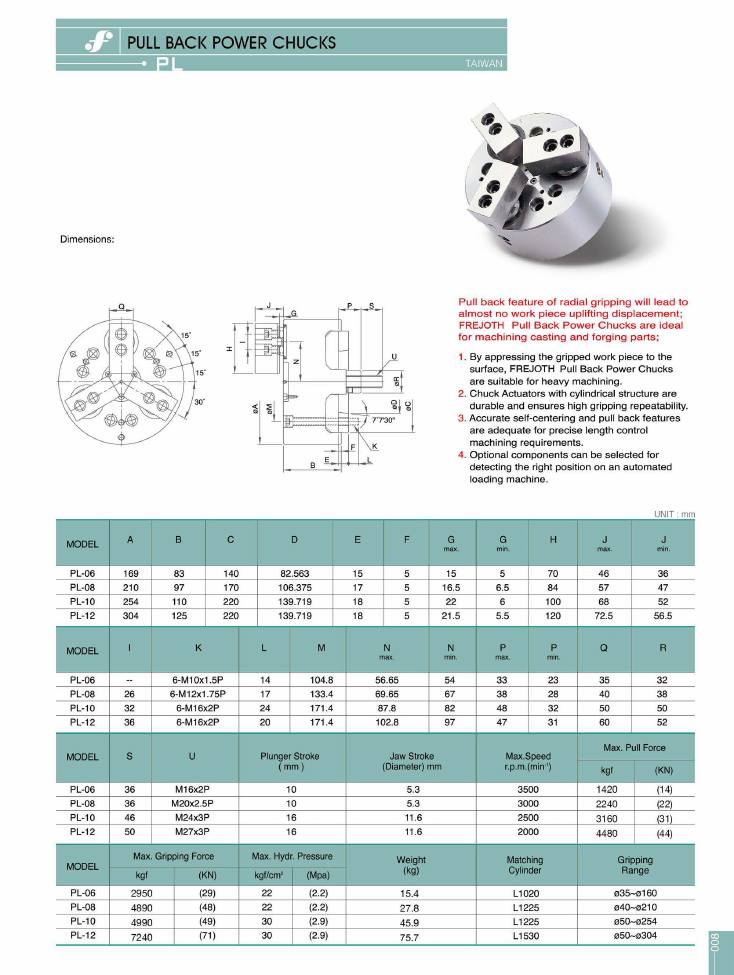

Frejoth accessory catalogue · Page 8
Pull Back Power Chucks
Models on this page
PL-06PL-08PL-10PL-12
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Pull Back Power Chucks
PL · Taiwan
- By appressing the gripped work piece to the surface, FREJOTH Pull Back Power Chucks are suitable for heavy machining.
- Chuck Actuators with cylindrical structure are durable and ensures high gripping repeatability.
- Accurate self-centering and pull back features are adequate for precise length control machining requirements.
- Optional components can be selected for detecting the right position on an automated loading machine.
| model | a | b | c | d | e | f | g_max | g_min | h | j_max | j_min |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PL-06 | 169 | 83 | 140 | 82.563 | 15 | 5 | 15 | 5 | 70 | 46 | 36 |
| PL-08 | 210 | 97 | 170 | 106.375 | 17 | 5 | 16.5 | 6.5 | 84 | 57 | 47 |
| PL-10 | 254 | 110 | 220 | 139.719 | 18 | 5 | 22 | 6 | 100 | 68 | 52 |
| PL-12 | 304 | 125 | 220 | 139.719 | 18 | 5 | 21.5 | 5.5 | 120 | 72.5 | 56.5 |
| model | i | k | l | m | n_max | n_min | p_max | p_min | q | r |
|---|---|---|---|---|---|---|---|---|---|---|
| PL-06 | — | 6-M10x1.5P | 14 | 104.8 | 56.65 | 54 | 33 | 23 | 35 | 32 |
| PL-08 | 26 | 6-M12x1.75P | 17 | 133.4 | 69.65 | 67 | 38 | 28 | 40 | 38 |
| PL-10 | 32 | 6-M16x2P | 24 | 171.4 | 87.8 | 82 | 48 | 32 | 50 | 50 |
| PL-12 | 36 | 6-M16x2P | 20 | 171.4 | 102.8 | 97 | 47 | 31 | 60 | 52 |
| model | s | u | plunger_stroke_mm | jaw_stroke_diameter_mm | max_speed_rpm | max_pull_force_kgf | max_pull_force_kn |
|---|---|---|---|---|---|---|---|
| PL-06 | 36 | M16x2P | 10 | 5.3 | 3500 | 1420 | 14 |
| PL-08 | 36 | M20x2.5P | 10 | 5.3 | 3000 | 2240 | 22 |
| PL-10 | 46 | M24x3P | 16 | 11.6 | 2500 | 3160 | 31 |
| PL-12 | 50 | M27x3P | 16 | 11.6 | 2000 | 4480 | 44 |
| model | max_gripping_force_kgf | max_gripping_force_kn | max_hydr_pressure_kgf_cm2 | max_hydr_pressure_mpa | weight_kg | matching_cylinder | gripping_range |
|---|---|---|---|---|---|---|---|
| PL-06 | 2950 | 29 | 22 | 2.2 | 15.4 | L1020 | ø35~ø160 |
| PL-08 | 4890 | 48 | 22 | 2.2 | 27.8 | L1225 | ø40~ø210 |
| PL-10 | 4990 | 49 | 30 | 2.9 | 45.9 | L1225 | ø50~ø254 |
| PL-12 | 7240 | 71 | 30 | 2.9 | 75.7 | L1530 | ø50~ø304 |
| Code | Model |
|---|---|
| on request | PL-06 |
| on request | PL-08 |
| on request | PL-10 |
| on request | PL-12 |
Pull back feature of radial gripping will lead to almost no work piece uplifting displacement; FREJOTH Pull Back Power Chucks are ideal for machining casting and forging parts.
