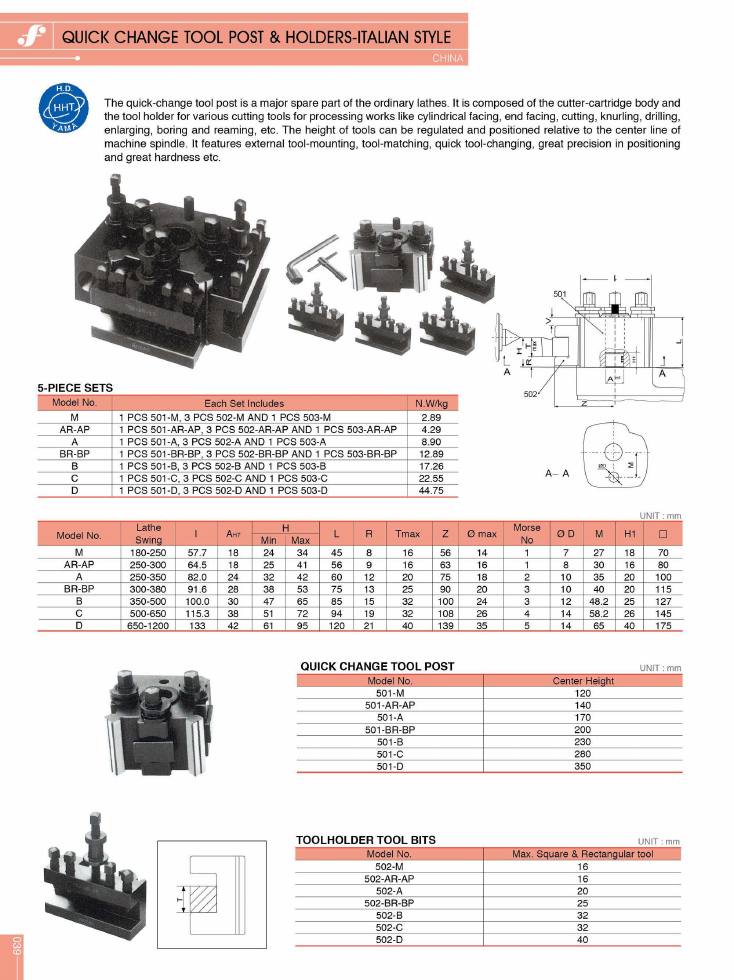

Quick Change Tool Post & Holders - Italian Style

HHT / H.D. YAMA · China

Composed of the cutter-cartridge body and the tool holder for various cutting tools.
Suits cylindrical facing, end facing, cutting, knurling, drilling, enlarging, boring and reaming.
Tool height can be regulated and positioned relative to the centre line of the machine spindle.
External tool-mounting, tool-matching, quick tool-changing, great precision in positioning and great hardness.

five_piece_sets
model_no	each_set_includes	nw_kg
M	1 PCS 501-M, 3 PCS 502-M AND 1 PCS 503-M	2.89
AR-AP	1 PCS 501-AR-AP, 3 PCS 502-AR-AP AND 1 PCS 503-AR-AP	4.29
A	1 PCS 501-A, 3 PCS 502-A AND 1 PCS 503-A	8.9
BR-BP	1 PCS 501-BR-BP, 3 PCS 502-BR-BP AND 1 PCS 503-BR-BP	12.89
B	1 PCS 501-B, 3 PCS 502-B AND 1 PCS 503-B	17.26
C	1 PCS 501-C, 3 PCS 502-C AND 1 PCS 503-C	22.55
D	1 PCS 501-D, 3 PCS 502-D AND 1 PCS 503-D	44.75

dimensions (mm)
model_no	lathe_swing	i	a_h7	h_min	h_max	l	r	tmax	z	o_max	morse_no	o_d	m	h1	square
M	180-250	57.7	18	24	34	45	8	16	56	14	1	7	27	18	70
AR-AP	250-300	64.5	18	25	41	56	9	16	63	16	1	8	30	16	80
A	250-350	82	24	32	42	60	12	20	75	18	2	10	35	20	100
BR-BP	300-380	91.6	28	38	53	75	13	25	90	20	3	10	40	20	115
B	350-500	100	30	47	65	85	15	32	100	24	3	12	48.2	25	127
C	500-650	115.3	38	51	72	94	19	32	108	26	4	14	58.2	26	145
D	650-1200	133	42	61	95	120	21	40	139	35	5	14	65	40	175

Order references
Code	Model
on request	M
on request	AR-AP
on request	A
on request	BR-BP
on request	B
on request	C
on request	D

Sold as 5-piece sets: 1 x 501 tool post + 3 x 502 tool holders + 1 x 503 per set. The dimension table is keyed on the same set model letters (M, AR-AP, A, BR-BP, B, C, D).

Quick Change Tool Post

501 · China

center_height (mm)
model_no	center_height
501-M	120
501-AR-AP	140
501-A	170
501-BR-BP	200
501-B	230
501-C	280
501-D	350

Order references
Code	Model
on request	501-M
on request	501-AR-AP
on request	501-A
on request	501-BR-BP
on request	501-B
on request	501-C
on request	501-D

Toolholder Tool Bits

502 · China

max_tool_size (mm)
model_no	max_square_and_rectangular_tool
502-M	16
502-AR-AP	16
502-A	20
502-BR-BP	25
502-B	32
502-C	32
502-D	40

Order references
Code	Model
on request	502-M
on request	502-AR-AP
on request	502-A
on request	502-BR-BP
on request	502-B
on request	502-C
on request	502-D
