Quick change tool post & holders-Italian style

Models on this page

503-A503-AR-AP503-B503-BR-BP503-C503-D503-M504-A504-AR-AP504-B504-BR-BP504-C504-D504-M505-A505-AR-AP505-B505-BR-BP505-C505-D505-M506-A506-AR-AP506-B506-BR-BP506-C506-D506-M508-A508-AR-AP508-B508-BR-BP508-C508-D508-M515-A515-AR-AP515-B515-BR-BP515-C515-D515-M540-A540-AR-AP540-B540-BR-BP540-C540-D540-M550-A550-AR-AP550-B550-BR-BP550-C550-D550-M

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Toolholder for Round Shanks

503 · China

toolholder_for_round_shanks (mm)
model_no	max_holding_dia
503-M	14
503-AR-AP	16
503-A	18
503-BR-BP	20
503-B	24
503-C	26
503-D	35

Order references
Code	Model
on request	503-M
on request	503-AR-AP
on request	503-A
on request	503-BR-BP
on request	503-B
on request	503-C
on request	503-D

Toolholder Morse Taper Shank

504 · China

toolholder_morse_taper_shank (mm)
model_no	taper_hole
504-M	1 MT
504-AR-AP	1 MT
504-A	2 MT
504-BR-BP	3 MT
504-B	3 MT
504-C	4 MT
504-D	5 MT

Order references
Code	Model
on request	504-M
on request	504-AR-AP
on request	504-A
on request	504-BR-BP
on request	504-B
on request	504-C
on request	504-D

Toolholder for Boring Bar

540 · China

toolholder_for_boring_bar (mm)
model_no	max_holding_dia
540-M	18
540-AR-AP	20
540-A	25
540-BR-BP	32
540-B	40
540-C	50
540-D	60

Order references
Code	Model
on request	540-M
on request	540-AR-AP
on request	540-A
on request	540-BR-BP
on request	540-B
on request	540-C
on request	540-D

Toolholder for Parting Blades

550 · China

toolholder_for_parting_blades (mm)
model_no	parting_blade
550-M	15 x 4 x 3
550-AR-AP	18 x 4 x 3
550-A	20 x 6 x 5
550-BR-BP	20 x 6 x 5
550-B	25 x 6 x 5
550-C	30 x 6 x 5
550-D	35 x 8 x 7

Order references
Code	Model
on request	550-M
on request	550-AR-AP
on request	550-A
on request	550-BR-BP
on request	550-B
on request	550-C
on request	550-D

Toolholder Accessories

China

toolholder_accessories (mm)
model_no_515	ch	model_no_505	l_505	model_no_506	l_506	model_no_508	diameter
515-M	7	505-M	66	506-M	20	508-M	7
515-AR-AP	8	505-AR-AP	81	506-AR-AP	26	508-AR-AP	8
515-A	8	505-A	90	506-A	30	508-A	10
515-BR-BP	10	505-BR-BP	108	506-BR-BP	37	508-BR-BP	10
515-B	10	505-B	125	506-B	42	508-B	12
515-C	12	505-C	140.5	506-C	48	508-C	14
515-D	14	505-D	156	506-D	50	508-D	14

Order references
Code	Model
on request	515-M
on request	515-AR-AP
on request	515-A
on request	515-BR-BP
on request	515-B
on request	515-C
on request	515-D
on request	505-M
on request	505-AR-AP
on request	505-A
on request	505-BR-BP
on request	505-B
on request	505-C
on request	505-D
on request	506-M
on request	506-AR-AP
on request	506-A
on request	506-BR-BP
on request	506-B
on request	506-C
on request	506-D
on request	508-M
on request	508-AR-AP
on request	508-A
on request	508-BR-BP
on request	508-B
on request	508-C
on request	508-D

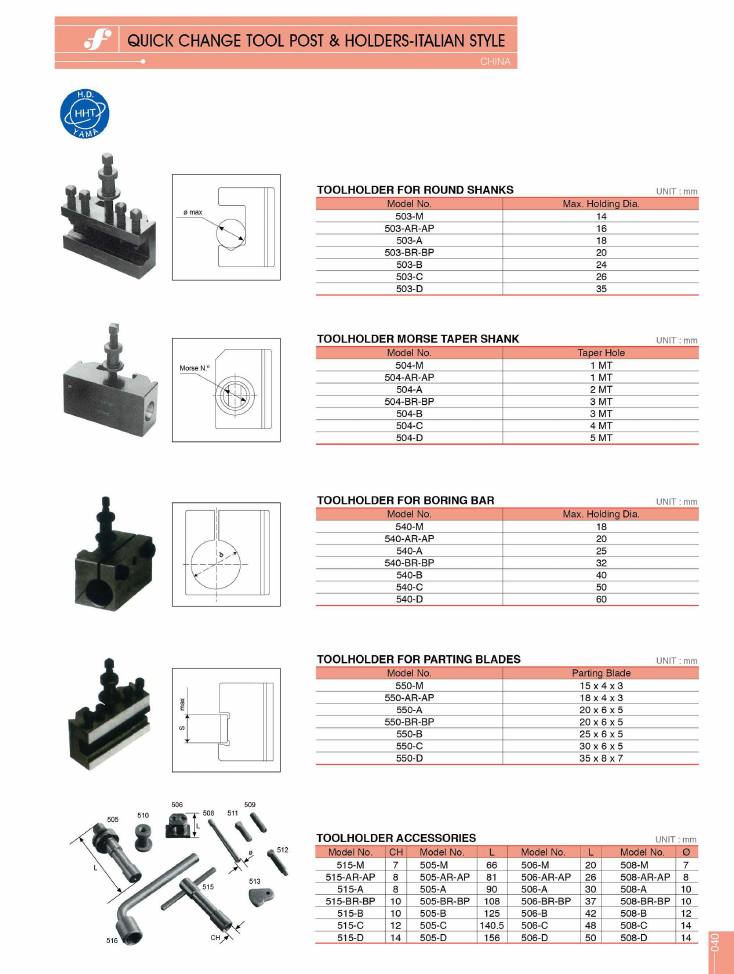

Four accessory series shown side by side: 515 (wrench, CH size), 505 (bar, L), 506 (L), 508 (ø).
