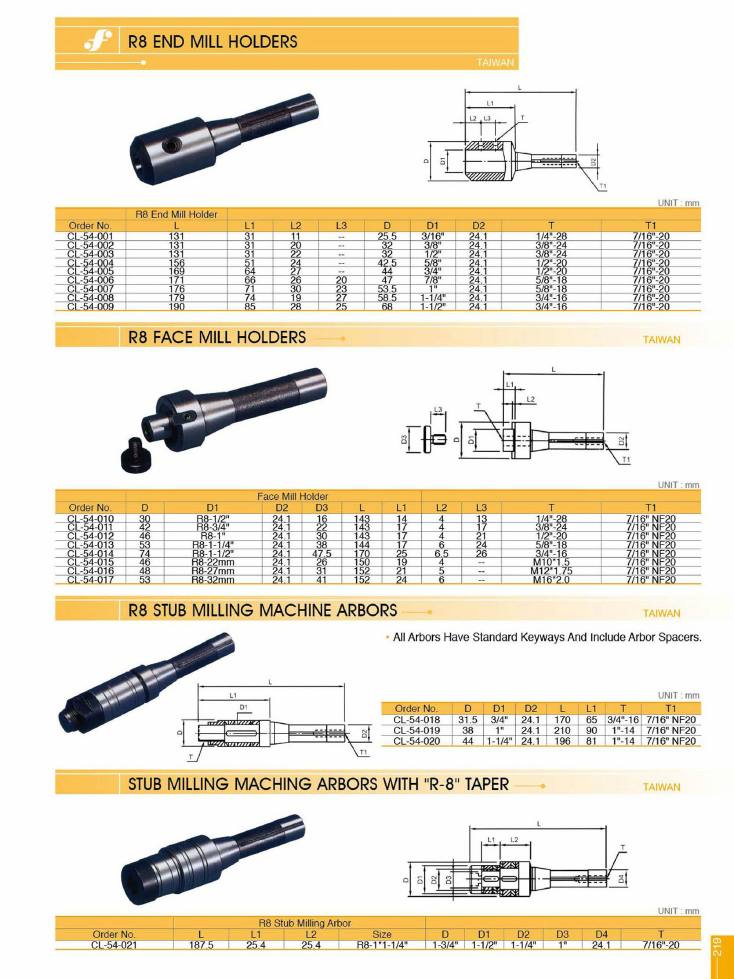

Frejoth accessory catalogue · Page 222
R8 END MILL HOLDERS
Models on this page
CL-54-001CL-54-002CL-54-003CL-54-004CL-54-005CL-54-006CL-54-007CL-54-008CL-54-009CL-54-010CL-54-011CL-54-012CL-54-013CL-54-014CL-54-015CL-54-016CL-54-017CL-54-018CL-54-019CL-54-020R8-1*1-1/4"
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
R8 END MILL HOLDERS
TAIWAN
| order_no | l | l1 | l2 | l3 | d | d1 | d2 | t | t1 |
|---|---|---|---|---|---|---|---|---|---|
| CL-54-001 | 131 | 31 | 11 | — | 25.5 | 3/16" | 24.1 | 1/4"-28 | 7/16"-20 |
| CL-54-002 | 131 | 31 | 20 | — | 32 | 3/8" | 24.1 | 3/8"-24 | 7/16"-20 |
| CL-54-003 | 131 | 31 | 22 | — | 32 | 1/2" | 24.1 | 3/8"-24 | 7/16"-20 |
| CL-54-004 | 156 | 51 | 24 | — | 42.5 | 5/8" | 24.1 | 1/2"-20 | 7/16"-20 |
| CL-54-005 | 169 | 64 | 27 | — | 44 | 3/4" | 24.1 | 1/2"-20 | 7/16"-20 |
| CL-54-006 | 171 | 66 | 26 | 20 | 47 | 7/8" | 24.1 | 5/8"-18 | 7/16"-20 |
| CL-54-007 | 176 | 71 | 30 | 23 | 53.5 | 1" | 24.1 | 5/8"-18 | 7/16"-20 |
| CL-54-008 | 179 | 74 | 19 | 27 | 58.5 | 1-1/4" | 24.1 | 3/4"-16 | 7/16"-20 |
| CL-54-009 | 190 | 85 | 28 | 25 | 68 | 1-1/2" | 24.1 | 3/4"-16 | 7/16"-20 |
| Code | Model |
|---|---|
| CL-54-001 | CL-54-001 |
| CL-54-002 | CL-54-002 |
| CL-54-003 | CL-54-003 |
| CL-54-004 | CL-54-004 |
| CL-54-005 | CL-54-005 |
| CL-54-006 | CL-54-006 |
| CL-54-007 | CL-54-007 |
| CL-54-008 | CL-54-008 |
| CL-54-009 | CL-54-009 |
Table sub-headed 'R8 End Mill Holder'. Dimension drawing labels D, D1, D2, L, L1, L2, L3, T, T1.
R8 FACE MILL HOLDERS
TAIWAN
| order_no | d | d1 | d2 | d3 | l | l1 | l2 | l3 | t | t1 |
|---|---|---|---|---|---|---|---|---|---|---|
| CL-54-010 | 30 | R8-1/2" | 24.1 | 16 | 143 | 14 | 4 | 13 | 1/4"-28 | 7/16" NF20 |
| CL-54-011 | 42 | R8-3/4" | 24.1 | 22 | 143 | 17 | 4 | 17 | 3/8"-24 | 7/16" NF20 |
| CL-54-012 | 46 | R8-1" | 24.1 | 30 | 143 | 17 | 4 | 21 | 1/2"-20 | 7/16" NF20 |
| CL-54-013 | 53 | R8-1-1/4" | 24.1 | 38 | 144 | 17 | 6 | 24 | 5/8"-18 | 7/16" NF20 |
| CL-54-014 | 74 | R8-1-1/2" | 24.1 | 47.5 | 170 | 25 | 6.5 | 26 | 3/4"-16 | 7/16" NF20 |
| CL-54-015 | 46 | R8-22mm | 24.1 | 26 | 150 | 19 | 4 | — | M10*1.5 | 7/16" NF20 |
| CL-54-016 | 48 | R8-27mm | 24.1 | 31 | 152 | 21 | 5 | — | M12*1.75 | 7/16" NF20 |
| CL-54-017 | 53 | R8-32mm | 24.1 | 41 | 152 | 24 | 6 | — | M16*2.0 | 7/16" NF20 |
| Code | Model |
|---|---|
| CL-54-010 | CL-54-010 |
| CL-54-011 | CL-54-011 |
| CL-54-012 | CL-54-012 |
| CL-54-013 | CL-54-013 |
| CL-54-014 | CL-54-014 |
| CL-54-015 | CL-54-015 |
| CL-54-016 | CL-54-016 |
| CL-54-017 | CL-54-017 |
Table sub-headed 'Face Mill Holder'. Dimension drawing labels D, D1, D2, D3, L, L1, L2, L3, T, T1.
R8 STUB MILLING MACHINE ARBORS
TAIWAN
- All Arbors Have Standard Keyways And Include Arbor Spacers.
| order_no | d | d1 | d2 | l | l1 | t | t1 |
|---|---|---|---|---|---|---|---|
| CL-54-018 | 31.5 | 3/4" | 24.1 | 170 | 65 | 3/4"-16 | 7/16" NF20 |
| CL-54-019 | 38 | 1" | 24.1 | 210 | 90 | 1"-14 | 7/16" NF20 |
| CL-54-020 | 44 | 1-1/4" | 24.1 | 196 | 81 | 1"-14 | 7/16" NF20 |
| Code | Model |
|---|---|
| CL-54-018 | CL-54-018 |
| CL-54-019 | CL-54-019 |
| CL-54-020 | CL-54-020 |
Dimension drawing labels D, D1, D2, L, L1, T, T1.
STUB MILLING MACHING ARBORS WITH "R-8" TAPER
TAIWAN
| order_no | l | l1 | l2 | size | d | d1 | d2 | d3 | d4 | t |
|---|---|---|---|---|---|---|---|---|---|---|
| CL-54-021 | 187.5 | 25.4 | 25.4 | R8-1*1-1/4" | 1-3/4" | 1-1/2" | 1-1/4" | 1" | 24.1 | 7/16"-20 |
| Code | Model |
|---|---|
| CL-54-021 | R8-1*1-1/4" |
Table sub-headed 'R8 Stub Milling Arbor'. Dimension drawing labels D, D1, D2, D3, D4, L, L1, L2, T. Single row.
