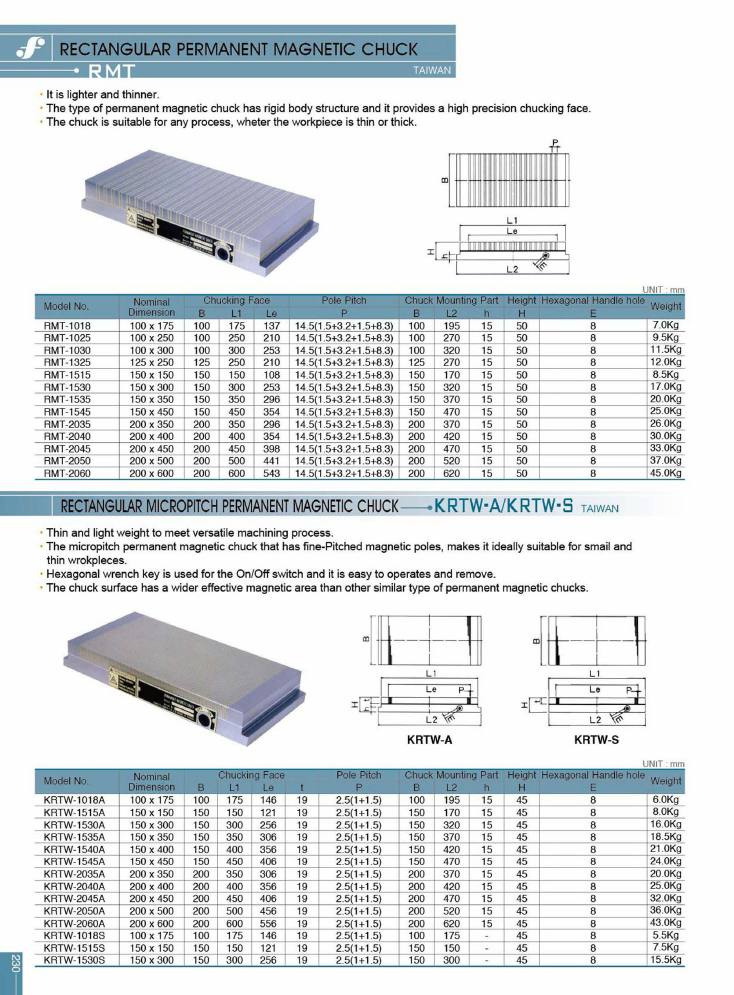

RECTANGULAR PERMANENT MAGNETIC CHUCK
Models on this page
KRTW-1018AKRTW-1018SKRTW-1515AKRTW-1515SKRTW-1530AKRTW-1530SKRTW-1535AKRTW-1540AKRTW-1545AKRTW-2035AKRTW-2040AKRTW-2045AKRTW-2050AKRTW-2060ARMT-1018RMT-1025RMT-1030RMT-1325RMT-1515RMT-1530RMT-1535RMT-1545RMT-2035RMT-2040RMT-2045RMT-2050RMT-2060
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
RECTANGULAR PERMANENT MAGNETIC CHUCK
RMT · TAIWAN
- It is lighter and thinner.
- The type of permanent magnetic chuck has rigid body structure and it provides a high precision chucking face.
- The chuck is suitable for any process, wheter the workpiece is thin or thick.
| model_no | nominal_dimension | b | l1 | le | p | b_mounting | l2 | h | height_h | e | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RMT-1018 | 100 x 175 | 100 | 175 | 137 | 14.5(1.5+3.2+1.5+8.3) | 100 | 195 | 15 | 50 | 8 | 7.0Kg |
| RMT-1025 | 100 x 250 | 100 | 250 | 210 | 14.5(1.5+3.2+1.5+8.3) | 100 | 270 | 15 | 50 | 8 | 9.5Kg |
| RMT-1030 | 100 x 300 | 100 | 300 | 253 | 14.5(1.5+3.2+1.5+8.3) | 100 | 320 | 15 | 50 | 8 | 11.5Kg |
| RMT-1325 | 125 x 250 | 125 | 250 | 210 | 14.5(1.5+3.2+1.5+8.3) | 125 | 270 | 15 | 50 | 8 | 12.0Kg |
| RMT-1515 | 150 x 150 | 150 | 150 | 108 | 14.5(1.5+3.2+1.5+8.3) | 150 | 170 | 15 | 50 | 8 | 8.5Kg |
| RMT-1530 | 150 x 300 | 150 | 300 | 253 | 14.5(1.5+3.2+1.5+8.3) | 150 | 320 | 15 | 50 | 8 | 17.0Kg |
| RMT-1535 | 150 x 350 | 150 | 350 | 296 | 14.5(1.5+3.2+1.5+8.3) | 150 | 370 | 15 | 50 | 8 | 20.0Kg |
| RMT-1545 | 150 x 450 | 150 | 450 | 354 | 14.5(1.5+3.2+1.5+8.3) | 150 | 470 | 15 | 50 | 8 | 25.0Kg |
| RMT-2035 | 200 x 350 | 200 | 350 | 296 | 14.5(1.5+3.2+1.5+8.3) | 200 | 370 | 15 | 50 | 8 | 26.0Kg |
| RMT-2040 | 200 x 400 | 200 | 400 | 354 | 14.5(1.5+3.2+1.5+8.3) | 200 | 420 | 15 | 50 | 8 | 30.0Kg |
| RMT-2045 | 200 x 450 | 200 | 450 | 398 | 14.5(1.5+3.2+1.5+8.3) | 200 | 470 | 15 | 50 | 8 | 33.0Kg |
| RMT-2050 | 200 x 500 | 200 | 500 | 441 | 14.5(1.5+3.2+1.5+8.3) | 200 | 520 | 15 | 50 | 8 | 37.0Kg |
| RMT-2060 | 200 x 600 | 200 | 600 | 543 | 14.5(1.5+3.2+1.5+8.3) | 200 | 620 | 15 | 50 | 8 | 45.0Kg |
| Code | Model |
|---|---|
| on request | RMT-1018 |
| on request | RMT-1025 |
| on request | RMT-1030 |
| on request | RMT-1325 |
| on request | RMT-1515 |
| on request | RMT-1530 |
| on request | RMT-1535 |
| on request | RMT-1545 |
| on request | RMT-2035 |
| on request | RMT-2040 |
| on request | RMT-2045 |
| on request | RMT-2050 |
| on request | RMT-2060 |
RECTANGULAR MICROPITCH PERMANENT MAGNETIC CHUCK
KRTW-A/KRTW-S · TAIWAN
- Thin and light weight to meet versatile machining process.
- The micropitch permanent magnetic chuck that has fine-Pitched magnetic poles, makes it ideally suitable for smail and thin wrokpleces.
- Hexagonal wrench key is used for the On/Off switch and it is easy to operates and remove.
- The chuck surface has a wider effective magnetic area than other similar type of permanent magnetic chucks.
| model_no | nominal_dimension | b | l1 | le | t | p | b_mounting | l2 | h | height_h | e | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KRTW-1018A | 100 x 175 | 100 | 175 | 146 | 19 | 2.5(1+1.5) | 100 | 195 | 15 | 45 | 8 | 6.0Kg |
| KRTW-1515A | 150 x 150 | 150 | 150 | 121 | 19 | 2.5(1+1.5) | 150 | 170 | 15 | 45 | 8 | 8.0Kg |
| KRTW-1530A | 150 x 300 | 150 | 300 | 256 | 19 | 2.5(1+1.5) | 150 | 320 | 15 | 45 | 8 | 16.0Kg |
| KRTW-1535A | 150 x 350 | 150 | 350 | 306 | 19 | 2.5(1+1.5) | 150 | 370 | 15 | 45 | 8 | 18.5Kg |
| KRTW-1540A | 150 x 400 | 150 | 400 | 356 | 19 | 2.5(1+1.5) | 150 | 420 | 15 | 45 | 8 | 21.0Kg |
| KRTW-1545A | 150 x 450 | 150 | 450 | 406 | 19 | 2.5(1+1.5) | 150 | 470 | 15 | 45 | 8 | 24.0Kg |
| KRTW-2035A | 200 x 350 | 200 | 350 | 306 | 19 | 2.5(1+1.5) | 200 | 370 | 15 | 45 | 8 | 20.0Kg |
| KRTW-2040A | 200 x 400 | 200 | 400 | 356 | 19 | 2.5(1+1.5) | 200 | 420 | 15 | 45 | 8 | 25.0Kg |
| KRTW-2045A | 200 x 450 | 200 | 450 | 406 | 19 | 2.5(1+1.5) | 200 | 470 | 15 | 45 | 8 | 32.0Kg |
| KRTW-2050A | 200 x 500 | 200 | 500 | 456 | 19 | 2.5(1+1.5) | 200 | 520 | 15 | 45 | 8 | 36.0Kg |
| KRTW-2060A | 200 x 600 | 200 | 600 | 556 | 19 | 2.5(1+1.5) | 200 | 620 | 15 | 45 | 8 | 43.0Kg |
| KRTW-1018S | 100 x 175 | 100 | 175 | 146 | 19 | 2.5(1+1.5) | 100 | 175 | - | 45 | 8 | 5.5Kg |
| KRTW-1515S | 150 x 150 | 150 | 150 | 121 | 19 | 2.5(1+1.5) | 150 | 150 | - | 45 | 8 | 7.5Kg |
| KRTW-1530S | 150 x 300 | 150 | 300 | 256 | 19 | 2.5(1+1.5) | 150 | 300 | - | 45 | 8 | 15.5Kg |
| Code | Model |
|---|---|
| on request | KRTW-1018A |
| on request | KRTW-1515A |
| on request | KRTW-1530A |
| on request | KRTW-1535A |
| on request | KRTW-1540A |
| on request | KRTW-1545A |
| on request | KRTW-2035A |
| on request | KRTW-2040A |
| on request | KRTW-2045A |
| on request | KRTW-2050A |
| on request | KRTW-2060A |
| on request | KRTW-1018S |
| on request | KRTW-1515S |
| on request | KRTW-1530S |
Two body styles are drawn, KRTW-A and KRTW-S; the -A models carry an h dimension and the -S models print a dash.
