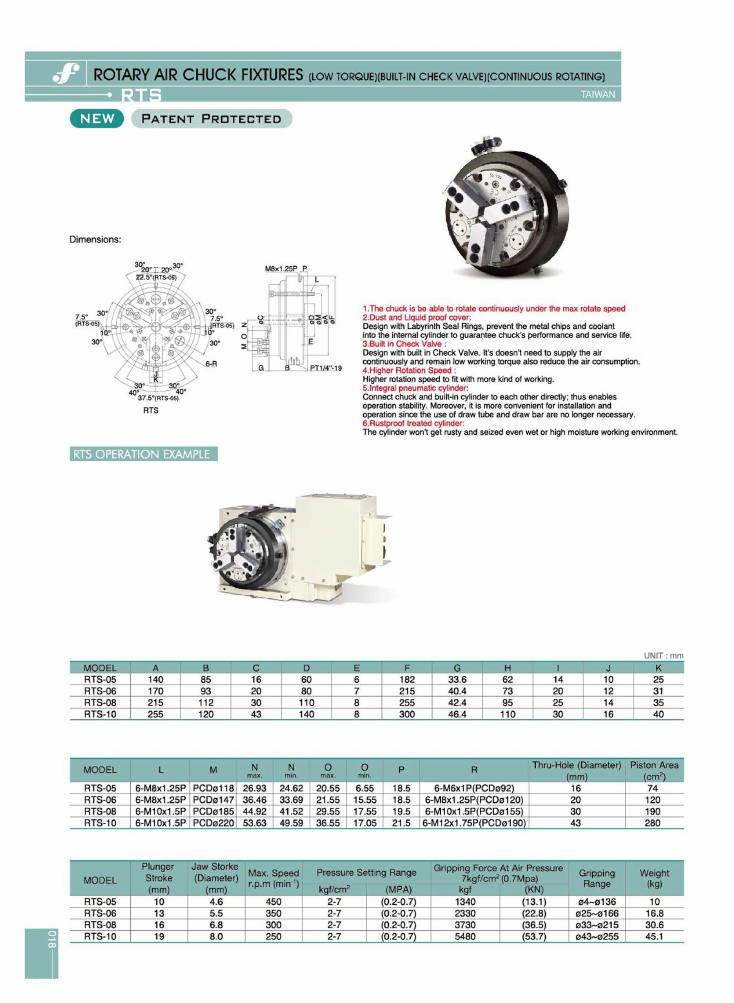

Frejoth accessory catalogue · Page 18
Rotary Air Chuck Fixtures (Low Torque)(Built-in Check Valve)(Continuous Rotating)
Models on this page
RTS-05RTS-06RTS-08RTS-10
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Rotary Air Chuck Fixtures (Low Torque)(Built-in Check Valve)(Continuous Rotating)
RTS · Taiwan
- Marked NEW. Patent protected.
- 1. The chuck is be able to rotate continuously under the max rotate speed.
- 2. Dust and Liquid proof cover: Design with Labyrinth Seal Rings, prevent the metal chips and coolant into the internal cylinder to guarantee chuck's performance and service life.
- 3. Built in Check Valve: Design with built in Check Valve. It's doesn't need to supply the air continuously and remain low working torque also reduce the air consumption.
- 4. Higher Rotation Speed: Higher rotation speed to fit with more kind of working.
- 5. Integral pneumatic cylinder: Connect chuck and built-in cylinder to each other directly; thus enables operation stability. Moreover, it is more convenient for installation and operation since the use of draw tube and draw bar are no longer necessary.
- 6. Rustproof treated cylinder: The cylinder won't get rusty and seized even wet or high moisture working environment.
| model | a | b | c | d | e | f | g | h | i | j | k |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RTS-05 | 140 | 85 | 16 | 60 | 6 | 182 | 33.6 | 62 | 14 | 10 | 25 |
| RTS-06 | 170 | 93 | 20 | 80 | 7 | 215 | 40.4 | 73 | 20 | 12 | 31 |
| RTS-08 | 215 | 112 | 30 | 110 | 8 | 255 | 42.4 | 95 | 25 | 14 | 35 |
| RTS-10 | 255 | 120 | 43 | 140 | 8 | 300 | 46.4 | 110 | 30 | 16 | 40 |
| model | l | m | n_max | n_min | o_max | o_min | p | r | thru_hole_diameter_mm | piston_area_cm2 |
|---|---|---|---|---|---|---|---|---|---|---|
| RTS-05 | 6-M8x1.25P | PCDø118 | 26.93 | 24.62 | 20.55 | 6.55 | 18.5 | 6-M6x1P(PCDø92) | 16 | 74 |
| RTS-06 | 6-M8x1.25P | PCDø147 | 36.46 | 33.69 | 21.55 | 15.55 | 18.5 | 6-M8x1.25P(PCDø120) | 20 | 120 |
| RTS-08 | 6-M10x1.5P | PCDø185 | 44.92 | 41.52 | 29.55 | 17.55 | 19.5 | 6-M10x1.5P(PCDø155) | 30 | 190 |
| RTS-10 | 6-M10x1.5P | PCDø220 | 53.63 | 49.59 | 36.55 | 17.05 | 21.5 | 6-M12x1.75P(PCDø190) | 43 | 280 |
| model | plunger_stroke_mm | jaw_stroke_diameter_mm | max_speed_rpm | pressure_setting_range_kgf_cm2 | pressure_setting_range_mpa | gripping_force_at_7kgf_cm2_kgf | gripping_force_at_7kgf_cm2_kn | gripping_range | weight_kg |
|---|---|---|---|---|---|---|---|---|---|
| RTS-05 | 10 | 4.6 | 450 | 2-7 | (0.2-0.7) | 1340 | 13.1 | ø4~ø136 | 10 |
| RTS-06 | 13 | 5.5 | 350 | 2-7 | (0.2-0.7) | 2330 | 22.8 | ø25~ø166 | 16.8 |
| RTS-08 | 16 | 6.8 | 300 | 2-7 | (0.2-0.7) | 3730 | 36.5 | ø33~ø215 | 30.6 |
| RTS-10 | 19 | 8 | 250 | 2-7 | (0.2-0.7) | 5480 | 53.7 | ø43~ø255 | 45.1 |
| Code | Model |
|---|---|
| on request | RTS-05 |
| on request | RTS-06 |
| on request | RTS-08 |
| on request | RTS-10 |
RTS Operation Example panel shows the chuck mounted on a horizontal rotary table unit. Dimension drawing annotations: 30°, 20°, 22.5°(RTS-05), 7.5°(RTS-05), 10°, 40°, 37.5°(RTS-05), 6-R, M8x1.25P, PT1/4"-19.
