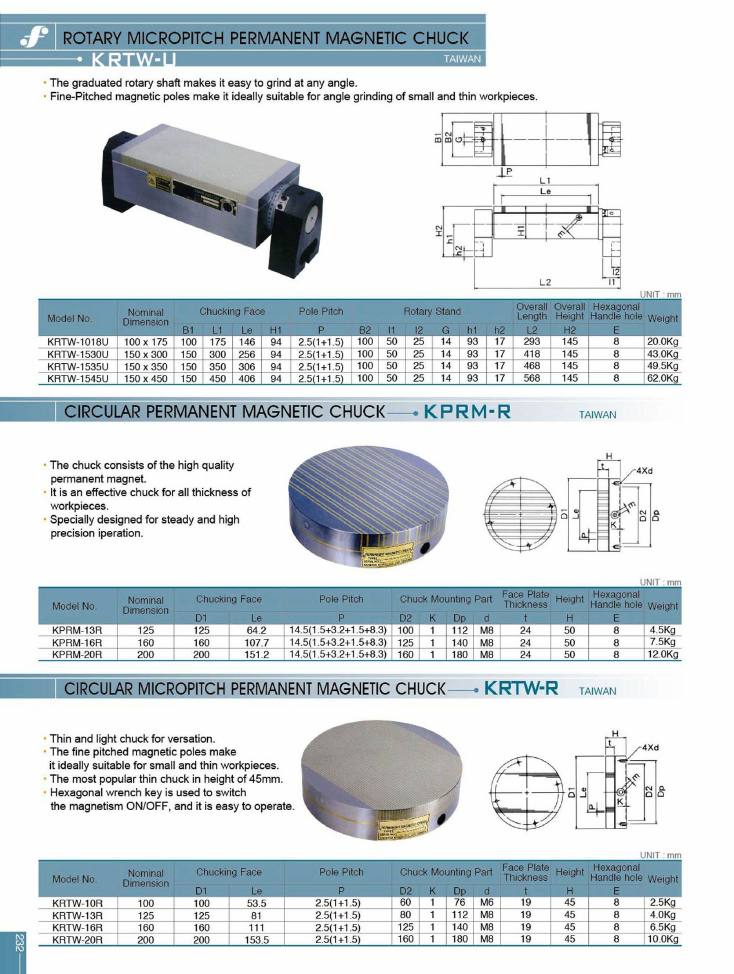

Rotary Micropitch Permanent Magnetic Chuck - KRTW-U
Models on this page
KPRM-13RKPRM-16RKPRM-20RKRTW-1018UKRTW-10RKRTW-13RKRTW-1530UKRTW-1535UKRTW-1545UKRTW-16RKRTW-20R
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Rotary Micropitch Permanent Magnetic Chuck - KRTW-U
KRTW-U · Taiwan
- The graduated rotary shaft makes it easy to grind at any angle.
- Fine-Pitched magnetic poles make it ideally suitable for angle grinding of small and thin workpieces.
| model_no | nominal_dimension | b1 | l1 | le | h1 | pole_pitch_p | b2 | i1 | i2 | G | h1_stand | h2 | overall_length_l2 | overall_height_h2 | hexagonal_handle_hole_e | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KRTW-1018U | 100 x 175 | 100 | 175 | 146 | 94 | 2.5(1+1.5) | 100 | 50 | 25 | 14 | 93 | 17 | 293 | 145 | 8 | 20.0Kg |
| KRTW-1530U | 150 x 300 | 150 | 300 | 256 | 94 | 2.5(1+1.5) | 100 | 50 | 25 | 14 | 93 | 17 | 418 | 145 | 8 | 43.0Kg |
| KRTW-1535U | 150 x 350 | 150 | 350 | 306 | 94 | 2.5(1+1.5) | 100 | 50 | 25 | 14 | 93 | 17 | 468 | 145 | 8 | 49.5Kg |
| KRTW-1545U | 150 x 450 | 150 | 450 | 406 | 94 | 2.5(1+1.5) | 100 | 50 | 25 | 14 | 93 | 17 | 568 | 145 | 8 | 62.0Kg |
| Code | Model |
|---|---|
| on request | KRTW-1018U |
| on request | KRTW-1530U |
| on request | KRTW-1535U |
| on request | KRTW-1545U |
Circular Permanent Magnetic Chuck - KPRM-R
KPRM-R · Taiwan
- The chuck consists of the high quality permanent magnet.
- It is an effective chuck for all thickness of workpieces.
- Specially designed for steady and high precision iperation.
| model_no | nominal_dimension | d1 | le | pole_pitch_p | d2 | K | Dp | d | face_plate_thickness_t | height_h | hexagonal_handle_hole_e | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KPRM-13R | 125 | 125 | 64.2 | 14.5(1.5+3.2+1.5+8.3) | 100 | 1 | 112 | M8 | 24 | 50 | 8 | 4.5Kg |
| KPRM-16R | 160 | 160 | 107.7 | 14.5(1.5+3.2+1.5+8.3) | 125 | 1 | 140 | M8 | 24 | 50 | 8 | 7.5Kg |
| KPRM-20R | 200 | 200 | 151.2 | 14.5(1.5+3.2+1.5+8.3) | 160 | 1 | 180 | M8 | 24 | 50 | 8 | 12.0Kg |
| Code | Model |
|---|---|
| on request | KPRM-13R |
| on request | KPRM-16R |
| on request | KPRM-20R |
Circular Micropitch Permanent Magnetic Chuck - KRTW-R
KRTW-R · Taiwan
- Thin and light chuck for versation.
- The fine pitched magnetic poles make it ideally suitable for small and thin workpieces.
- The most popular thin chuck in height of 45mm.
- Hexagonal wrench key is used to switch the magnetism ON/OFF, and it is easy to operate.
| model_no | nominal_dimension | d1 | le | pole_pitch_p | d2 | K | Dp | d | face_plate_thickness_t | height_h | hexagonal_handle_hole_e | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KRTW-10R | 100 | 100 | 53.5 | 2.5(1+1.5) | 60 | 1 | 76 | M6 | 19 | 45 | 8 | 2.5Kg |
| KRTW-13R | 125 | 125 | 81 | 2.5(1+1.5) | 80 | 1 | 112 | M8 | 19 | 45 | 8 | 4.0Kg |
| KRTW-16R | 160 | 160 | 111 | 2.5(1+1.5) | 125 | 1 | 140 | M8 | 19 | 45 | 8 | 6.5Kg |
| KRTW-20R | 200 | 200 | 153.5 | 2.5(1+1.5) | 160 | 1 | 180 | M8 | 19 | 45 | 8 | 10.0Kg |
| Code | Model |
|---|---|
| on request | KRTW-10R |
| on request | KRTW-13R |
| on request | KRTW-16R |
| on request | KRTW-20R |
