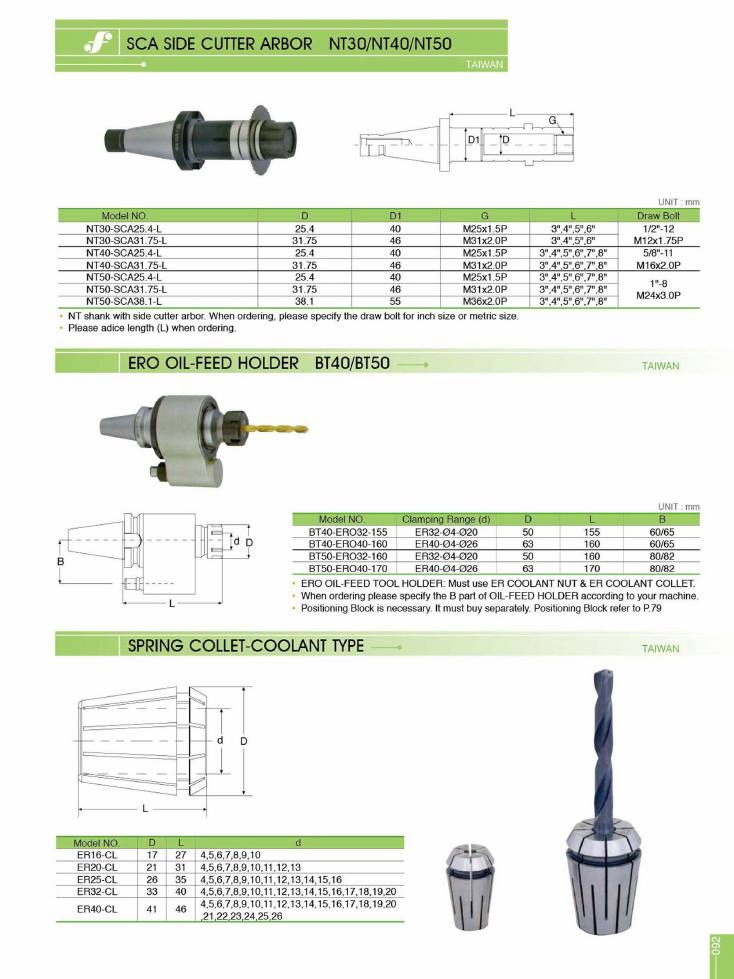

Frejoth accessory catalogue · Page 92
SCA side cutter arbor / ERO oil-feed holder / Spring collet-coolant type
Models on this page
BT40-ERO32-155BT40-ERO40-160BT50-ERO32-160BT50-ERO40-170ER16-CLER20-CLER25-CLER32-CLER40-CLNT30-SCA25.4-LNT30-SCA31.75-LNT40-SCA25.4-LNT40-SCA31.75-LNT50-SCA25.4-LNT50-SCA31.75-LNT50-SCA38.1-L
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
SCA Side Cutter Arbor NT30/NT40/NT50
SCA · Taiwan
| model_no | d | d1 | g | l | draw_bolt |
|---|---|---|---|---|---|
| NT30-SCA25.4-L | 25.4 | 40 | M25x1.5P | 3",4",5",6" | 1/2"-12 / M12x1.75P |
| NT30-SCA31.75-L | 31.75 | 46 | M31x2.0P | 3",4",5",6" | 1/2"-12 / M12x1.75P |
| NT40-SCA25.4-L | 25.4 | 40 | M25x1.5P | 3",4",5",6",7",8" | 5/8"-11 / M16x2.0P |
| NT40-SCA31.75-L | 31.75 | 46 | M31x2.0P | 3",4",5",6",7",8" | 5/8"-11 / M16x2.0P |
| NT50-SCA25.4-L | 25.4 | 40 | M25x1.5P | 3",4",5",6",7",8" | 1"-8 / M24x3.0P |
| NT50-SCA31.75-L | 31.75 | 46 | M31x2.0P | 3",4",5",6",7",8" | 1"-8 / M24x3.0P |
| NT50-SCA38.1-L | 38.1 | 55 | M36x2.0P | 3",4",5",6",7",8" | 1"-8 / M24x3.0P |
| Code | Model |
|---|---|
| on request | NT30-SCA25.4-L |
| on request | NT30-SCA31.75-L |
| on request | NT40-SCA25.4-L |
| on request | NT40-SCA31.75-L |
| on request | NT50-SCA25.4-L |
| on request | NT50-SCA31.75-L |
| on request | NT50-SCA38.1-L |
NT shank with side cutter arbor. When ordering, please specify the draw bolt for inch size or metric size. Please advise length (L) when ordering.
ERO Oil-Feed Holder BT40/BT50
ERO · Taiwan
| model_no | clamping_range_d | d | l | b |
|---|---|---|---|---|
| BT40-ERO32-155 | ER32-ø4-ø20 | 50 | 155 | 60/65 |
| BT40-ERO40-160 | ER40-ø4-ø26 | 63 | 160 | 60/65 |
| BT50-ERO32-160 | ER32-ø4-ø20 | 50 | 160 | 80/82 |
| BT50-ERO40-170 | ER40-ø4-ø26 | 63 | 170 | 80/82 |
| Code | Model |
|---|---|
| on request | BT40-ERO32-155 |
| on request | BT40-ERO40-160 |
| on request | BT50-ERO32-160 |
| on request | BT50-ERO40-170 |
ERO OIL-FEED TOOL HOLDER: Must use ER COOLANT NUT & ER COOLANT COLLET. When ordering please specify the B part of OIL-FEED HOLDER according to your machine. Positioning Block is necessary. It must be bought separately. Positioning Block refer to P.79
Spring Collet-Coolant Type
ER-CL · Taiwan
| model_no | d | l | clamping_sizes_d |
|---|---|---|---|
| ER16-CL | 17 | 27 | 4,5,6,7,8,9,10 |
| ER20-CL | 21 | 31 | 4,5,6,7,8,9,10,11,12,13 |
| ER25-CL | 26 | 35 | 4,5,6,7,8,9,10,11,12,13,14,15,16 |
| ER32-CL | 33 | 40 | 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20 |
| ER40-CL | 41 | 46 | 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26 |
| Code | Model |
|---|---|
| on request | ER16-CL |
| on request | ER20-CL |
| on request | ER25-CL |
| on request | ER32-CL |
| on request | ER40-CL |
