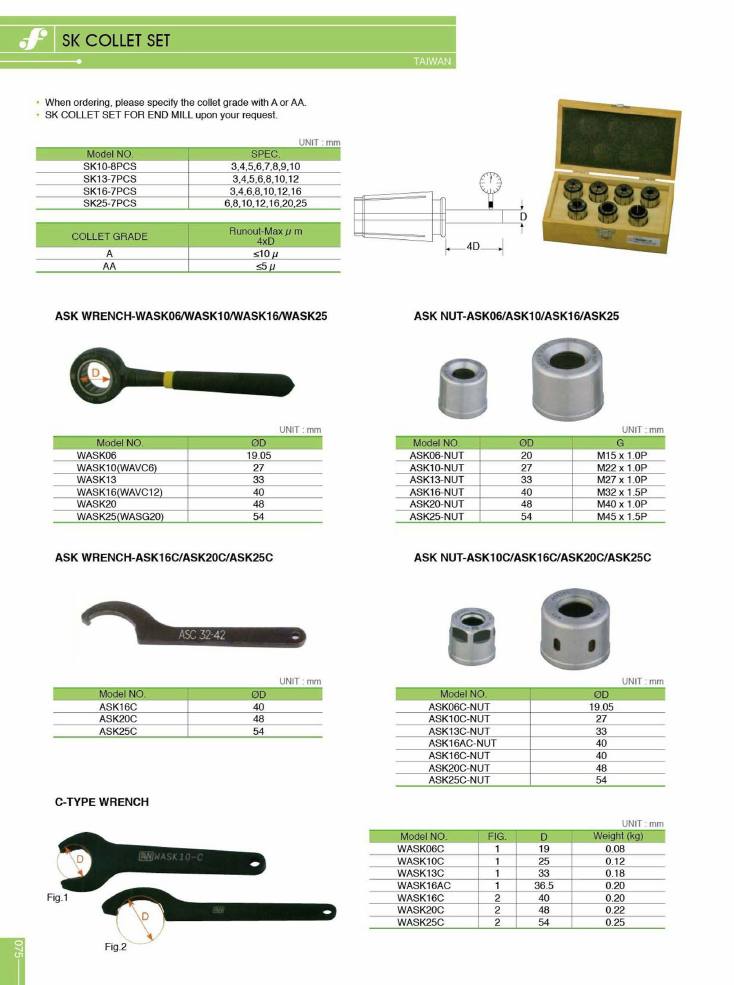

Frejoth accessory catalogue · Page 75

SK collet set

Models on this page

ASK06-NUTASK06C-NUTASK10-NUTASK10C-NUTASK13-NUTASK13C-NUTASK16-NUTASK16AC-NUTASK16CASK16C-NUTASK20-NUTASK20CASK20C-NUTASK25-NUTASK25CASK25C-NUTSK10-8PCSSK13-7PCSSK16-7PCSSK25-7PCSWASK06WASK06CWASK10(WAVC6)WASK10CWASK13WASK13CWASK16(WAVC12)WASK16ACWASK16CWASK20WASK20CWASK25(WASG20)WASK25C

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

SK Collet Set

SK · Taiwan

collet_sets (mm)
model_no	spec
SK10-8PCS	3,4,5,6,7,8,9,10
SK13-7PCS	3,4,5,6,8,10,12
SK16-7PCS	3,4,6,8,10,12,16
SK25-7PCS	6,8,10,12,16,20,25

collet_grade (µm)
collet_grade	runout_max_um_4xd
A	≤10 µ
AA	≤5 µ

Order references
Code	Model
on request	SK10-8PCS
on request	SK13-7PCS
on request	SK16-7PCS
on request	SK25-7PCS

When ordering, please specify the collet grade with A or AA. SK COLLET SET FOR END MILL upon your request.

ASK Wrench - WASK06/WASK10/WASK16/WASK25

WASK · Taiwan

dimensions (mm)
model_no	od
WASK06	19.05
WASK10(WAVC6)	27
WASK13	33
WASK16(WAVC12)	40
WASK20	48
WASK25(WASG20)	54

Order references
Code	Model
on request	WASK06
on request	WASK10(WAVC6)
on request	WASK13
on request	WASK16(WAVC12)
on request	WASK20
on request	WASK25(WASG20)

ASK Nut - ASK06/ASK10/ASK16/ASK25

ASK-NUT · Taiwan

dimensions (mm)
model_no	od	g
ASK06-NUT	20	M15 x 1.0P
ASK10-NUT	27	M22 x 1.0P
ASK13-NUT	33	M27 x 1.0P
ASK16-NUT	40	M32 x 1.5P
ASK20-NUT	48	M40 x 1.0P
ASK25-NUT	54	M45 x 1.5P

Order references
Code	Model
on request	ASK06-NUT
on request	ASK10-NUT
on request	ASK13-NUT
on request	ASK16-NUT
on request	ASK20-NUT
on request	ASK25-NUT

ASK Wrench - ASK16C/ASK20C/ASK25C

ASK-C · Taiwan

dimensions (mm)
model_no	od
ASK16C	40
ASK20C	48
ASK25C	54

Order references
Code	Model
on request	ASK16C
on request	ASK20C
on request	ASK25C

Hook (C) spanner type; wrench shown marked ASC 32-42.

ASK Nut - ASK10C/ASK16C/ASK20C/ASK25C

ASK-C-NUT · Taiwan

dimensions (mm)
model_no	od
ASK06C-NUT	19.05
ASK10C-NUT	27
ASK13C-NUT	33
ASK16AC-NUT	40
ASK16C-NUT	40
ASK20C-NUT	48
ASK25C-NUT	54

Order references
Code	Model
on request	ASK06C-NUT
on request	ASK10C-NUT
on request	ASK13C-NUT
on request	ASK16AC-NUT
on request	ASK16C-NUT
on request	ASK20C-NUT
on request	ASK25C-NUT

C-Type Wrench

WASK-C · Taiwan

dimensions (mm)
model_no	fig	d	weight_kg
WASK06C	1	19	0.08
WASK10C	1	25	0.12
WASK13C	1	33	0.18
WASK16AC	1	36.5	0.2
WASK16C	2	40	0.2
WASK20C	2	48	0.22
WASK25C	2	54	0.25

Order references
Code	Model
on request	WASK06C
on request	WASK10C
on request	WASK13C
on request	WASK16AC
on request	WASK16C
on request	WASK20C
on request	WASK25C

Two figures: Fig.1 closed-body type, Fig.2 open-jaw type.
