Frejoth accessory catalogue · Page 79

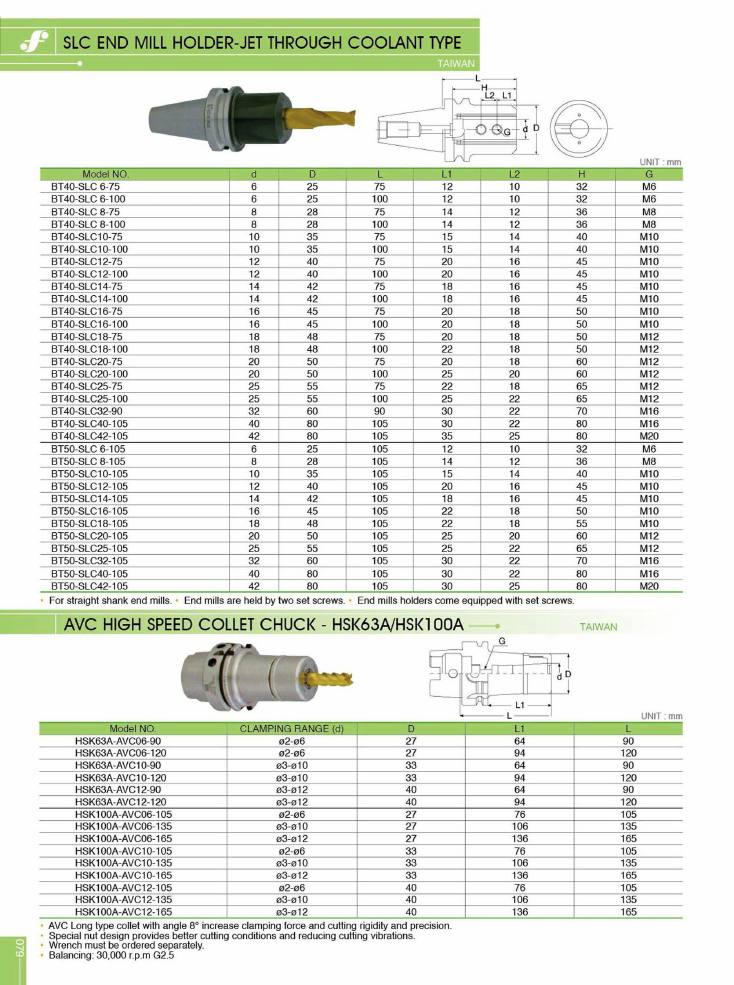

SLC end mill holder / AVC high speed collet chuck

Models on this page

BT40-SLC 6-100BT40-SLC 6-75BT40-SLC 8-100BT40-SLC 8-75BT40-SLC10-100BT40-SLC10-75BT40-SLC12-100BT40-SLC12-75BT40-SLC14-100BT40-SLC14-75BT40-SLC16-100BT40-SLC16-75BT40-SLC18-100BT40-SLC18-75BT40-SLC20-100BT40-SLC20-75BT40-SLC25-100BT40-SLC25-75BT40-SLC32-90BT40-SLC40-105BT40-SLC42-105BT50-SLC 6-105BT50-SLC 8-105BT50-SLC10-105BT50-SLC12-105BT50-SLC14-105BT50-SLC16-105BT50-SLC18-105BT50-SLC20-105BT50-SLC25-105BT50-SLC32-105BT50-SLC40-105BT50-SLC42-105HSK100A-AVC06-105HSK100A-AVC06-135HSK100A-AVC06-165HSK100A-AVC10-105HSK100A-AVC10-135HSK100A-AVC10-165HSK100A-AVC12-105HSK100A-AVC12-135HSK100A-AVC12-165HSK63A-AVC06-120HSK63A-AVC06-90HSK63A-AVC10-120HSK63A-AVC10-90HSK63A-AVC12-120HSK63A-AVC12-90

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

SLC End Mill Holder-Jet Through Coolant Type

BT40-SLC / BT50-SLC · Taiwan

dimensions (mm)
model_no	d	d_outer	l	l1	l2	h	g
BT40-SLC 6-75	6	25	75	12	10	32	M6
BT40-SLC 6-100	6	25	100	12	10	32	M6
BT40-SLC 8-75	8	28	75	14	12	36	M8
BT40-SLC 8-100	8	28	100	14	12	36	M8
BT40-SLC10-75	10	35	75	15	14	40	M10
BT40-SLC10-100	10	35	100	15	14	40	M10
BT40-SLC12-75	12	40	75	20	16	45	M10
BT40-SLC12-100	12	40	100	20	16	45	M10
BT40-SLC14-75	14	42	75	18	16	45	M10
BT40-SLC14-100	14	42	100	18	16	45	M10
BT40-SLC16-75	16	45	75	20	18	50	M10
BT40-SLC16-100	16	45	100	20	18	50	M10
BT40-SLC18-75	18	48	75	20	18	50	M12
BT40-SLC18-100	18	48	100	22	18	50	M12
BT40-SLC20-75	20	50	75	20	18	60	M12
BT40-SLC20-100	20	50	100	25	20	60	M12
BT40-SLC25-75	25	55	75	22	18	65	M12
BT40-SLC25-100	25	55	100	25	22	65	M12
BT40-SLC32-90	32	60	90	30	22	70	M16
BT40-SLC40-105	40	80	105	30	22	80	M16
BT40-SLC42-105	42	80	105	35	25	80	M20
BT50-SLC 6-105	6	25	105	12	10	32	M6
BT50-SLC 8-105	8	28	105	14	12	36	M8
BT50-SLC10-105	10	35	105	15	14	40	M10
BT50-SLC12-105	12	40	105	20	16	45	M10
BT50-SLC14-105	14	42	105	18	16	45	M10
BT50-SLC16-105	16	45	105	22	18	50	M10
BT50-SLC18-105	18	48	105	22	18	55	M10
BT50-SLC20-105	20	50	105	25	20	60	M12
BT50-SLC25-105	25	55	105	25	22	65	M12
BT50-SLC32-105	32	60	105	30	22	70	M16
BT50-SLC40-105	40	80	105	30	22	80	M16
BT50-SLC42-105	42	80	105	30	25	80	M20

Order references
Code	Model
on request	BT40-SLC 6-75
on request	BT40-SLC 6-100
on request	BT40-SLC 8-75
on request	BT40-SLC 8-100
on request	BT40-SLC10-75
on request	BT40-SLC10-100
on request	BT40-SLC12-75
on request	BT40-SLC12-100
on request	BT40-SLC14-75
on request	BT40-SLC14-100
on request	BT40-SLC16-75
on request	BT40-SLC16-100
on request	BT40-SLC18-75
on request	BT40-SLC18-100
on request	BT40-SLC20-75
on request	BT40-SLC20-100
on request	BT40-SLC25-75
on request	BT40-SLC25-100
on request	BT40-SLC32-90
on request	BT40-SLC40-105
on request	BT40-SLC42-105
on request	BT50-SLC 6-105
on request	BT50-SLC 8-105
on request	BT50-SLC10-105
on request	BT50-SLC12-105
on request	BT50-SLC14-105
on request	BT50-SLC16-105
on request	BT50-SLC18-105
on request	BT50-SLC20-105
on request	BT50-SLC25-105
on request	BT50-SLC32-105
on request	BT50-SLC40-105
on request	BT50-SLC42-105

For straight shank end mills. End mills are held by two set screws. End mill holders come equipped with set screws.

AVC High Speed Collet Chuck - HSK63A/HSK100A

AVC · Taiwan

AVC Long type collet with angle 8° increases clamping force and cutting rigidity and precision.
Special nut design provides better cutting conditions and reduces cutting vibrations.
Wrench must be ordered separately.
Balancing: 30,000 r.p.m G2.5

dimensions (mm)
model_no	clamping_range_d	d	l1	l
HSK63A-AVC06-90	ø2-ø6	27	64	90
HSK63A-AVC06-120	ø2-ø6	27	94	120
HSK63A-AVC10-90	ø3-ø10	33	64	90
HSK63A-AVC10-120	ø3-ø10	33	94	120
HSK63A-AVC12-90	ø3-ø12	40	64	90
HSK63A-AVC12-120	ø3-ø12	40	94	120
HSK100A-AVC06-105	ø2-ø6	27	76	105
HSK100A-AVC06-135	ø3-ø10	27	106	135
HSK100A-AVC06-165	ø3-ø12	27	136	165
HSK100A-AVC10-105	ø2-ø6	33	76	105
HSK100A-AVC10-135	ø3-ø10	33	106	135
HSK100A-AVC10-165	ø3-ø12	33	136	165
HSK100A-AVC12-105	ø2-ø6	40	76	105
HSK100A-AVC12-135	ø3-ø10	40	106	135
HSK100A-AVC12-165	ø3-ø12	40	136	165

Order references
Code	Model
on request	HSK63A-AVC06-90
on request	HSK63A-AVC06-120
on request	HSK63A-AVC10-90
on request	HSK63A-AVC10-120
on request	HSK63A-AVC12-90
on request	HSK63A-AVC12-120
on request	HSK100A-AVC06-105
on request	HSK100A-AVC06-135
on request	HSK100A-AVC06-165
on request	HSK100A-AVC10-105
on request	HSK100A-AVC10-135
on request	HSK100A-AVC10-165
on request	HSK100A-AVC12-105
on request	HSK100A-AVC12-135
on request	HSK100A-AVC12-165

SLC end mill holder / AVC high speed collet chuck

Models on this page

Get in touch about this product

SLC End Mill Holder-Jet Through Coolant Type

AVC High Speed Collet Chuck - HSK63A/HSK100A

Talk to our team about your next machine.
