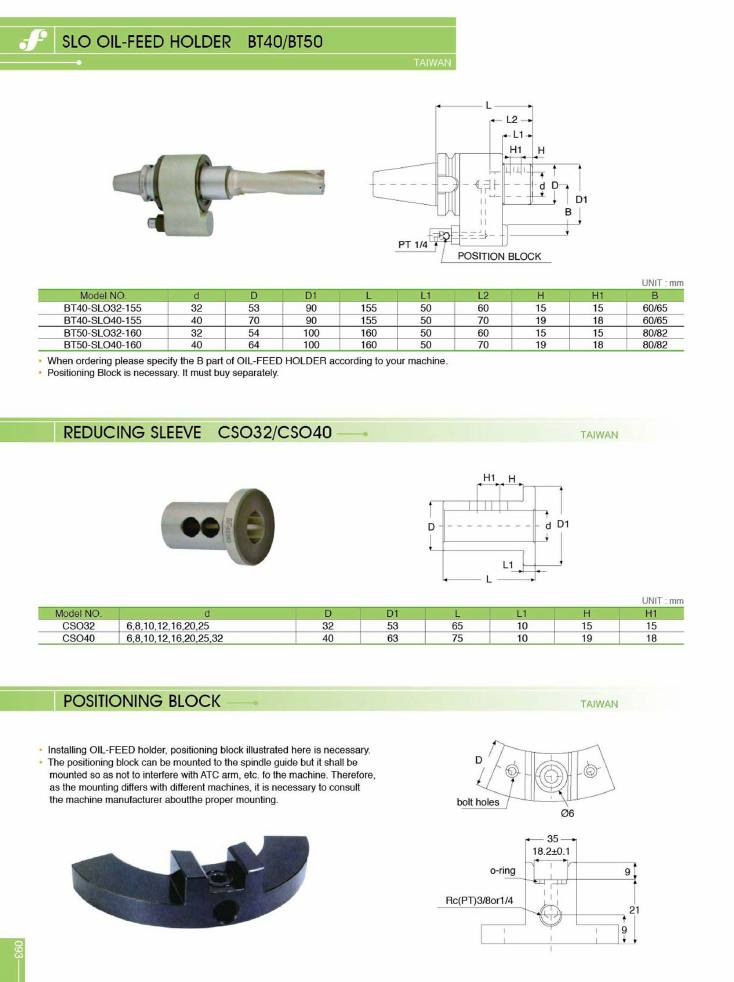

Frejoth accessory catalogue · Page 93
SLO oil-feed holder / Reducing sleeve / Positioning block
Models on this page
BT40-SLO32-155BT40-SLO40-155BT50-SLO32-160BT50-SLO40-160CSO32CSO40
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
SLO Oil-Feed Holder BT40/BT50
SLO · Taiwan
| model_no | d | d_bore | d1 | l | l1 | l2 | h | h1 | b |
|---|---|---|---|---|---|---|---|---|---|
| BT40-SLO32-155 | 32 | 53 | 90 | 155 | 50 | 60 | 15 | 15 | 60/65 |
| BT40-SLO40-155 | 40 | 70 | 90 | 155 | 50 | 70 | 19 | 18 | 60/65 |
| BT50-SLO32-160 | 32 | 54 | 100 | 160 | 50 | 60 | 15 | 15 | 80/82 |
| BT50-SLO40-160 | 40 | 64 | 100 | 160 | 50 | 70 | 19 | 18 | 80/82 |
| Code | Model |
|---|---|
| on request | BT40-SLO32-155 |
| on request | BT40-SLO40-155 |
| on request | BT50-SLO32-160 |
| on request | BT50-SLO40-160 |
When ordering please specify the B part of OIL-FEED HOLDER according to your machine. Positioning Block is necessary. It must be bought separately. Drawing notes: PT 1/4 oil inlet, POSITION BLOCK shown fitted.
Reducing Sleeve CSO32/CSO40
CSO · Taiwan
| model_no | d | d_outer | d1 | l | l1 | h | h1 |
|---|---|---|---|---|---|---|---|
| CSO32 | 6,8,10,12,16,20,25 | 32 | 53 | 65 | 10 | 15 | 15 |
| CSO40 | 6,8,10,12,16,20,25,32 | 40 | 63 | 75 | 10 | 19 | 18 |
| Code | Model |
|---|---|
| on request | CSO32 |
| on request | CSO40 |
Positioning Block
Taiwan
- Installing OIL-FEED holder, positioning block illustrated here is necessary.
- The positioning block can be mounted to the spindle guide but it shall be mounted so as not to interfere with ATC arm etc. of the machine. Therefore, as the mounting differs with different machines, it is necessary to consult the machine manufacturer about the proper mounting.
No model table printed. Drawing dimensions only: overall width 35, slot 18.2±0.1, heights 9 / 21 / 9, ø6 bolt holes, Rc(PT)3/8 or 1/4 port, o-ring.
