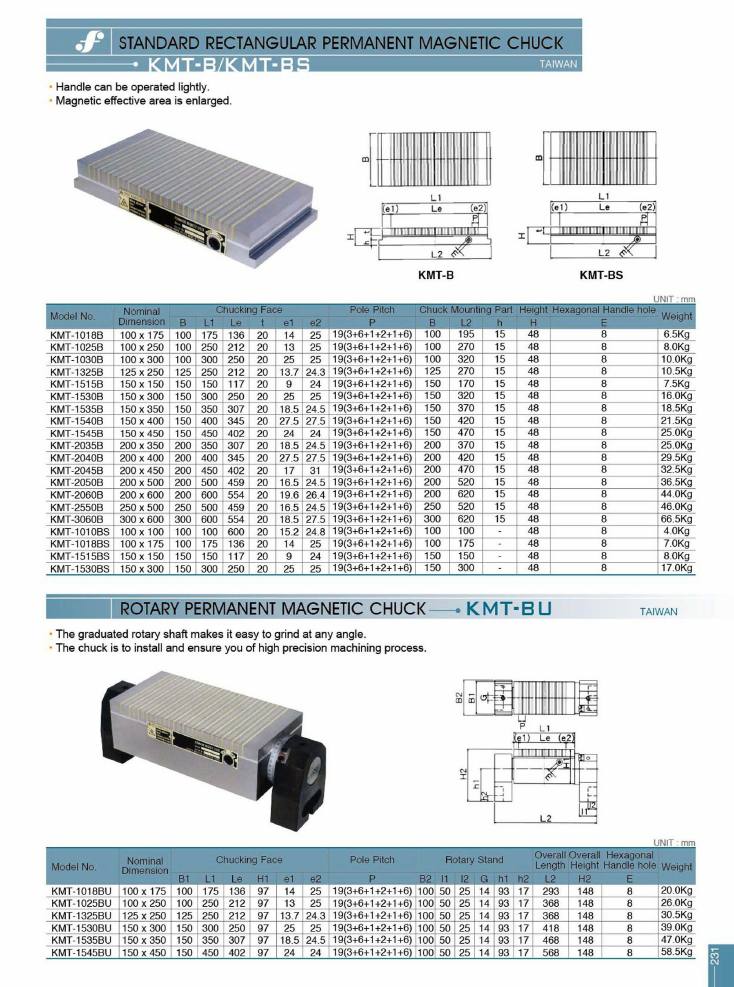

Frejoth accessory catalogue · Page 234

STANDARD RECTANGULAR PERMANENT MAGNETIC CHUCK

Models on this page

KMT-1010BSKMT-1018BKMT-1018BSKMT-1018BUKMT-1025BKMT-1025BUKMT-1030BKMT-1325BKMT-1325BUKMT-1515BKMT-1515BSKMT-1530BKMT-1530BSKMT-1530BUKMT-1535BKMT-1535BUKMT-1540BKMT-1545BKMT-1545BUKMT-2035BKMT-2040BKMT-2045BKMT-2050BKMT-2060BKMT-2550BKMT-3060B

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

STANDARD RECTANGULAR PERMANENT MAGNETIC CHUCK

KMT-B/KMT-BS · TAIWAN

Handle can be operated lightly.
Magnetic effective area is enlarged.

specifications (mm)
model_no	nominal_dimension	b	l1	le	t	e1	e2	p	b_mounting	l2	h	height_h	e	weight
KMT-1018B	100 x 175	100	175	136	20	14	25	19(3+6+1+2+1+6)	100	195	15	48	8	6.5Kg
KMT-1025B	100 x 250	100	250	212	20	13	25	19(3+6+1+2+1+6)	100	270	15	48	8	8.0Kg
KMT-1030B	100 x 300	100	300	250	20	25	25	19(3+6+1+2+1+6)	100	320	15	48	8	10.0Kg
KMT-1325B	125 x 250	125	250	212	20	13.7	24.3	19(3+6+1+2+1+6)	125	270	15	48	8	10.5Kg
KMT-1515B	150 x 150	150	150	117	20	9	24	19(3+6+1+2+1+6)	150	170	15	48	8	7.5Kg
KMT-1530B	150 x 300	150	300	250	20	25	25	19(3+6+1+2+1+6)	150	320	15	48	8	16.0Kg
KMT-1535B	150 x 350	150	350	307	20	18.5	24.5	19(3+6+1+2+1+6)	150	370	15	48	8	18.5Kg
KMT-1540B	150 x 400	150	400	345	20	27.5	27.5	19(3+6+1+2+1+6)	150	420	15	48	8	21.5Kg
KMT-1545B	150 x 450	150	450	402	20	24	24	19(3+6+1+2+1+6)	150	470	15	48	8	25.0Kg
KMT-2035B	200 x 350	200	350	307	20	18.5	24.5	19(3+6+1+2+1+6)	200	370	15	48	8	25.0Kg
KMT-2040B	200 x 400	200	400	345	20	27.5	27.5	19(3+6+1+2+1+6)	200	420	15	48	8	29.5Kg
KMT-2045B	200 x 450	200	450	402	20	17	31	19(3+6+1+2+1+6)	200	470	15	48	8	32.5Kg
KMT-2050B	200 x 500	200	500	459	20	16.5	24.5	19(3+6+1+2+1+6)	200	520	15	48	8	36.5Kg
KMT-2060B	200 x 600	200	600	554	20	19.6	26.4	19(3+6+1+2+1+6)	200	620	15	48	8	44.0Kg
KMT-2550B	250 x 500	250	500	459	20	16.5	24.5	19(3+6+1+2+1+6)	250	520	15	48	8	46.0Kg
KMT-3060B	300 x 600	300	600	554	20	18.5	27.5	19(3+6+1+2+1+6)	300	620	15	48	8	66.5Kg
KMT-1010BS	100 x 100	100	100	600	20	15.2	24.8	19(3+6+1+2+1+6)	100	100	-	48	8	4.0Kg
KMT-1018BS	100 x 175	100	175	136	20	14	25	19(3+6+1+2+1+6)	100	175	-	48	8	7.0Kg
KMT-1515BS	150 x 150	150	150	117	20	9	24	19(3+6+1+2+1+6)	150	150	-	48	8	8.0Kg
KMT-1530BS	150 x 300	150	300	250	20	25	25	19(3+6+1+2+1+6)	150	300	-	48	8	17.0Kg

Order references
Code	Model
on request	KMT-1018B
on request	KMT-1025B
on request	KMT-1030B
on request	KMT-1325B
on request	KMT-1515B
on request	KMT-1530B
on request	KMT-1535B
on request	KMT-1540B
on request	KMT-1545B
on request	KMT-2035B
on request	KMT-2040B
on request	KMT-2045B
on request	KMT-2050B
on request	KMT-2060B
on request	KMT-2550B
on request	KMT-3060B
on request	KMT-1010BS
on request	KMT-1018BS
on request	KMT-1515BS
on request	KMT-1530BS

Two body styles are drawn, KMT-B and KMT-BS; the -BS models print a dash in the h column.

ROTARY PERMANENT MAGNETIC CHUCK

KMT-BU · TAIWAN

The graduated rotary shaft makes it easy to grind at any angle.
The chuck is to install and ensure you of high precision machining process.

specifications (mm)
model_no	nominal_dimension	b1	l1	le	h1	e1	e2	p	b2	i1	i2	g	h1_stand	h2	overall_length_l2	overall_height_h2	e	weight
KMT-1018BU	100 x 175	100	175	136	97	14	25	19(3+6+1+2+1+6)	100	50	25	14	93	17	293	148	8	20.0Kg
KMT-1025BU	100 x 250	100	250	212	97	13	25	19(3+6+1+2+1+6)	100	50	25	14	93	17	368	148	8	26.0Kg
KMT-1325BU	125 x 250	125	250	212	97	13.7	24.3	19(3+6+1+2+1+6)	100	50	25	14	93	17	368	148	8	30.5Kg
KMT-1530BU	150 x 300	150	300	250	97	25	25	19(3+6+1+2+1+6)	100	50	25	14	93	17	418	148	8	39.0Kg
KMT-1535BU	150 x 350	150	350	307	97	18.5	24.5	19(3+6+1+2+1+6)	100	50	25	14	93	17	468	148	8	47.0Kg
KMT-1545BU	150 x 450	150	450	402	97	24	24	19(3+6+1+2+1+6)	100	50	25	14	93	17	568	148	8	58.5Kg

Order references
Code	Model
on request	KMT-1018BU
on request	KMT-1025BU
on request	KMT-1325BU
on request	KMT-1530BU
on request	KMT-1535BU
on request	KMT-1545BU
