STARIGHT SHANK DRILL CHUCK ARBORS
Models on this page
C10xJT0C20xB12C20xB16C20xJT0C20xJT1C20xJT2C20xJT3C20xJT6C25xJT2C25xJT3C25xJT4C25xJT6C32xJT2C32xJT6C42xJT6CL-51-040CL-51-041CL-51-042CL-51-043CL-51-044CL-51-045CL-51-046CL-51-047CL-51-048CL-51-049CL-51-050CL-51-051CL-51-052CL-51-053CL-51-054CL-51-055CL-51-056CL-51-057CL-51-058CL-51-059CL-51-060CL-51-061CL-51-062CL-51-063CL-51-064CL-51-065CL-51-066CL-51-067CL-51-068CL-51-069CL-51-085CL-51-086CL-51-087CL-51-088CL-51-089CL-51-090CL-51-091CL-51-092CL-51-093CL-51-094CL-51-095CL-51-096CL-51-097CL-51-098CL-51-099CL-51-100CL-51-101CL-51-102CL-51-103CL-51-104CL-51-105CL-51-106CL-51-107CL-51-108
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
STARIGHT SHANK DRILL CHUCK ARBORS
TAIWAN
| order_no | d | jacobs_taper | l | h |
|---|---|---|---|---|
| CL-51-040 | 3/8" | 0 | 79 | 15 |
| CL-51-041 | 3/8" | 1 | 84 | 20 |
| CL-51-042 | 3/8" | 2 | 90 | 26 |
| CL-51-043 | 3/8" | 3 | 99 | 35 |
| CL-51-044 | 3/8" | 6 | 93 | 29 |
| CL-51-045 | 3/8" | 33 | 93 | 29 |
| CL-51-046 | 1/2" | 0 | 79 | 15 |
| CL-51-047 | 1/2" | 1 | 84 | 20 |
| CL-51-048 | 1/2" | 2 | 90 | 26 |
| CL-51-049 | 1/2" | 3 | 99 | 35 |
| CL-51-050 | 1/2" | 6 | 93 | 29 |
| CL-51-051 | 1/2" | 33 | 93 | 29 |
| CL-51-052 | 5/8" | 0 | 79 | 15 |
| CL-51-053 | 5/8" | 1 | 84 | 20 |
| CL-51-054 | 5/8" | 2 | 90 | 26 |
| CL-51-055 | 5/8" | 3 | 99 | 35 |
| CL-51-056 | 5/8" | 6 | 93 | 29 |
| CL-51-057 | 5/8" | 33 | 93 | 29 |
| CL-51-058 | 3/4" | 1 | 96 | 20 |
| CL-51-059 | 3/4" | 2 | 102 | 26 |
| CL-51-060 | 3/4" | 3 | 111 | 35 |
| CL-51-061 | 3/4" | 4 | 122 | 46 |
| CL-51-062 | 3/4" | 6 | 105 | 29 |
| CL-51-063 | 3/4" | 33 | 105 | 29 |
| CL-51-064 | 1" | 1 | 96 | 20 |
| CL-51-065 | 1" | 2 | 102 | 26 |
| CL-51-066 | 1" | 3 | 111 | 35 |
| CL-51-067 | 1" | 4 | 122 | 46 |
| CL-51-068 | 1" | 6 | 105 | 29 |
| CL-51-069 | 1" | 33 | 105 | 29 |
| order_no | size | d | jacobs_taper | l | h |
|---|---|---|---|---|---|
| CL-51-070 | C10xJT0 | 10 | 0 | 64 | 14 |
| CL-51-071 | C20xJT0 | 20 | 0 | 69 | 9 |
| CL-51-072 | C20xJT1 | 20 | 1 | 74 | 19 |
| CL-51-073 | C20xJT2 | 20 | 2 | 80 | 25 |
| CL-51-074 | C20xJT3 | 20 | 3 | 90 | 35 |
| CL-51-075 | C20xJT6 | 20 | 6 | 83 | 28 |
| CL-51-076 | C25xJT2 | 25 | 2 | 85 | 25 |
| CL-51-077 | C25xJT3 | 25 | 3 | 95 | 35 |
| CL-51-078 | C25xJT4 | 25 | 4 | 106 | 46 |
| CL-51-079 | C25xJT6 | 25 | 6 | 88 | 28 |
| CL-51-080 | C32xJT2 | 32 | 2 | 95 | 25 |
| CL-51-081 | C32xJT6 | 32 | 6 | 98 | 28 |
| CL-51-082 | C42xJT6 | 42 | 6 | 128 | 28 |
| CL-51-083 | C20xB12 | 20 | 12.1 mm | 77.5 | 22.5 |
| CL-51-084 | C20xB16 | 20 | 15.733 mm | 84 | 29 |
| Code | Model |
|---|---|
| CL-51-040 | CL-51-040 |
| CL-51-041 | CL-51-041 |
| CL-51-042 | CL-51-042 |
| CL-51-043 | CL-51-043 |
| CL-51-044 | CL-51-044 |
| CL-51-045 | CL-51-045 |
| CL-51-046 | CL-51-046 |
| CL-51-047 | CL-51-047 |
| CL-51-048 | CL-51-048 |
| CL-51-049 | CL-51-049 |
| CL-51-050 | CL-51-050 |
| CL-51-051 | CL-51-051 |
| CL-51-052 | CL-51-052 |
| CL-51-053 | CL-51-053 |
| CL-51-054 | CL-51-054 |
| CL-51-055 | CL-51-055 |
| CL-51-056 | CL-51-056 |
| CL-51-057 | CL-51-057 |
| CL-51-058 | CL-51-058 |
| CL-51-059 | CL-51-059 |
| CL-51-060 | CL-51-060 |
| CL-51-061 | CL-51-061 |
| CL-51-062 | CL-51-062 |
| CL-51-063 | CL-51-063 |
| CL-51-064 | CL-51-064 |
| CL-51-065 | CL-51-065 |
| CL-51-066 | CL-51-066 |
| CL-51-067 | CL-51-067 |
| CL-51-068 | CL-51-068 |
| CL-51-069 | CL-51-069 |
| CL-51-070 | C10xJT0 |
| CL-51-071 | C20xJT0 |
| CL-51-072 | C20xJT1 |
| CL-51-073 | C20xJT2 |
| CL-51-074 | C20xJT3 |
| CL-51-075 | C20xJT6 |
| CL-51-076 | C25xJT2 |
| CL-51-077 | C25xJT3 |
| CL-51-078 | C25xJT4 |
| CL-51-079 | C25xJT6 |
| CL-51-080 | C32xJT2 |
| CL-51-081 | C32xJT6 |
| CL-51-082 | C42xJT6 |
| CL-51-083 | C20xB12 |
| CL-51-084 | C20xB16 |

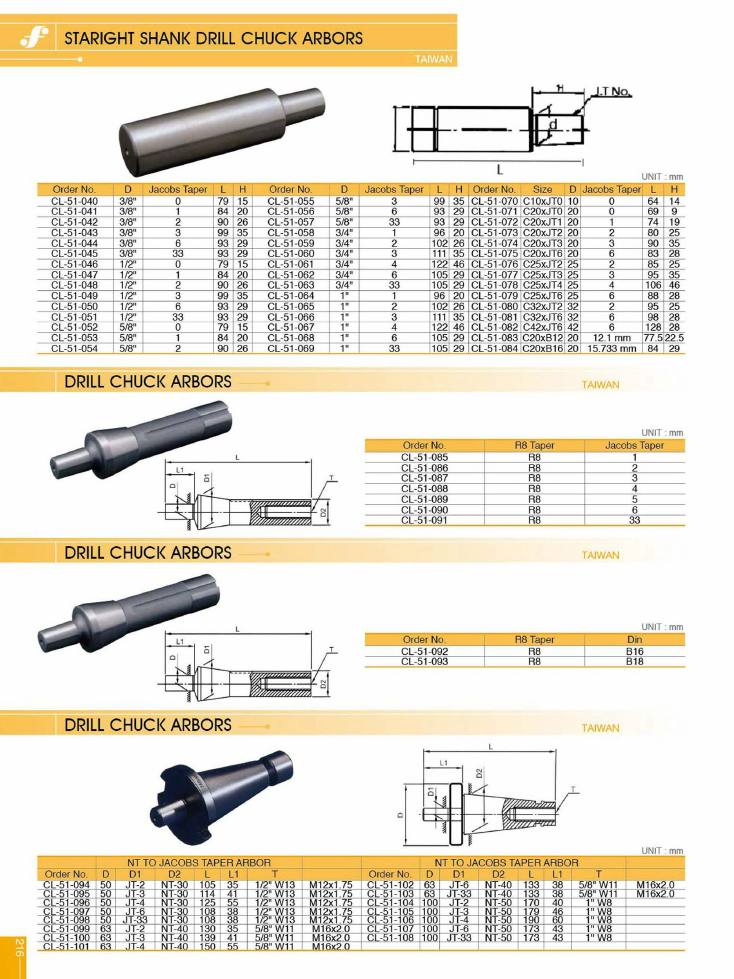

Printed heading reads 'STARIGHT SHANK DRILL CHUCK ARBORS'. Dimension drawing labels L, H, d and J.T No.
DRILL CHUCK ARBORS (R8 to Jacobs taper)
TAIWAN
| order_no | r8_taper | jacobs_taper |
|---|---|---|
| CL-51-085 | R8 | 1 |
| CL-51-086 | R8 | 2 |
| CL-51-087 | R8 | 3 |
| CL-51-088 | R8 | 4 |
| CL-51-089 | R8 | 5 |
| CL-51-090 | R8 | 6 |
| CL-51-091 | R8 | 33 |
| Code | Model |
|---|---|
| CL-51-085 | CL-51-085 |
| CL-51-086 | CL-51-086 |
| CL-51-087 | CL-51-087 |
| CL-51-088 | CL-51-088 |
| CL-51-089 | CL-51-089 |
| CL-51-090 | CL-51-090 |
| CL-51-091 | CL-51-091 |
Printed heading is simply 'DRILL CHUCK ARBORS'; qualifier added here to distinguish the three identically-titled blocks on this page. Dimension drawing labels D, D1, D2, L, L1, T.
DRILL CHUCK ARBORS (R8 to B-taper / Din)
TAIWAN
| order_no | r8_taper | din |
|---|---|---|
| CL-51-092 | R8 | B16 |
| CL-51-093 | R8 | B18 |
| Code | Model |
|---|---|
| CL-51-092 | CL-51-092 |
| CL-51-093 | CL-51-093 |
Printed heading is simply 'DRILL CHUCK ARBORS'; qualifier added here to distinguish the three identically-titled blocks on this page. Dimension drawing labels D, D1, D2, L, L1, T.
DRILL CHUCK ARBORS (NT to Jacobs taper arbor)
TAIWAN
| order_no | d | d1 | d2 | l | l1 | t | drawbar_thread |
|---|---|---|---|---|---|---|---|
| CL-51-094 | 50 | JT-2 | NT-30 | 105 | 35 | 1/2" W13 | M12x1.75 |
| CL-51-095 | 50 | JT-3 | NT-30 | 114 | 41 | 1/2" W13 | M12x1.75 |
| CL-51-096 | 50 | JT-4 | NT-30 | 125 | 55 | 1/2" W13 | M12x1.75 |
| CL-51-097 | 50 | JT-6 | NT-30 | 108 | 38 | 1/2" W13 | M12x1.75 |
| CL-51-098 | 50 | JT-33 | NT-30 | 108 | 38 | 1/2" W13 | M12x1.75 |
| CL-51-099 | 63 | JT-2 | NT-40 | 130 | 35 | 5/8" W11 | M16x2.0 |
| CL-51-100 | 63 | JT-3 | NT-40 | 139 | 41 | 5/8" W11 | M16x2.0 |
| CL-51-101 | 63 | JT-4 | NT-40 | 150 | 55 | 5/8" W11 | M16x2.0 |
| CL-51-102 | 63 | JT-6 | NT-40 | 133 | 38 | 5/8" W11 | M16x2.0 |
| CL-51-103 | 63 | JT-33 | NT-40 | 133 | 38 | 5/8" W11 | M16x2.0 |
| CL-51-104 | 100 | JT-2 | NT-50 | 170 | 40 | 1" W8 | — |
| CL-51-105 | 100 | JT-3 | NT-50 | 179 | 46 | 1" W8 | — |
| CL-51-106 | 100 | JT-4 | NT-50 | 190 | 60 | 1" W8 | — |
| CL-51-107 | 100 | JT-6 | NT-50 | 173 | 43 | 1" W8 | — |
| CL-51-108 | 100 | JT-33 | NT-50 | 173 | 43 | 1" W8 | — |
| Code | Model |
|---|---|
| CL-51-094 | CL-51-094 |
| CL-51-095 | CL-51-095 |
| CL-51-096 | CL-51-096 |
| CL-51-097 | CL-51-097 |
| CL-51-098 | CL-51-098 |
| CL-51-099 | CL-51-099 |
| CL-51-100 | CL-51-100 |
| CL-51-101 | CL-51-101 |
| CL-51-102 | CL-51-102 |
| CL-51-103 | CL-51-103 |
| CL-51-104 | CL-51-104 |
| CL-51-105 | CL-51-105 |
| CL-51-106 | CL-51-106 |
| CL-51-107 | CL-51-107 |
| CL-51-108 | CL-51-108 |
Printed heading is simply 'DRILL CHUCK ARBORS'; the table spans two side-by-side blocks each sub-headed 'NT TO JACOBS TAPER ARBOR'. Dimension drawing labels D, D1, D2, L, L1, T. The final column is unnamed on the page and carries the drawbar thread.
