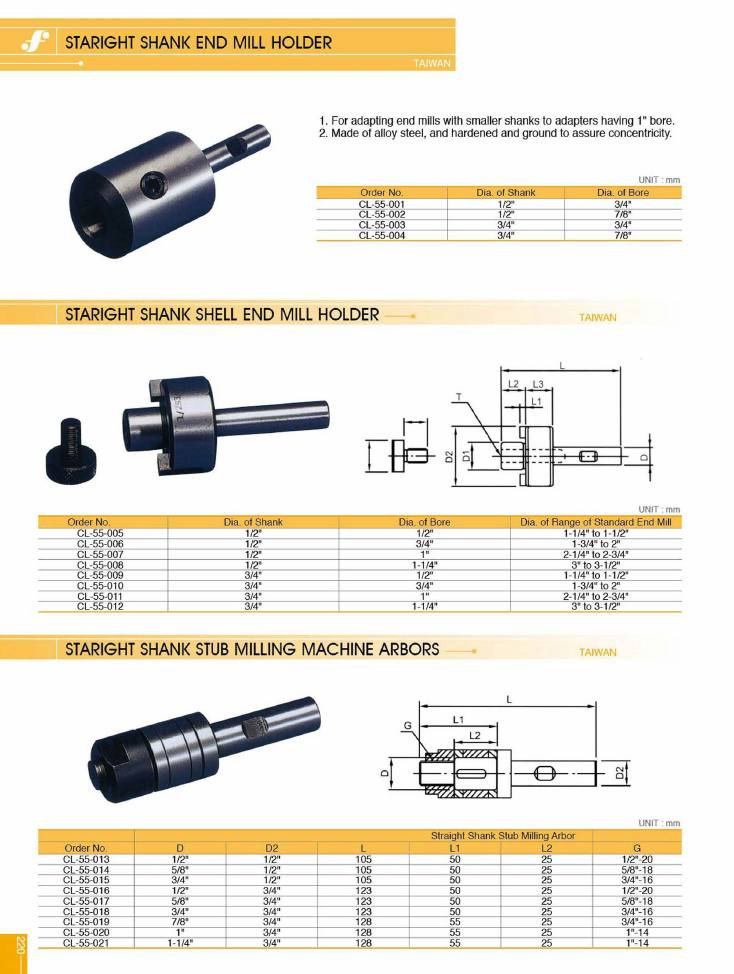

Frejoth accessory catalogue · Page 220
Staright Shank End Mill Holder
Models on this page
CL-55-001CL-55-002CL-55-003CL-55-004CL-55-005CL-55-006CL-55-007CL-55-008CL-55-009CL-55-010CL-55-011CL-55-012CL-55-013CL-55-014CL-55-015CL-55-016CL-55-017CL-55-018CL-55-019CL-55-020CL-55-021
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Staright Shank End Mill Holder
Taiwan
- For adapting end mills with smaller shanks to adapters having 1" bore.
- Made of alloy steel, and hardened and ground to assure concentricity.
| order_no | dia_of_shank | dia_of_bore |
|---|---|---|
| CL-55-001 | 1/2" | 3/4" |
| CL-55-002 | 1/2" | 7/8" |
| CL-55-003 | 3/4" | 3/4" |
| CL-55-004 | 3/4" | 7/8" |
| Code | Model |
|---|---|
| CL-55-001 | CL-55-001 |
| CL-55-002 | CL-55-002 |
| CL-55-003 | CL-55-003 |
| CL-55-004 | CL-55-004 |
Staright Shank Shell End Mill Holder
Taiwan
| order_no | dia_of_shank | dia_of_bore | dia_of_range_of_standard_end_mill |
|---|---|---|---|
| CL-55-005 | 1/2" | 1/2" | 1-1/4" to 1-1/2" |
| CL-55-006 | 1/2" | 3/4" | 1-3/4" to 2" |
| CL-55-007 | 1/2" | 1" | 2-1/4" to 2-3/4" |
| CL-55-008 | 1/2" | 1-1/4" | 3" to 3-1/2" |
| CL-55-009 | 3/4" | 1/2" | 1-1/4" to 1-1/2" |
| CL-55-010 | 3/4" | 3/4" | 1-3/4" to 2" |
| CL-55-011 | 3/4" | 1" | 2-1/4" to 2-3/4" |
| CL-55-012 | 3/4" | 1-1/4" | 3" to 3-1/2" |
| Code | Model |
|---|---|
| CL-55-008 | CL-55-008 |
| CL-55-005 | CL-55-005 |
| CL-55-006 | CL-55-006 |
| CL-55-007 | CL-55-007 |
| CL-55-009 | CL-55-009 |
| CL-55-010 | CL-55-010 |
| CL-55-011 | CL-55-011 |
| CL-55-012 | CL-55-012 |
Staright Shank Stub Milling Machine Arbors
Taiwan
| order_no | D | D2 | L | L1 | L2 | G |
|---|---|---|---|---|---|---|
| CL-55-013 | 1/2" | 1/2" | 105 | 50 | 25 | 1/2"-20 |
| CL-55-014 | 5/8" | 1/2" | 105 | 50 | 25 | 5/8"-18 |
| CL-55-015 | 3/4" | 1/2" | 105 | 50 | 25 | 3/4"-16 |
| CL-55-016 | 1/2" | 3/4" | 123 | 50 | 25 | 1/2"-20 |
| CL-55-017 | 5/8" | 3/4" | 123 | 50 | 25 | 5/8"-18 |
| CL-55-018 | 3/4" | 3/4" | 123 | 50 | 25 | 3/4"-16 |
| CL-55-019 | 7/8" | 3/4" | 128 | 55 | 25 | 3/4"-16 |
| CL-55-020 | 1" | 3/4" | 128 | 55 | 25 | 1"-14 |
| CL-55-021 | 1-1/4" | 3/4" | 128 | 55 | 25 | 1"-14 |
| Code | Model |
|---|---|
| CL-55-013 | CL-55-013 |
| CL-55-014 | CL-55-014 |
| CL-55-015 | CL-55-015 |
| CL-55-016 | CL-55-016 |
| CL-55-017 | CL-55-017 |
| CL-55-018 | CL-55-018 |
| CL-55-019 | CL-55-019 |
| CL-55-020 | CL-55-020 |
| CL-55-021 | CL-55-021 |
