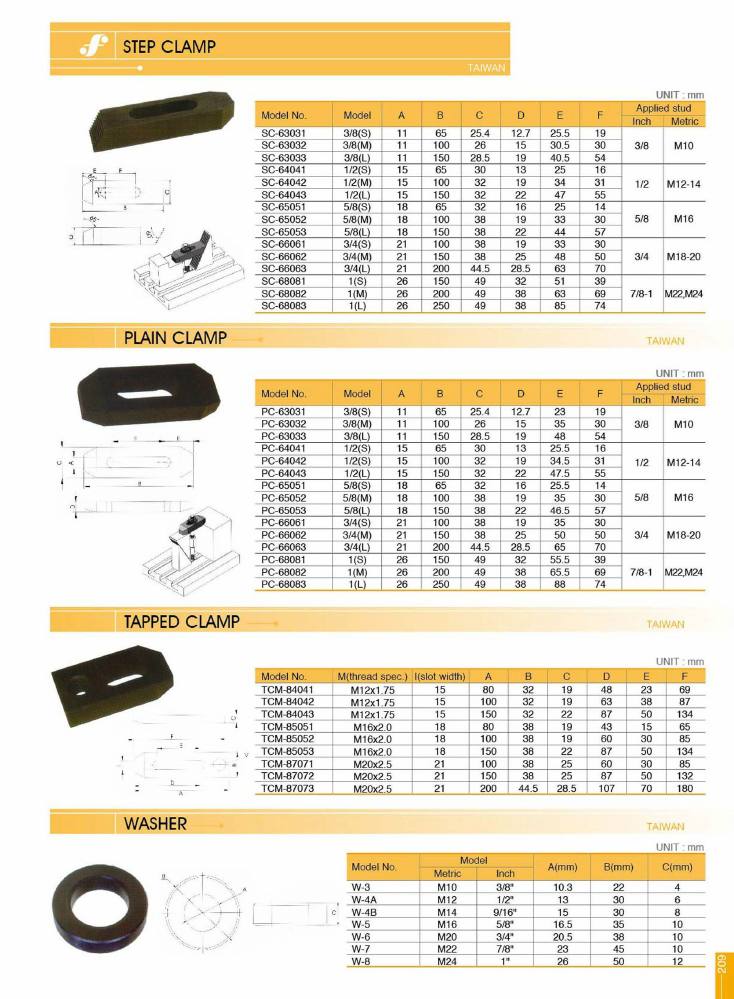

Frejoth accessory catalogue · Page 212

STEP CLAMP

Models on this page

PC-63031PC-63032PC-63033PC-64041PC-64042PC-64043PC-65051PC-65052PC-65053PC-66061PC-66062PC-66063PC-68081PC-68082PC-68083SC-63031SC-63032SC-63033SC-64041SC-64042SC-64043SC-65051SC-65052SC-65053SC-66061SC-66062SC-66063SC-68081SC-68082SC-68083TCM-84041TCM-84042TCM-84043TCM-85051TCM-85052TCM-85053TCM-87071TCM-87072TCM-87073W-3W-4AW-4BW-5W-6W-7W-8

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

STEP CLAMP

SC · Taiwan

dimensions (mm)
model_no	model	a	b	c	d	e	f	applied_stud_inch	applied_stud_metric
SC-63031	3/8(S)	11	65	25.4	12.7	25.5	19	3/8	M10
SC-63032	3/8(M)	11	100	26	15	30.5	30	3/8	M10
SC-63033	3/8(L)	11	150	28.5	19	40.5	54	3/8	M10
SC-64041	1/2(S)	15	65	30	13	25	16	1/2	M12-14
SC-64042	1/2(M)	15	100	32	19	34	31	1/2	M12-14
SC-64043	1/2(L)	15	150	32	22	47	55	1/2	M12-14
SC-65051	5/8(S)	18	65	32	16	25	14	5/8	M16
SC-65052	5/8(M)	18	100	38	19	33	30	5/8	M16
SC-65053	5/8(L)	18	150	38	22	44	57	5/8	M16
SC-66061	3/4(S)	21	100	38	19	33	30	3/4	M18-20
SC-66062	3/4(M)	21	150	38	25	48	50	3/4	M18-20
SC-66063	3/4(L)	21	200	44.5	28.5	63	70	3/4	M18-20
SC-68081	1(S)	26	150	49	32	51	39	7/8-1	M22,M24
SC-68082	1(M)	26	200	49	38	63	69	7/8-1	M22,M24
SC-68083	1(L)	26	250	49	38	85	74	7/8-1	M22,M24

Order references
Code	Model
on request	SC-63031
on request	SC-63032
on request	SC-63033
on request	SC-64041
on request	SC-64042
on request	SC-64043
on request	SC-65051
on request	SC-65052
on request	SC-65053
on request	SC-66061
on request	SC-66062
on request	SC-66063
on request	SC-68081
on request	SC-68082
on request	SC-68083

PLAIN CLAMP

PC · Taiwan

dimensions (mm)
model_no	model	a	b	c	d	e	f	applied_stud_inch	applied_stud_metric
PC-63031	3/8(S)	11	65	25.4	12.7	23	19	3/8	M10
PC-63032	3/8(M)	11	100	26	15	35	30	3/8	M10
PC-63033	3/8(L)	11	150	28.5	19	48	54	3/8	M10
PC-64041	1/2(S)	15	65	30	13	25.5	16	1/2	M12-14
PC-64042	1/2(S)	15	100	32	19	34.5	31	1/2	M12-14
PC-64043	1/2(L)	15	150	32	22	47.5	55	1/2	M12-14
PC-65051	5/8(S)	18	65	32	16	25.5	14	5/8	M16
PC-65052	5/8(M)	18	100	38	19	35	30	5/8	M16
PC-65053	5/8(L)	18	150	38	22	46.5	57	5/8	M16
PC-66061	3/4(S)	21	100	38	19	35	30	3/4	M18-20
PC-66062	3/4(M)	21	150	38	25	50	50	3/4	M18-20
PC-66063	3/4(L)	21	200	44.5	28.5	65	70	3/4	M18-20
PC-68081	1(S)	26	150	49	32	55.5	39	7/8-1	M22,M24
PC-68082	1(M)	26	200	49	38	65.5	69	7/8-1	M22,M24
PC-68083	1(L)	26	250	49	38	88	74	7/8-1	M22,M24

Order references
Code	Model
on request	PC-63031
on request	PC-63032
on request	PC-63033
on request	PC-64041
on request	PC-64042
on request	PC-64043
on request	PC-65051
on request	PC-65052
on request	PC-65053
on request	PC-66061
on request	PC-66062
on request	PC-66063
on request	PC-68081
on request	PC-68082
on request	PC-68083

TAPPED CLAMP

TCM · Taiwan

dimensions (mm)
model_no	m_thread_spec	i_slot_width	a	b	c	d	e	f
TCM-84041	M12x1.75	15	80	32	19	48	23	69
TCM-84042	M12x1.75	15	100	32	19	63	38	87
TCM-84043	M12x1.75	15	150	32	22	87	50	134
TCM-85051	M16x2.0	18	80	38	19	43	15	65
TCM-85052	M16x2.0	18	100	38	19	60	30	85
TCM-85053	M16x2.0	18	150	38	22	87	50	134
TCM-87071	M20x2.5	21	100	38	25	60	30	85
TCM-87072	M20x2.5	21	150	38	25	87	50	132
TCM-87073	M20x2.5	21	200	44.5	28.5	107	70	180

Order references
Code	Model
on request	TCM-84041
on request	TCM-84042
on request	TCM-84043
on request	TCM-85051
on request	TCM-85052
on request	TCM-85053
on request	TCM-87071
on request	TCM-87072
on request	TCM-87073

WASHER

W · Taiwan

dimensions (mm)
model_no	model_metric	model_inch	a_mm	b_mm	c_mm
W-3	M10	3/8"	10.3	22	4
W-4A	M12	1/2"	13	30	6
W-4B	M14	9/16"	15	30	8
W-5	M16	5/8"	16.5	35	10
W-6	M20	3/4"	20.5	38	10
W-7	M22	7/8"	23	45	10
W-8	M24	1"	26	50	12

Order references
Code	Model
on request	W-3
on request	W-4A
on request	W-4B
on request	W-5
on request	W-6
on request	W-7
on request	W-8
