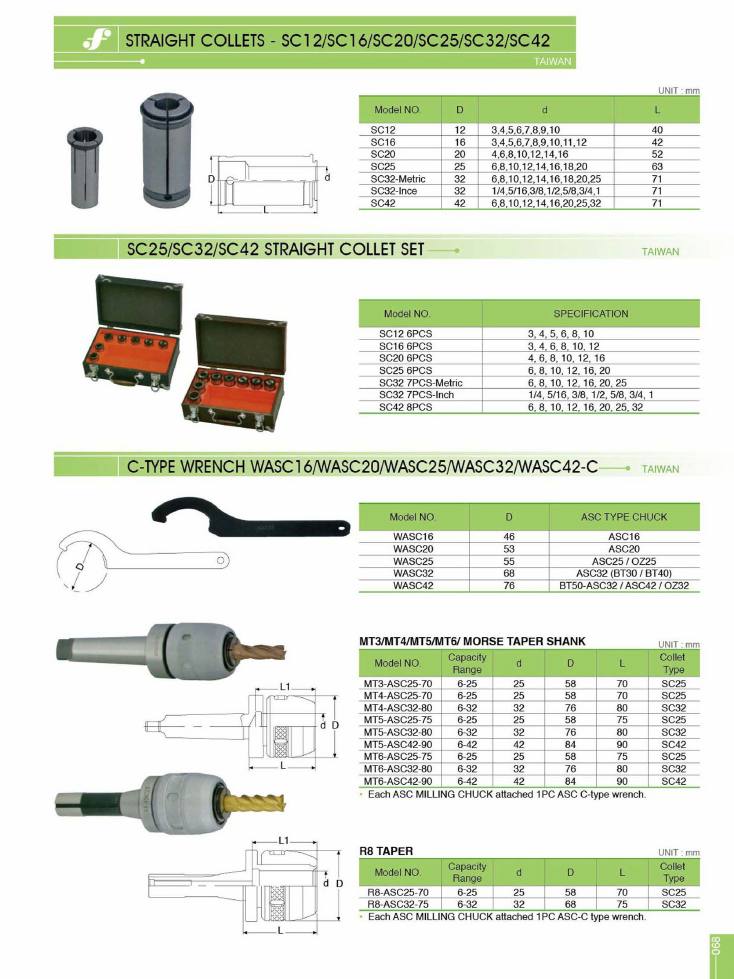

Frejoth accessory catalogue · Page 68

Straight collets / collet sets / C-type wrench / ASC milling chuck

Models on this page

MT3-ASC25-70MT4-ASC25-70MT4-ASC32-80MT5-ASC25-75MT5-ASC32-80MT5-ASC42-90MT6-ASC25-75MT6-ASC32-80MT6-ASC42-90R8-ASC25-70R8-ASC32-75SC12SC12 6PCSSC16SC16 6PCSSC20SC20 6PCSSC25SC25 6PCSSC32 7PCS-InchSC32 7PCS-MetricSC32-InceSC32-MetricSC42SC42 8PCSWASC16WASC20WASC25WASC32WASC42

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Straight Collets - SC12/SC16/SC20/SC25/SC32/SC42

SC · Taiwan

sc_collet_dimensions (mm)
model_no	D	d	L
SC12	12	3,4,5,6,7,8,9,10	40
SC16	16	3,4,5,6,7,8,9,10,11,12	42
SC20	20	4,6,8,10,12,14,16	52
SC25	25	6,8,10,12,14,16,18,20	63
SC32-Metric	32	6,8,10,12,14,16,18,20,25	71
SC32-Ince	32	1/4,5/16,3/8,1/2,5/8,3/4,1	71
SC42	42	6,8,10,12,14,16,20,25,32	71

Order references
Code	Model
on request	SC12
on request	SC16
on request	SC20
on request	SC25
on request	SC32-Metric
on request	SC32-Ince
on request	SC42

SC25/SC32/SC42 Straight Collet Set

SC · Taiwan

sc_collet_sets (mm)
model_no	specification
SC12 6PCS	3, 4, 5, 6, 8, 10
SC16 6PCS	3, 4, 6, 8, 10, 12
SC20 6PCS	4, 6, 8, 10, 12, 16
SC25 6PCS	6, 8, 10, 12, 16, 20
SC32 7PCS-Metric	6, 8, 10, 12, 16, 20, 25
SC32 7PCS-Inch	1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1
SC42 8PCS	6, 8, 10, 12, 16, 20, 25, 32

Order references
Code	Model
on request	SC12 6PCS
on request	SC16 6PCS
on request	SC20 6PCS
on request	SC25 6PCS
on request	SC32 7PCS-Metric
on request	SC32 7PCS-Inch
on request	SC42 8PCS

C-Type Wrench WASC16/WASC20/WASC25/WASC32/WASC42-C

WASC · Taiwan

wasc_wrench (mm)
model_no	D	asc_type_chuck
WASC16	46	ASC16
WASC20	53	ASC20
WASC25	55	ASC25 / OZ25
WASC32	68	ASC32 (BT30 / BT40)
WASC42	76	BT50-ASC32 / ASC42 / OZ32

Order references
Code	Model
on request	WASC16
on request	WASC20
on request	WASC25
on request	WASC32
on request	WASC42

Milling Chuck-ASC MT3/MT4/MT5/MT6 Morse Taper Shank

ASC · Taiwan

mt_asc_dimensions (mm)
model_no	capacity_range	d	D	L	collet_type
MT3-ASC25-70	6-25	25	58	70	SC25
MT4-ASC25-70	6-25	25	58	70	SC25
MT4-ASC32-80	6-32	32	76	80	SC32
MT5-ASC25-75	6-25	25	58	75	SC25
MT5-ASC32-80	6-32	32	76	80	SC32
MT5-ASC42-90	6-42	42	84	90	SC42
MT6-ASC25-75	6-25	25	58	75	SC25
MT6-ASC32-80	6-32	32	76	80	SC32
MT6-ASC42-90	6-42	42	84	90	SC42

Order references
Code	Model
on request	MT3-ASC25-70
on request	MT4-ASC25-70
on request	MT4-ASC32-80
on request	MT5-ASC25-75
on request	MT5-ASC32-80
on request	MT5-ASC42-90
on request	MT6-ASC25-75
on request	MT6-ASC32-80
on request	MT6-ASC42-90

Each ASC MILLING CHUCK attached 1PC ASC C-type wrench.

Milling Chuck-ASC R8 Taper
