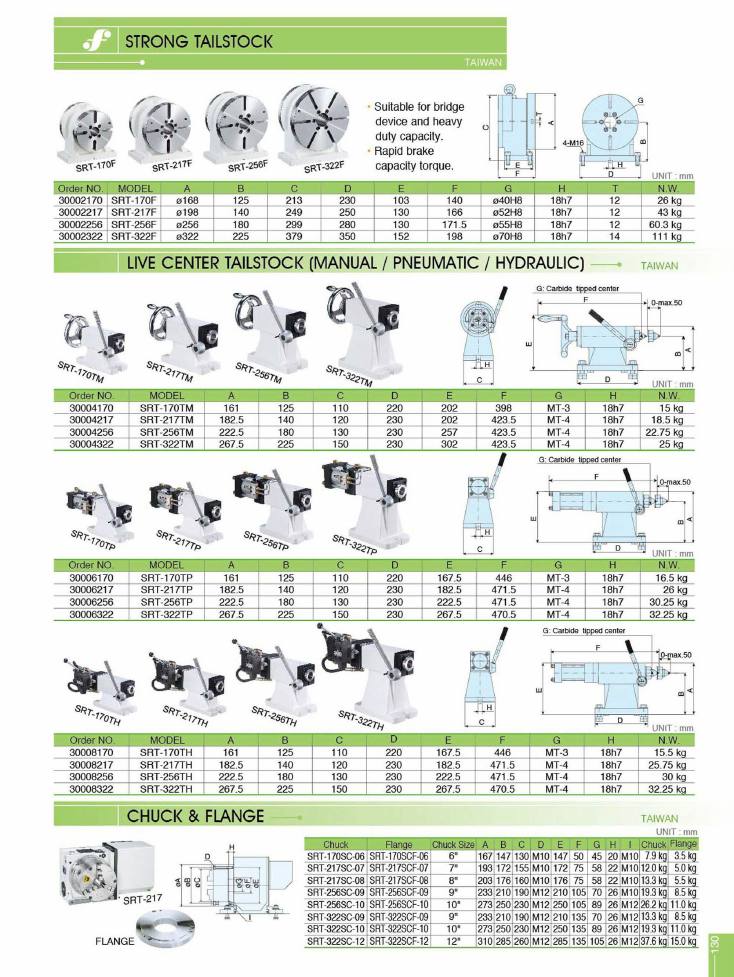

Frejoth accessory catalogue · Page 130

Strong Tailstock / Live Center Tailstock (Manual / Pneumatic / Hydraulic) / Chuck & Flange

Models on this page

SRT-170FSRT-170SC-06SRT-170THSRT-170TMSRT-170TPSRT-217FSRT-217SC-07SRT-217SC-08SRT-217THSRT-217TMSRT-217TPSRT-256FSRT-256SC-09SRT-256SC-10SRT-256THSRT-256TMSRT-256TPSRT-322FSRT-322SC-09SRT-322SC-10SRT-322SC-12SRT-322THSRT-322TMSRT-322TP

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Strong Tailstock

SRT-F · Taiwan

Suitable for bridge device and heavy duty capacity.
Rapid brake capacity torque.

dimensions (mm)
order_no	model	A	B	C	D	E	F	G	H	T	n_w
30002170	SRT-170F	ø168	125	213	230	103	140	ø40H8	18h7	12	26 kg
30002217	SRT-217F	ø198	140	249	250	130	166	ø52H8	18h7	12	43 kg
30002256	SRT-256F	ø256	180	299	280	130	171.5	ø55H8	18h7	12	60.3 kg
30002322	SRT-322F	ø322	225	379	350	152	198	ø70H8	18h7	14	111 kg

Order references
Code	Model
30002170	SRT-170F
30002217	SRT-217F
30002256	SRT-256F
30002322	SRT-322F

Mounting diagram shows 4-M16 fixing holes.

Live Center Tailstock (Manual / Pneumatic / Hydraulic)

SRT-TM / SRT-TP / SRT-TH · Taiwan

manual_dimensions (mm)
order_no	model	A	B	C	D	E	F	G	H	n_w
30004170	SRT-170TM	161	125	110	220	202	398	MT-3	18h7	15 kg
30004217	SRT-217TM	182.5	140	120	230	202	423.5	MT-4	18h7	18.5 kg
30004256	SRT-256TM	222.5	180	130	230	257	423.5	MT-4	18h7	22.75 kg
30004322	SRT-322TM	267.5	225	150	230	302	423.5	MT-4	18h7	25 kg

pneumatic_dimensions (mm)
order_no	model	A	B	C	D	E	F	G	H	n_w
30006170	SRT-170TP	161	125	110	220	167.5	446	MT-3	18h7	16.5 kg
30006217	SRT-217TP	182.5	140	120	230	182.5	471.5	MT-4	18h7	26 kg
30006256	SRT-256TP	222.5	180	130	230	222.5	471.5	MT-4	18h7	30.25 kg
30006322	SRT-322TP	267.5	225	150	230	267.5	470.5	MT-4	18h7	32.25 kg

hydraulic_dimensions (mm)
order_no	model	A	B	C	D	E	F	G	H	n_w
30008170	SRT-170TH	161	125	110	220	167.5	446	MT-3	18h7	15.5 kg
30008217	SRT-217TH	182.5	140	120	230	182.5	471.5	MT-4	18h7	25.75 kg
30008256	SRT-256TH	222.5	180	130	230	222.5	471.5	MT-4	18h7	30 kg
30008322	SRT-322TH	267.5	225	150	230	267.5	470.5	MT-4	18h7	32.25 kg

Order references
Code	Model
30006170	SRT-170TP
30006217	SRT-217TP
30006256	SRT-256TP
30006322	SRT-322TP
30008170	SRT-170TH
30008217	SRT-217TH
30008256	SRT-256TH
30008322	SRT-322TH

G column is the carbide tipped centre taper. Quill stroke shown on the drawings as 0-max.50.

Chuck & Flange

Taiwan

chuck_and_flange (mm)
chuck	flange	chuck_size	A	B	C	D	E	F	G	H	I	chuck_weight	flange_weight
SRT-170SC-06	SRT-170SCF-06	6"	167	147	130	M10	147	50	45	20	M10	7.9 kg	3.5 kg
SRT-217SC-07	SRT-217SCF-07	7"	193	172	155	M10	172	75	58	22	M10	12.0 kg	5.0 kg
SRT-217SC-08	SRT-217SCF-08	8"	203	176	160	M10	176	75	58	22	M10	13.3 kg	5.5 kg
SRT-256SC-09	SRT-256SCF-09	9"	233	210	190	M12	210	105	70	26	M10	19.3 kg	8.5 kg
SRT-256SC-10	SRT-256SCF-10	10"	273	250	230	M12	250	105	89	26	M12	26.2 kg	11.0 kg
SRT-322SC-09	SRT-322SCF-09	9"	233	210	190	M12	210	135	70	26	M12	13.3 kg	8.5 kg
SRT-322SC-10	SRT-322SCF-10	10"	273	250	230	M12	250	135	89	26	M12	19.3 kg	11.0 kg
SRT-322SC-12	SRT-322SCF-12	12"	310	285	260	M12	285	135	105	26	M12	37.6 kg	15.0 kg

Order references
Code	Model
on request	SRT-170SC-06
on request	SRT-217SC-07
on request	SRT-217SC-08
on request	SRT-256SC-09
on request	SRT-256SC-10
on request	SRT-322SC-09
on request	SRT-322SC-10
on request	SRT-322SC-12

Chucks and matching flanges for SRT tailstocks. Illustration shows SRT-217 with flange.

Live Center Tailstock (Manual)

Order references
Code	Model
30004170	SRT-170TM
30004217	SRT-217TM
30004256	SRT-256TM
30004322	SRT-322TM
