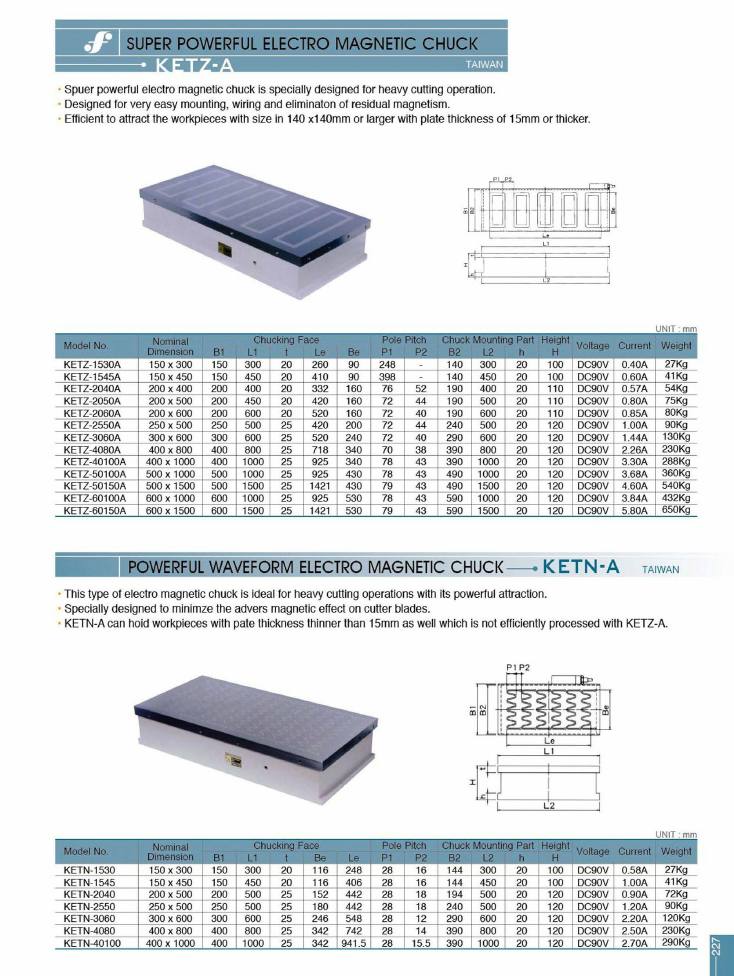

Frejoth accessory catalogue · Page 230

SUPER POWERFUL ELECTRO MAGNETIC CHUCK

Models on this page

KETN-1530KETN-1545KETN-2040KETN-2550KETN-3060KETN-40100KETN-4080KETZ-1530AKETZ-1545AKETZ-2040AKETZ-2050AKETZ-2060AKETZ-2550AKETZ-3060AKETZ-40100AKETZ-4080AKETZ-50100AKETZ-50150AKETZ-60100AKETZ-60150A

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

SUPER POWERFUL ELECTRO MAGNETIC CHUCK

KETZ-A · TAIWAN

Spuer powerful electro magnetic chuck is specially designed for heavy cutting operation.
Designed for very easy mounting, wiring and eliminaton of residual magnetism.
Efficient to attract the workpieces with size in 140 x140mm or larger with plate thickness of 15mm or thicker.

specifications (mm)
model_no	nominal_dimension	b1	l1	t	le	be	p1	p2	b2	l2	h	height_h	voltage	current	weight
KETZ-1530A	150 x 300	150	300	20	260	90	248	-	140	300	20	100	DC90V	0.40A	27Kg
KETZ-1545A	150 x 450	150	450	20	410	90	398	-	140	450	20	100	DC90V	0.60A	41Kg
KETZ-2040A	200 x 400	200	400	20	332	160	76	52	190	400	20	110	DC90V	0.57A	54Kg
KETZ-2050A	200 x 500	200	450	20	420	160	72	44	190	500	20	110	DC90V	0.80A	75Kg
KETZ-2060A	200 x 600	200	600	20	520	160	72	40	190	600	20	110	DC90V	0.85A	80Kg
KETZ-2550A	250 x 500	250	500	25	420	200	72	44	240	500	20	120	DC90V	1.00A	90Kg
KETZ-3060A	300 x 600	300	600	25	520	240	72	40	290	600	20	120	DC90V	1.44A	130Kg
KETZ-4080A	400 x 800	400	800	25	718	340	70	38	390	800	20	120	DC90V	2.26A	230Kg
KETZ-40100A	400 x 1000	400	1000	25	925	340	78	43	390	1000	20	120	DC90V	3.30A	288Kg
KETZ-50100A	500 x 1000	500	1000	25	925	430	78	43	490	1000	20	120	DC90V	3.68A	360Kg
KETZ-50150A	500 x 1500	500	1500	25	1421	430	79	43	490	1500	20	120	DC90V	4.60A	540Kg
KETZ-60100A	600 x 1000	600	1000	25	925	530	78	43	590	1000	20	120	DC90V	3.84A	432Kg
KETZ-60150A	600 x 1500	600	1500	25	1421	530	79	43	590	1500	20	120	DC90V	5.80A	650Kg

Order references
Code	Model
on request	KETZ-1530A
on request	KETZ-1545A
on request	KETZ-2040A
on request	KETZ-2050A
on request	KETZ-2060A
on request	KETZ-2550A
on request	KETZ-3060A
on request	KETZ-4080A
on request	KETZ-40100A
on request	KETZ-50100A
on request	KETZ-50150A
on request	KETZ-60100A
on request	KETZ-60150A

POWERFUL WAVEFORM ELECTRO MAGNETIC CHUCK

KETN-A · TAIWAN

This type of electro magnetic chuck is ideal for heavy cutting operations with its powerful attraction.
Specially designed to minimze the advers magnetic effect on cutter blades.
KETN-A can hoid workpieces with pate thickness thinner than 15mm as well which is not efficiently processed with KETZ-A.

specifications (mm)
model_no	nominal_dimension	b1	l1	t	be	le	p1	p2	b2	l2	h	height_h	voltage	current	weight
KETN-1530	150 x 300	150	300	20	116	248	28	16	144	300	20	100	DC90V	0.58A	27Kg
KETN-1545	150 x 450	150	450	20	116	406	28	16	144	450	20	100	DC90V	1.00A	41Kg
KETN-2040	200 x 500	200	500	25	152	442	28	18	194	500	20	120	DC90V	0.90A	72Kg
KETN-2550	250 x 500	250	500	25	180	442	28	18	240	500	20	120	DC90V	1.20A	90Kg
KETN-3060	300 x 600	300	600	25	246	548	28	12	290	600	20	120	DC90V	2.20A	120Kg
KETN-4080	400 x 800	400	800	25	342	742	28	14	390	800	20	120	DC90V	2.50A	230Kg
KETN-40100	400 x 1000	400	1000	25	342	941.5	28	15.5	390	1000	20	120	DC90V	2.70A	290Kg

Order references
Code	Model
on request	KETN-1530
on request	KETN-1545
on request	KETN-2040
on request	KETN-2550
on request	KETN-3060
on request	KETN-4080
on request	KETN-40100
