T-NUTS & STUD SETS - 38 PCS ASSEMBLY

Models on this page

CK-3-1031WCK-3-1032WCK-3-1033WCK-3-104A(1/2-121)WCK-3-104A(1/2-122)WCK-3-104A(1/2-123)WCK-3-104A(1/2-131)WCK-3-104A(1/2-132)WCK-3-104A(1/2-133)WCK-3-105A1WCK-3-105A2WCK-3-105A3WCK-3-1061WCK-3-1062WCK-3-1063WCK-3-10WCK-3-12A1WCK-3-12A2WCK-3-14WCK-3-16WCK-3-18WCK-3-20WCK-3-8W

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

T-NUTS & STUD SETS - 38 PCS ASSEMBLY

Taiwan

packing_contents
item	quantity
Packing	38-PC set (wooden tray)
Stud	24 pcs
T-slot nut	6 pcs
Flange nut	4 pcs
Coupling nut	4 pcs

metric_size_38pc_set (mm)
model_no_of_metric_size_38_pc_set	a	b_mm	c_mm	d_mm	e_mm	f_mm	packing
CK-3-8W	M8x1.25	9.7	12	6	16	20	Wooden tray
CK-3-10W	M10x1.5	11.5	12	6.8	17.5	22	Wooden tray
CK-3-12A1W	M12x1.75	13.8	15.9	8	22	28	Wooden tray
CK-3-12A2W	M12x1.75	15.5	16	8	25	28	Wooden tray
CK-3-14W	M14x2.0	15.5	16	8	25	28	Wooden tray
CK-3-16W	M16x2.0	17.5	19	11	28	31	Wooden tray
CK-3-18W	M18x2.5	19.5	24	12	32	38	Wooden tray
CK-3-20W	M20x2.5	21.7	28	14	35	38	Wooden tray

inch_size_38pc_set (mm)
model_no_of_inch_size_38_pc_set	a	b_mm	c_mm	d_mm	e_mm	f_mm	packing
CK-3-1031W	3/8"-16	10.8	12	5.5	17.5	22	Wooden tray
CK-3-1032W	3/8"-16	11.5	12	6.8	22	22	Wooden tray
CK-3-1033W	3/8"-16	13.8	15.9	8	22	28	Wooden tray
CK-3-104A(1/2-121)W	1/2"-12	13.8	15.9	8	22	28	Wooden tray
CK-3-104A(1/2-122)W	1/2"-12	15.5	16	8	25	28	Wooden tray
CK-3-104A(1/2-123)W	1/2"-12	17.5	19	11	28	31	Wooden tray
CK-3-104A(1/2-131)W	1/2"-13UNC	13.8	15.9	8	22	28	Wooden tray
CK-3-104A(1/2-132)W	1/2"-13UNC	15.5	16	8	25	28	Wooden tray
CK-3-104A(1/2-133)W	1/2"-13UNC	17.5	19	11	28	31	Wooden tray
CK-3-105A1W	5/8"-11	17.5	19	11	28	31	Wooden tray
CK-3-105A2W	5/8"-11	18.6	19	12	31.8	31	Wooden tray
CK-3-105A3W	5/8"-11	20.2	25	14	32	38	Wooden tray
CK-3-1061W	3/4"-10	20.2	25	14	32	38	Wooden tray
CK-3-1062W	3/4"-10	21.7	28	14	35	38	Wooden tray
CK-3-1063W	3/4"-10	25	25	15.5	40	44.5	Wooden tray

Order references
Code	Model
on request	CK-3-8W
on request	CK-3-10W
on request	CK-3-12A1W
on request	CK-3-12A2W
on request	CK-3-14W
on request	CK-3-16W
on request	CK-3-18W
on request	CK-3-20W
on request	CK-3-1031W
on request	CK-3-1032W
on request	CK-3-1033W
on request	CK-3-104A(1/2-121)W
on request	CK-3-104A(1/2-122)W
on request	CK-3-104A(1/2-123)W
on request	CK-3-104A(1/2-131)W
on request	CK-3-104A(1/2-132)W
on request	CK-3-104A(1/2-133)W
on request	CK-3-105A1W
on request	CK-3-105A2W
on request	CK-3-105A3W
on request	CK-3-1061W
on request	CK-3-1062W
on request	CK-3-1063W

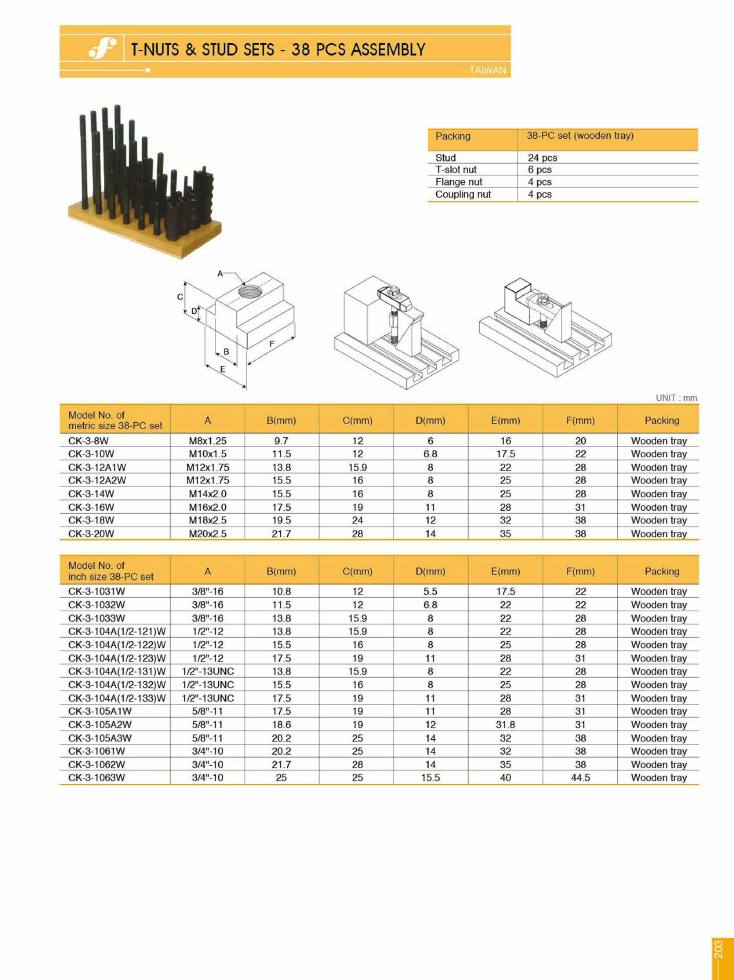

38-PC set supplied in a wooden tray. Dimension drawing letters A (thread), B, C, D, E, F refer to the T-slot nut.
