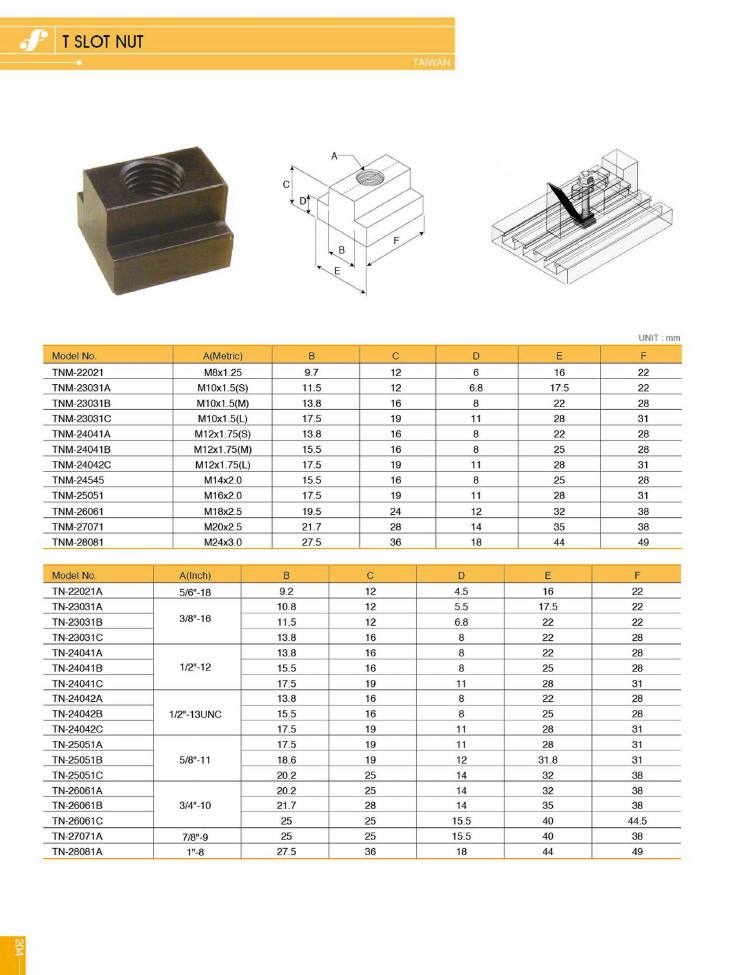

Frejoth accessory catalogue · Page 204
T slot nut
Models on this page
TN-22021ATN-23031ATN-23031BTN-23031CTN-24041ATN-24041BTN-24041CTN-24042ATN-24042BTN-24042CTN-25051ATN-25051BTN-25051CTN-26061ATN-26061BTN-26061CTN-27071ATN-28081ATNM-22021TNM-23031ATNM-23031BTNM-23031CTNM-24041ATNM-24041BTNM-24042CTNM-24545TNM-25051TNM-26061TNM-27071TNM-28081
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
T Slot Nut
TNM / TN · Taiwan
| model_no | a_metric | B | C | D | E | F |
|---|---|---|---|---|---|---|
| TNM-22021 | M8x1.25 | 9.7 | 12 | 6 | 16 | 22 |
| TNM-23031A | M10x1.5(S) | 11.5 | 12 | 6.8 | 17.5 | 22 |
| TNM-23031B | M10x1.5(M) | 13.8 | 16 | 8 | 22 | 28 |
| TNM-23031C | M10x1.5(L) | 17.5 | 19 | 11 | 28 | 31 |
| TNM-24041A | M12x1.75(S) | 13.8 | 16 | 8 | 22 | 28 |
| TNM-24041B | M12x1.75(M) | 15.5 | 16 | 8 | 25 | 28 |
| TNM-24042C | M12x1.75(L) | 17.5 | 19 | 11 | 28 | 31 |
| TNM-24545 | M14x2.0 | 15.5 | 16 | 8 | 25 | 28 |
| TNM-25051 | M16x2.0 | 17.5 | 19 | 11 | 28 | 31 |
| TNM-26061 | M18x2.5 | 19.5 | 24 | 12 | 32 | 38 |
| TNM-27071 | M20x2.5 | 21.7 | 28 | 14 | 35 | 38 |
| TNM-28081 | M24x3.0 | 27.5 | 36 | 18 | 44 | 49 |
| model_no | a_inch | B | C | D | E | F |
|---|---|---|---|---|---|---|
| TN-22021A | 5/6"-18 | 9.2 | 12 | 4.5 | 16 | 22 |
| TN-23031A | 3/8"-16 | 10.8 | 12 | 5.5 | 17.5 | 22 |
| TN-23031B | 3/8"-16 | 11.5 | 12 | 6.8 | 22 | 22 |
| TN-23031C | 3/8"-16 | 13.8 | 16 | 8 | 22 | 28 |
| TN-24041A | 1/2"-12 | 13.8 | 16 | 8 | 22 | 28 |
| TN-24041B | 1/2"-12 | 15.5 | 16 | 8 | 25 | 28 |
| TN-24041C | 1/2"-12 | 17.5 | 19 | 11 | 28 | 31 |
| TN-24042A | 1/2"-13UNC | 13.8 | 16 | 8 | 22 | 28 |
| TN-24042B | 1/2"-13UNC | 15.5 | 16 | 8 | 25 | 28 |
| TN-24042C | 1/2"-13UNC | 17.5 | 19 | 11 | 28 | 31 |
| TN-25051A | 5/8"-11 | 17.5 | 19 | 11 | 28 | 31 |
| TN-25051B | 5/8"-11 | 18.6 | 19 | 12 | 31.8 | 31 |
| TN-25051C | 5/8"-11 | 20.2 | 25 | 14 | 32 | 38 |
| TN-26061A | 3/4"-10 | 20.2 | 25 | 14 | 32 | 38 |
| TN-26061B | 3/4"-10 | 21.7 | 28 | 14 | 35 | 38 |
| TN-26061C | 3/4"-10 | 25 | 25 | 15.5 | 40 | 44.5 |
| TN-27071A | 7/8"-9 | 25 | 25 | 15.5 | 40 | 38 |
| TN-28081A | 1"-8 | 27.5 | 36 | 18 | 44 | 49 |
| Code | Model |
|---|---|
| on request | TNM-22021 |
| on request | TNM-23031A |
| on request | TNM-23031B |
| on request | TNM-23031C |
| on request | TNM-24041A |
| on request | TNM-24041B |
| on request | TNM-24042C |
| on request | TNM-24545 |
| on request | TNM-25051 |
| on request | TNM-26061 |
| on request | TNM-27071 |
| on request | TNM-28081 |
| on request | TN-22021A |
| on request | TN-23031A |
| on request | TN-23031B |
| on request | TN-23031C |
| on request | TN-24041A |
| on request | TN-24041B |
| on request | TN-24041C |
| on request | TN-24042A |
| on request | TN-24042B |
| on request | TN-24042C |
| on request | TN-25051A |
| on request | TN-25051B |
| on request | TN-25051C |
| on request | TN-26061A |
| on request | TN-26061B |
| on request | TN-26061C |
| on request | TN-27071A |
| on request | TN-28081A |
