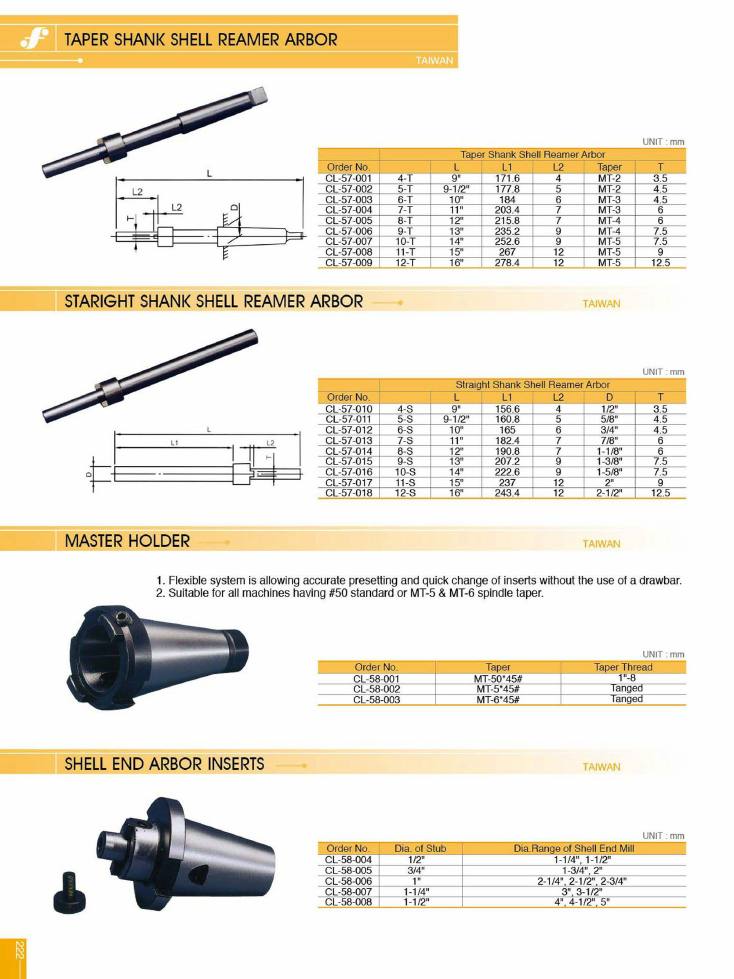

TAPER SHANK SHELL REAMER ARBOR
Models on this page
10-S10-T11-S11-T12-S12-T4-S4-T5-S5-T6-S6-T7-S7-T8-S8-T9-S9-TCL-58-001CL-58-002CL-58-003CL-58-004CL-58-005CL-58-006CL-58-007CL-58-008
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Taper Shank Shell Reamer Arbor
CL-57 · Taiwan
| order_no | size | l | l1 | l2 | taper | t |
|---|---|---|---|---|---|---|
| CL-57-001 | 4-T | 9" | 171.6 | 4 | MT-2 | 3.5 |
| CL-57-002 | 5-T | 9-1/2" | 177.8 | 5 | MT-2 | 4.5 |
| CL-57-003 | 6-T | 10" | 184 | 6 | MT-3 | 4.5 |
| CL-57-004 | 7-T | 11" | 203.4 | 7 | MT-3 | 6 |
| CL-57-005 | 8-T | 12" | 215.8 | 7 | MT-4 | 6 |
| CL-57-006 | 9-T | 13" | 235.2 | 9 | MT-4 | 7.5 |
| CL-57-007 | 10-T | 14" | 252.6 | 9 | MT-5 | 7.5 |
| CL-57-008 | 11-T | 15" | 267 | 12 | MT-5 | 9 |
| CL-57-009 | 12-T | 16" | 278.4 | 12 | MT-5 | 12.5 |
| Code | Model |
|---|---|
| CL-57-001 | 4-T |
| CL-57-002 | 5-T |
| CL-57-003 | 6-T |
| CL-57-004 | 7-T |
| CL-57-005 | 8-T |
| CL-57-006 | 9-T |
| CL-57-007 | 10-T |
| CL-57-008 | 11-T |
| CL-57-009 | 12-T |
Dimension drawing labels L, L1, L2, D and T.
Staright Shank Shell Reamer Arbor
CL-57 · Taiwan
| order_no | size | l | l1 | l2 | d | t |
|---|---|---|---|---|---|---|
| CL-57-010 | 4-S | 9" | 156.6 | 4 | 1/2" | 3.5 |
| CL-57-011 | 5-S | 9-1/2" | 160.8 | 5 | 5/8" | 4.5 |
| CL-57-012 | 6-S | 10" | 165 | 6 | 3/4" | 4.5 |
| CL-57-013 | 7-S | 11" | 182.4 | 7 | 7/8" | 6 |
| CL-57-014 | 8-S | 12" | 190.8 | 7 | 1-1/8" | 6 |
| CL-57-015 | 9-S | 13" | 207.2 | 9 | 1-3/8" | 7.5 |
| CL-57-016 | 10-S | 14" | 222.6 | 9 | 1-5/8" | 7.5 |
| CL-57-017 | 11-S | 15" | 237 | 12 | 2" | 9 |
| CL-57-018 | 12-S | 16" | 243.4 | 12 | 2-1/2" | 12.5 |
| Code | Model |
|---|---|
| CL-57-010 | 4-S |
| CL-57-011 | 5-S |
| CL-57-012 | 6-S |
| CL-57-013 | 7-S |
| CL-57-014 | 8-S |
| CL-57-015 | 9-S |
| CL-57-016 | 10-S |
| CL-57-017 | 11-S |
| CL-57-018 | 12-S |
Heading is printed 'STARIGHT SHANK SHELL REAMER ARBOR'; the table header above the same data reads 'Straight Shank Shell Reamer Arbor'.
Master Holder
CL-58 · Taiwan
- Flexible system is allowing accurate presetting and quick change of inserts without the use of a drawbar.
- Suitable for all machines having #50 standard or MT-5 & MT-6 spindle taper.
| order_no | taper | taper_thread |
|---|---|---|
| CL-58-001 | MT-50*45# | 1"-8 |
| CL-58-002 | MT-5*45# | Tanged |
| CL-58-003 | MT-6*45# | Tanged |
| Code | Model |
|---|---|
| CL-58-001 | CL-58-001 |
| CL-58-002 | CL-58-002 |
| CL-58-003 | CL-58-003 |
Shell End Arbor Inserts
CL-58 · Taiwan
| order_no | dia_of_stub | dia_range_of_shell_end_mill |
|---|---|---|
| CL-58-004 | 1/2" | 1-1/4", 1-1/2" |
| CL-58-005 | 3/4" | 1-3/4", 2" |
| CL-58-006 | 1" | 2-1/4", 2-1/2", 2-3/4" |
| CL-58-007 | 1-1/4" | 3", 3-1/2" |
| CL-58-008 | 1-1/2" | 4", 4-1/2", 5" |
| Code | Model |
|---|---|
| CL-58-004 | CL-58-004 |
| CL-58-005 | CL-58-005 |
| CL-58-006 | CL-58-006 |
| CL-58-007 | CL-58-007 |
| CL-58-008 | CL-58-008 |
