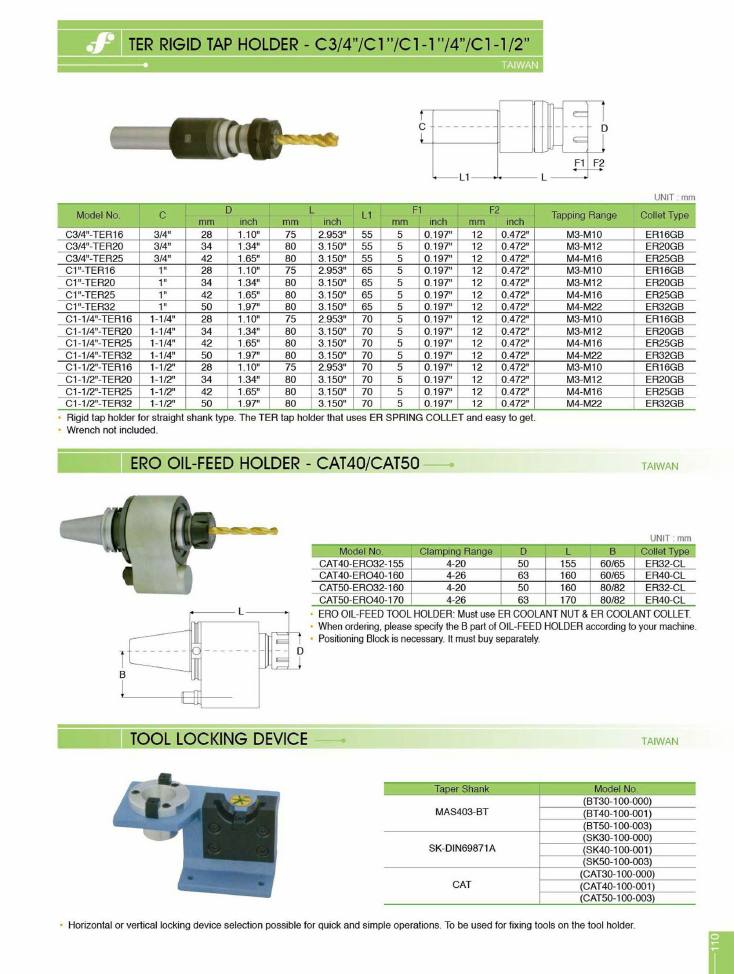

Frejoth accessory catalogue · Page 110

TER Rigid Tap Holder - C3/4"/C1"/C1-1/4"/C1-1/2"

Models on this page

BT30-100-000BT40-100-001BT50-100-003C1-1/2"-TER16C1-1/2"-TER20C1-1/2"-TER25C1-1/2"-TER32C1-1/4"-TER16C1-1/4"-TER20C1-1/4"-TER25C1-1/4"-TER32C1"-TER16C1"-TER20C1"-TER25C1"-TER32C3/4"-TER16C3/4"-TER20C3/4"-TER25CAT30-100-000CAT40-100-001CAT40-ERO32-155CAT40-ERO40-160CAT50-100-003CAT50-ERO32-160CAT50-ERO40-170SK30-100-000SK40-100-001SK50-100-003

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

TER Rigid Tap Holder - C3/4"/C1"/C1-1/4"/C1-1/2"

TER · Taiwan

Rigid tap holder for straight shank type. The TER tap holder that uses ER SPRING COLLET and easy to get.
Wrench not included.

dimensions (mm/inch)
model_no	c	d_mm	d_inch	l_mm	l_inch	l1	f1_mm	f1_inch	f2_mm	f2_inch	tapping_range	collet_type
C3/4"-TER16	3/4"	28	1.10"	75	2.953"	55	5	0.197"	12	0.472"	M3-M10	ER16GB
C3/4"-TER20	3/4"	34	1.34"	80	3.150"	55	5	0.197"	12	0.472"	M3-M12	ER20GB
C3/4"-TER25	3/4"	42	1.65"	80	3.150"	55	5	0.197"	12	0.472"	M4-M16	ER25GB
C1"-TER16	1"	28	1.10"	75	2.953"	65	5	0.197"	12	0.472"	M3-M10	ER16GB
C1"-TER20	1"	34	1.34"	80	3.150"	65	5	0.197"	12	0.472"	M3-M12	ER20GB
C1"-TER25	1"	42	1.65"	80	3.150"	65	5	0.197"	12	0.472"	M4-M16	ER25GB
C1"-TER32	1"	50	1.97"	80	3.150"	65	5	0.197"	12	0.472"	M4-M22	ER32GB
C1-1/4"-TER16	1-1/4"	28	1.10"	75	2.953"	70	5	0.197"	12	0.472"	M3-M10	ER16GB
C1-1/4"-TER20	1-1/4"	34	1.34"	80	3.150"	70	5	0.197"	12	0.472"	M3-M12	ER20GB
C1-1/4"-TER25	1-1/4"	42	1.65"	80	3.150"	70	5	0.197"	12	0.472"	M4-M16	ER25GB
C1-1/4"-TER32	1-1/4"	50	1.97"	80	3.150"	70	5	0.197"	12	0.472"	M4-M22	ER32GB
C1-1/2"-TER16	1-1/2"	28	1.10"	75	2.953"	70	5	0.197"	12	0.472"	M3-M10	ER16GB
C1-1/2"-TER20	1-1/2"	34	1.34"	80	3.150"	70	5	0.197"	12	0.472"	M3-M12	ER20GB
C1-1/2"-TER25	1-1/2"	42	1.65"	80	3.150"	70	5	0.197"	12	0.472"	M4-M16	ER25GB
C1-1/2"-TER32	1-1/2"	50	1.97"	80	3.150"	70	5	0.197"	12	0.472"	M4-M22	ER32GB

Order references
Code	Model
on request	C3/4"-TER16
on request	C3/4"-TER20
on request	C3/4"-TER25
on request	C1"-TER16
on request	C1"-TER20
on request	C1"-TER25
on request	C1"-TER32
on request	C1-1/4"-TER16
on request	C1-1/4"-TER20
on request	C1-1/4"-TER25
on request	C1-1/4"-TER32
on request	C1-1/2"-TER16
on request	C1-1/2"-TER20
on request	C1-1/2"-TER25
on request	C1-1/2"-TER32

ERO Oil-Feed Holder - CAT40/CAT50

ERO · Taiwan

ERO OIL-FEED TOOL HOLDER: Must use ER COOLANT NUT & ER COOLANT COLLET.
When ordering, please specify the B part of OIL-FEED HOLDER according to your machine.
Positioning Block is necessary. It must buy separately.

dimensions (mm)
model_no	clamping_range	d	l	b	collet_type
CAT40-ERO32-155	4-20	50	155	60/65	ER32-CL
CAT40-ERO40-160	4-26	63	160	60/65	ER40-CL
CAT50-ERO32-160	4-20	50	160	80/82	ER32-CL
CAT50-ERO40-170	4-26	63	170	80/82	ER40-CL

Order references
Code	Model
on request	CAT40-ERO32-155
on request	CAT40-ERO40-160
on request	CAT50-ERO32-160
on request	CAT50-ERO40-170

Tool Locking Device

Taiwan

Horizontal or vertical locking device selection possible for quick and simple operations. To be used for fixing tools on the tool holder.

models
taper_shank	model_no
MAS403-BT	BT30-100-000
MAS403-BT	BT40-100-001
MAS403-BT	BT50-100-003
SK-DIN69871A	SK30-100-000
SK-DIN69871A	SK40-100-001
SK-DIN69871A	SK50-100-003
CAT	CAT30-100-000
CAT	CAT40-100-001
CAT	CAT50-100-003

Order references
Code	Model
on request	BT30-100-000
on request	BT40-100-001
on request	BT50-100-003
on request	SK30-100-000
on request	SK40-100-001
on request	SK50-100-003
on request	CAT30-100-000
on request	CAT40-100-001
on request	CAT50-100-003
